BAG OF PARTS
Your new tiller has been assembled at the
factory with exception of those parts left
unassembled for shipping purposes. To
ensure safe and proper operation of your
tiller all parts and hardware you assemble
must be tightened securely. Use the correct
tools as necessary to insure proper
tightness.

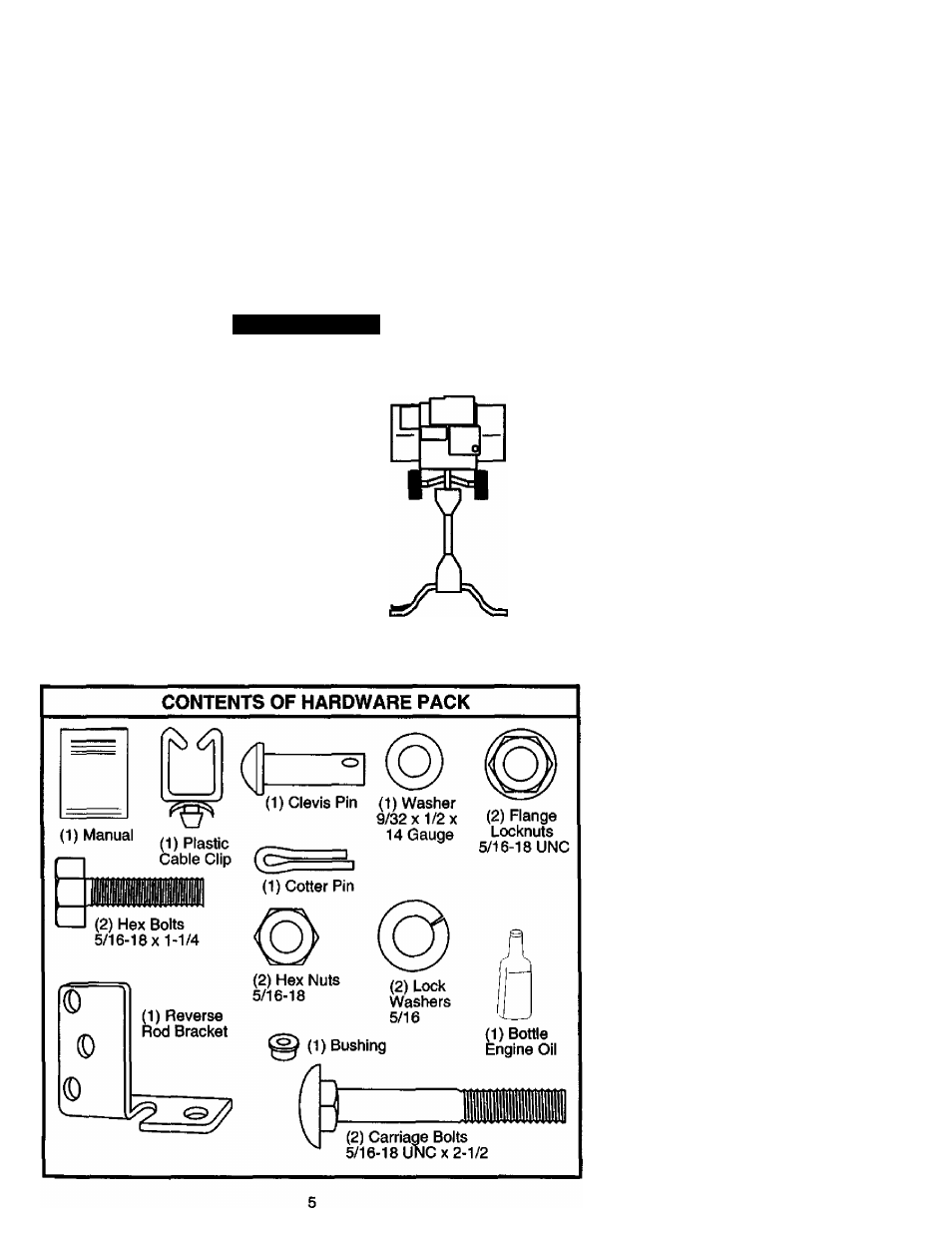

TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly
easier. Standard wrench sizes are listed.
(1) Utility knife
(1) Screwdriver
(1) Pair of pliers
(2) 1/2" wrenches
OPERATOR’S POSITION
When right or left hand is mentioned in this
manual, it means when you are in the
operating position (standing behind tiller
handles).
Front
Left Right
Operator’s Position
