Craftsman 917.292490 - Manual (Page 23)

TILLER - - MODEL NUMBER 917.292490

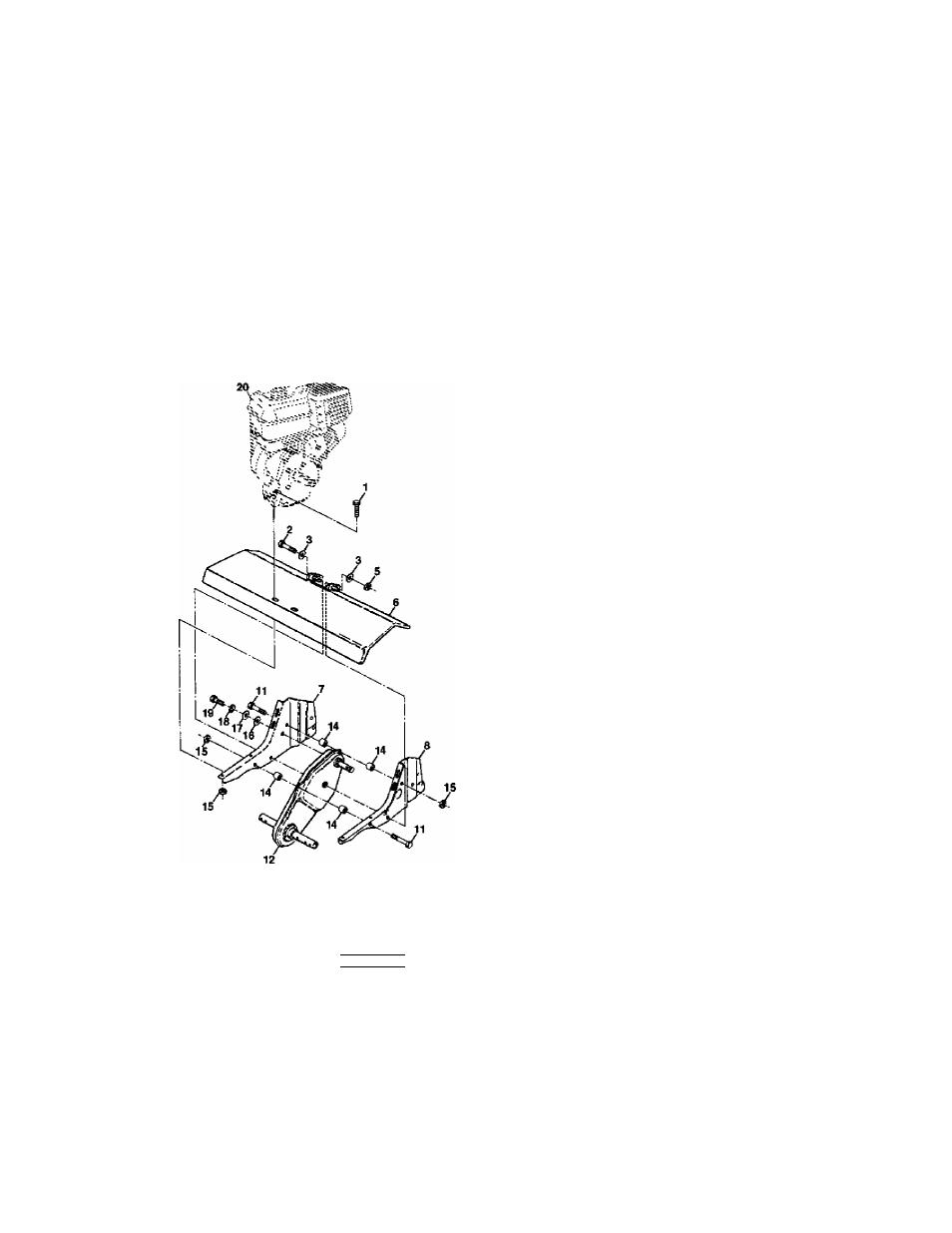

TRANSMISSION
KEY PART KEY PART
NO. NO. DESCRtPTION NO. NO. DESCRIPTION
1 74760524 Boll, Hex 5/16-18
X
1-1/2 Gr. 2 16 19091412 Washer 9/32 x 7/8 x 12 Gauge
2 STO523732 Bolt. Fin, Hex 3/8-16x3-1/4 17 19092016 Washer 9/32 x 1-1/4 x 16 Ga.
3 STD551037 Washer 13/32x13/16x11 18 3TD551125 Washer, Lock 1/4
5 STD541437 Locknut, w/washer 3ffl-l6 19 74610412 Bolt. Hex 1/4-28 x 3/4 Grade 5
6 9057R558 Shield, Tine 20 Engine, (See Breakdown) Briggs
7 165835 Bracket, Engine, R.H. Model No. 110402-0206-E1
8 1948J Bracket, Engine, L.H. NOTE: All componertt dimensions given In U.S.
11 74760544 Bolt, Hex Head 5/16-18 x 2-3/4 inches. 1 Inch = 25.4 mm
12 176112 Transmission
14 9173R Spacer, Split
15 73970500 Nut. Hex. Keps 5/16-18 UNC
