ASSEMBLING TO DUAL ROD DECK
SUSPENSION TRACTORS
[MPORTANT: These instructions are for tractors with
dual mower deck suspension brackets like the examples
shown in figure 2 on this page..
A
CAUTION! Muffler is hot! Allow engine to
cool down before proceeding with bumper
installation.
NOTE: Right hand (RH) and left hand (LH) are
determined from the operator's position while seated on
the tractor.
STEP 1:
• Place cardboard on work surface.
• Identify and lay out all parts and hardware. Not all
hardware will be used. Unused hardware may be
discarded after assembly.
• Remove tractor hood. (Refer to tractor manual.) Place
hood on cardboard or on a mat to protect paint.

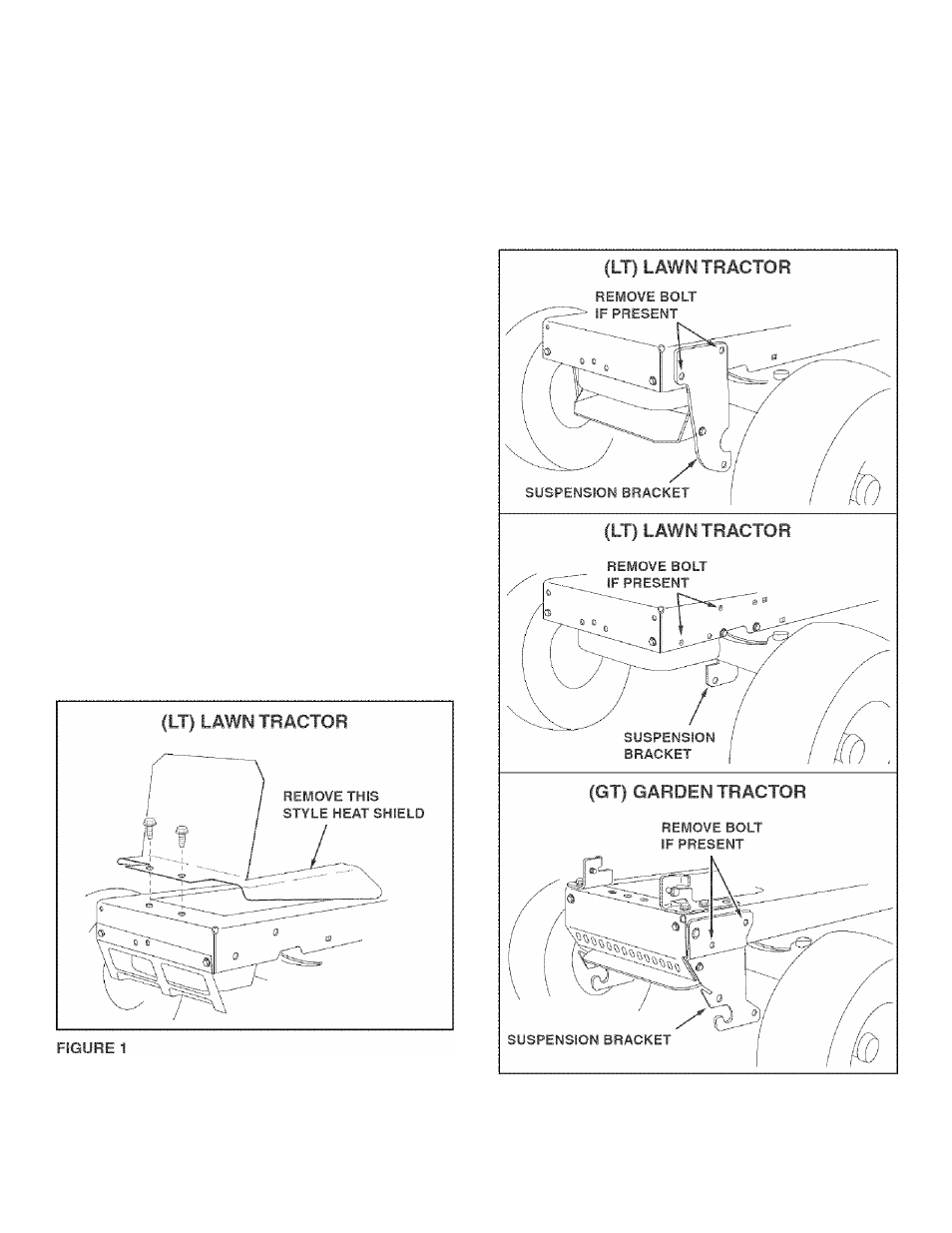

STEP 2: (SEE FIGURE 1)
• If you have an (LT) Lawn Tractor with a heat shield
like the one shown, remove the heat shield.
IMPORTANT: Be sure to re-attach the heat shield after
bumper is installed.
STEP 3:
(SEE FIGURE 2 )
IMPORTANT: Do not remove any bolts from the tractor
frame while the mower deck is raised. Misalignment of
holes in frame could result.
• Lower mower deck to rest on ground.
• Remove bolts from mounting holes on both sides of
tractor frame. Use a mounting bracket to help identify
holes.
FIGURE 2
