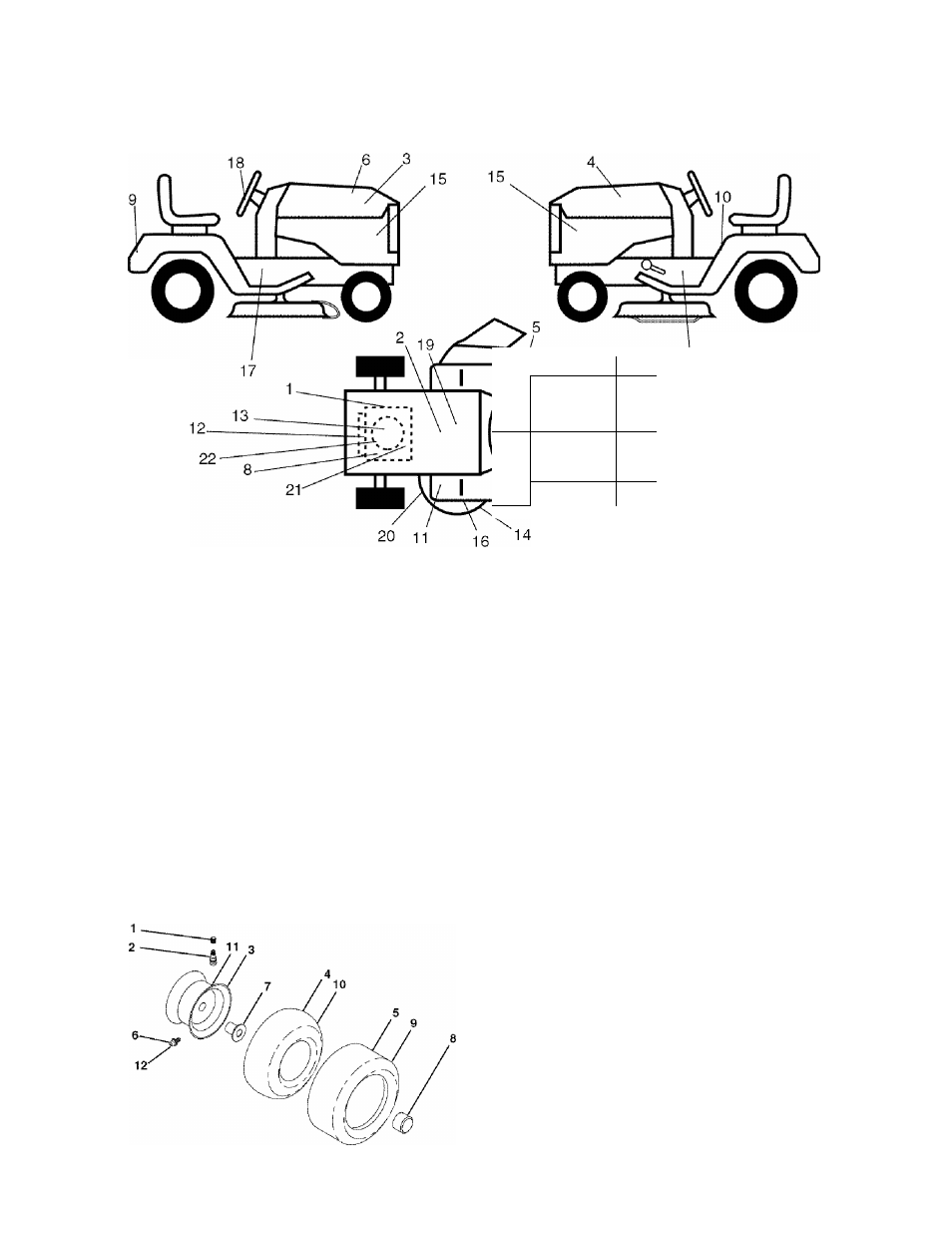

DECALS
TRACTOR - MODEL NUMBER 917.276361
no
fr n
¿lo
y
no
¿LO
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
193599
Decal Dash
15
194026
Decal Hood Side Pnl
2
149516
Decal Battery DNGR/PSN
16
178482
Decal Deck HVYDTY
ENG Asm
17
177665
Decal Chassis
3
194023
Decal Hood RH
18
164065
Decal Insert Strg
4
194024
Decal Hood LH
19
138047
Decal Battery
5
140837
Decal Brake Parking Saddle
20
178455
Decal Deck Caution
6
133644
Decal Maintenance
21
177918
Decal Eng. Sears V-Twin
7
177916
Decal Eng KP Sears RH
22
185980
Decal Engine
8
177917
Decal Eng KP Sears LH
23
106202X
Reflector, Taillight
9
194027
Decal Fender
- -
179768X428 Pad Footrest LH
10
156439
Decal Fender Danger
- -
166960
Decal Drawbar CNTRL
11
181252
Decal FTREST
. .
179769X428 Pad Footrest RH
12
177914
Decal eng Kohl Sears Logo
- -
401186
Owner's Manual, English
13
196310
Decal Replacement
- -
401187
Owner’s Manual, Spanish
14
175291
Decal V-Belf Schem
WHEELS AND TIRES
KEY PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
12
59192
65139
106228X417
8134H
105588X
278H
9040H
104757X428
106230X
7154J
106277X417
6856M
144334
DESCRIPTION
Cap Valve Tire
Stem Valve
Rim Asm Front
Tube, Front (Service Item Only)
Tire, Front
Fitting Grease (Front Wheel Only)
Bearing Flange(Front Wheel Only)
Cap Axle (Front Wheel Only)
Tire Rear
Tube Rear (Service Item Only)
Rim Asm Rear
Fitting Grease
Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
