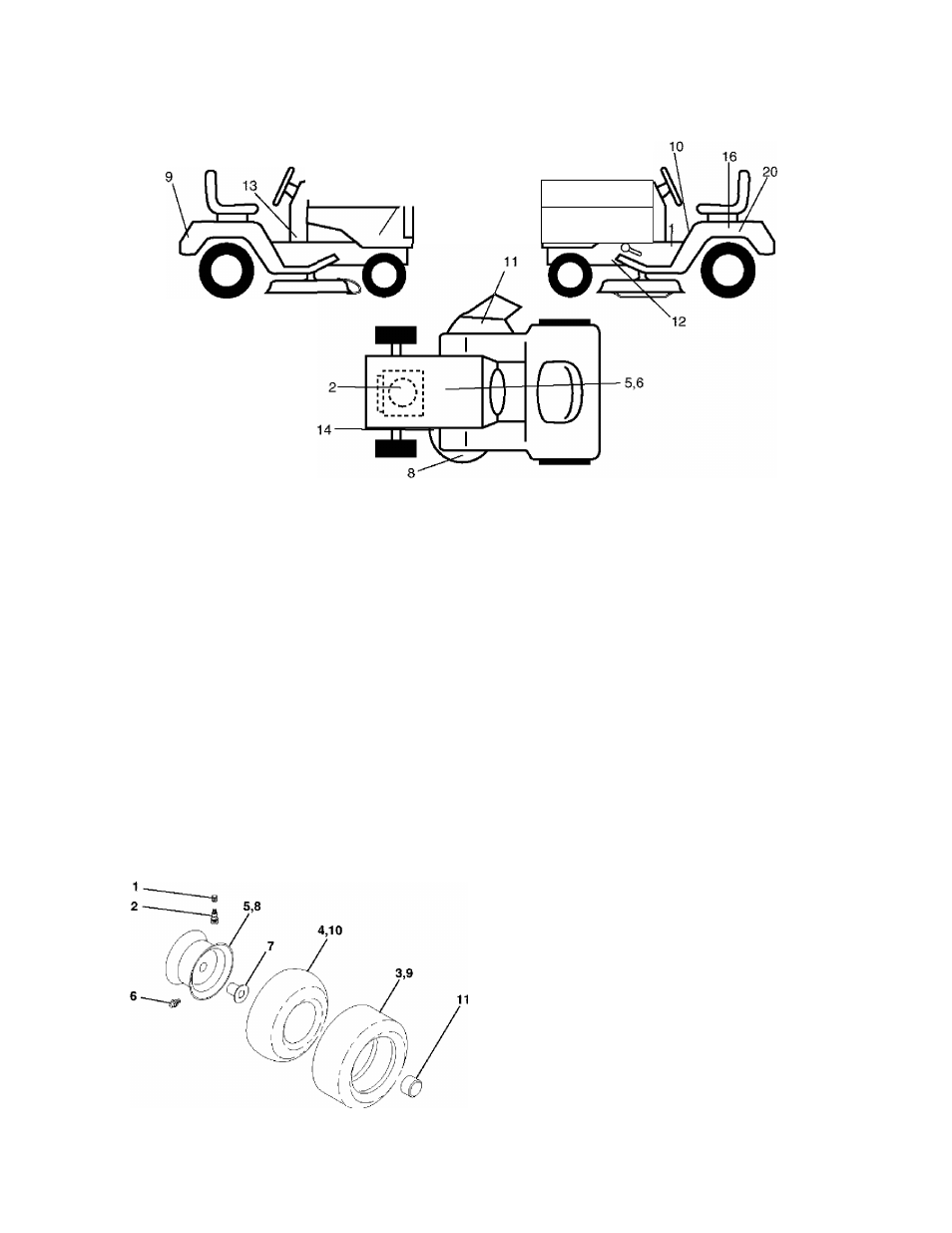

TRACTOR--MODEL NUMBER 917.273392
DECALS
p /
—
\
4 13
\ Y
] \
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 156368 Decal, Oper. Instr. 12 146046 Decal, V-Be!t Drive Schematic
2 189100 Decal, HP Engine 13 183827 Decaí, Lower Dash
3 184728 Decal, Hood, R.H, 14 160396 Decal, V-Be!t Schematic
4 184729 Decal, Hood, L.H. 16 138047 Decal, Battery Diehard
5 189643 Decal, Hood Replacement 20 149516 Decal, Battery Dngr/Psn Eng
6 133644 Decal, Customer Maintenance - - 138311 Decal, Lift Handle
7 184730 Decal, Hood Side - - 184310X428 Pad, Footrest LH STLT
8 172331 Decal, Deck - - 184311X428 Pad, Footrest RH STLT
9 184899 Decal, Fender, Craftsman 191218 Owner's Manual, English
10
11 156439
179128 Decal, Fender Danger
Decal, Deck “B” 42” 191219 Owner's Manual, Spanish
WHEELS & TIRES KEY PART
NO. NO.
1
2
3
4
5
6
7
11
59192
65139
106222X
59904
106732X624
278H
9040H
8 106108X624
9 106268X
10 7152J
104757X428
144334
DESCRIPTION
Valve Cap, Tire
Stem, Valve
Tire, Front
Tube, Front Tire
(Not Provided, Service Item Only)
Rim, Front
Fitting, Grease (Front Wheei Only)
Bearing, Flange (Front Wheel
Only)
Rim, Rear
Tire, Rear
Tube, Rear Tire
(Not Provided, Service Item Only)
Cap, Axle
Sealant, Tire 10 oz.
NOTE: Ail component dimensions given in U.S.
inches 1 inch = 25.4 mm
