Craftsman 917.273392 - Manual (Page 41)

TRACTOR - - MODEL NUMBER 917.273392

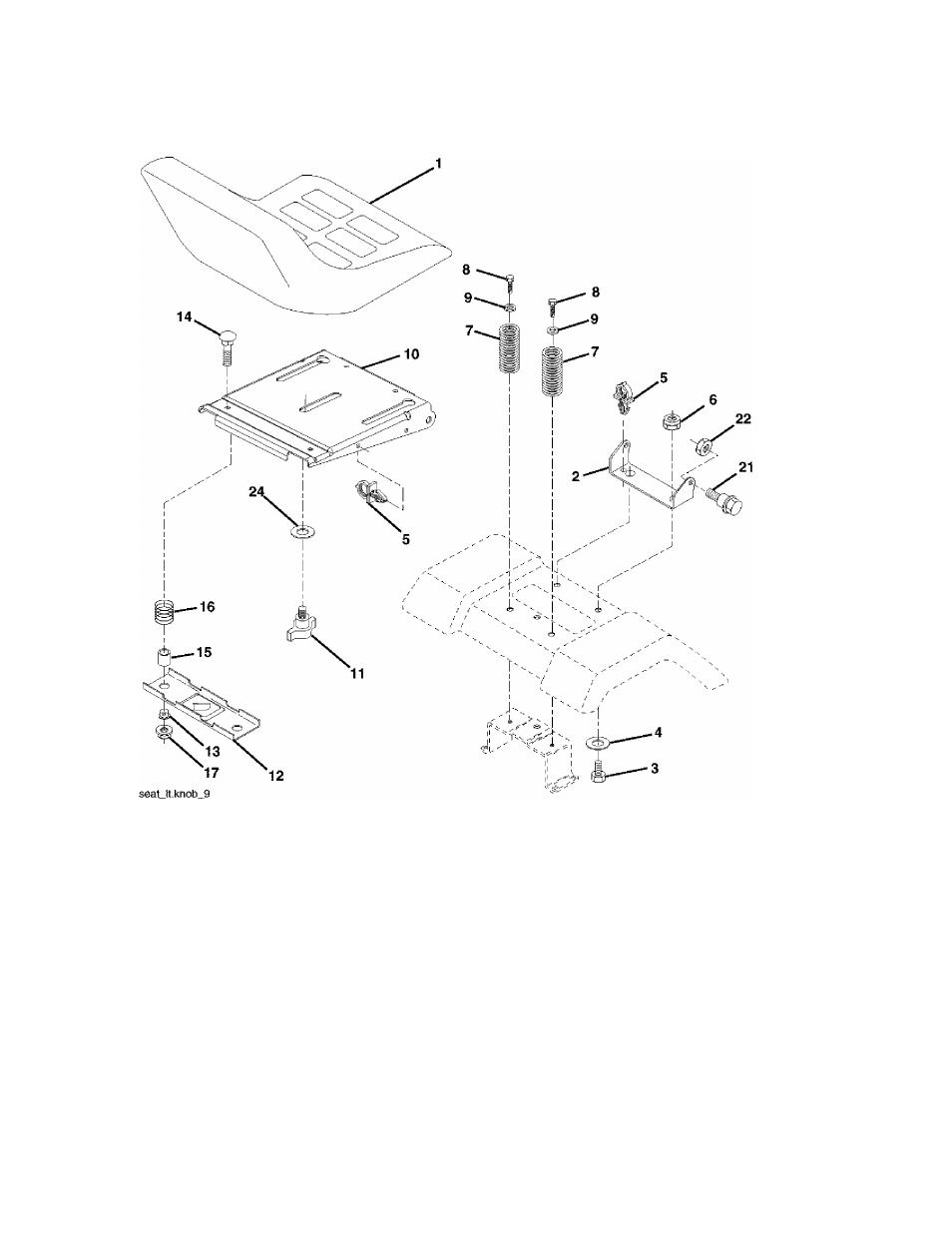

SEAT ASSEMBLY
KEY
NO.
PART
NO. DESCRIPTION
KEY
NO.
PART
NO. DESCRIPTION
1 188716 Seat 13 121248X Bushing, Snap
2 180166 Bracket, Pivot, Seat 14 72050412 Boit, Carriage 1/4-20 x 1-1/2
3 71110616 Boit 15 134300 Spacer, Split .28 x .88
4 19131610 Washer 13/32 x 1 x lOGa. 16 121250X Spring
5 145006 Clip, Push-in Hinged 17 123976X Locknut, Fiange 1/4 Gr. 5
6 STD541437 Nut 21 171852 Boit, Shoulder 5/16-18 unc
7 124181X Spring, Seat 22 STD541431 Nut
8 17000616 Screw 3/8-16x1-1/2 24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
9
10
11
19131614
180186
166369 Washer 13/32 x 1 x 14Ga.
Pan, Seat
Knob Seat
NOTE; A!i component dimensions given in U.S.
12 121246X Bracket, Switch Mounting inches 1 inch = 25.4 mm
