The operation of any tractor can result in foreign objects thrown into
the eyes, which can result in severe eye damage. Always wear safety
glasses or eye shields while operating your tractor or performing any
adjustments or repairs. We recommend standard safety glasses or a
wide vision safety mask worn over spectacles.
HOW TO USE YOUR TRACTOR
TO SET PARKING BRAKE
Your tractor is equipped with an operator
presence sensing switch. When engine
is running, any attempt by the operator
to leave the seat without first setting the
parking brake will shut off the engine.
1. Depress brake pedal all the way down
and hold.
2. Pull parking brake lever up and release
pressure from brake pedal. Pedal
should remain in brake position. Make
sure parking brake will hold tractor
S0CU r©.

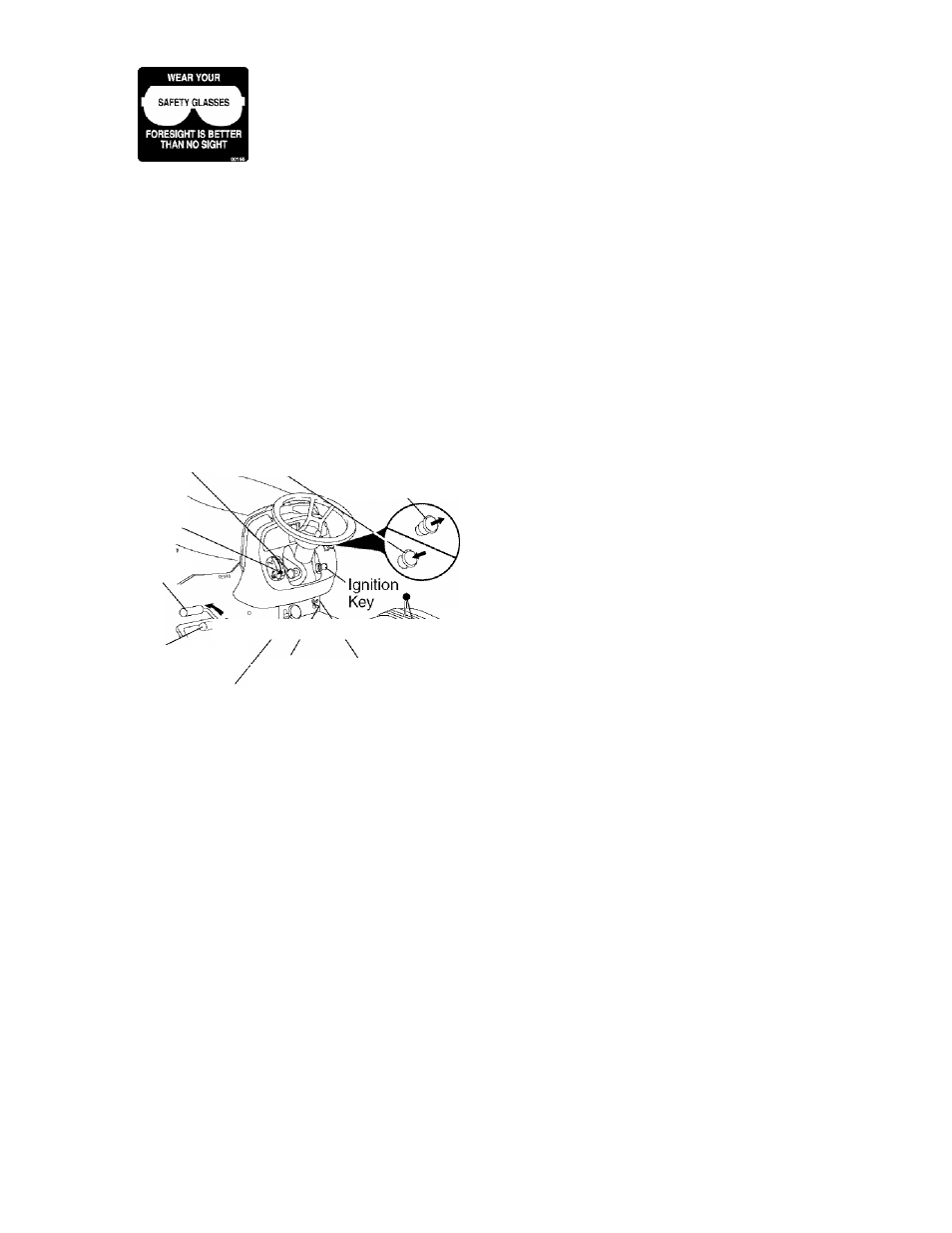

Choke
Control
Throttle
Control
“Brake'
Position
Push-In to
“Disengaged
Attachment Clutch
Switch Pull Out To
“Engage”-
Brake Pedal
“Drive” Position
Height Adjustment
Knob
STOPPING
Motion
“Disengaged” \ Control
Position \ Lever
Parking Brake
“Engaged” Position
MOWER BLADES -
• To stop mower blades, push attachment
clutch switch in to disengaged position.
GROUND DRIVE -
• To stop ground drive, depress brake
pedal all the way down.
IMPORTANT: The motion control lever
returns to neutral (N) position when the
brake pedal is fully depressed.
ENGINE -
• Move throttle control between half and
full speed (fast) position.
NOTE: Failure to move throttle control
between half and full speed (fast) posi­
tion, before stopping, may cause engine to
“backfire”.
• Turn ignition key to “STOP” position and
remove key. Always remove key when
leaving tractor to prevent unauthorized
use.
• Never use choke to stop engine.
IMPORTANT: Leaving the ignition switch in
any position other than "STOP" will cause
the battery to discharge and go dead.
NOTE: Under certain conditions when
tractor is standing idle with the engine
running, hot engine exhaust gases may
cause “browning” of grass. To eliminate
this possibility, always stop engine when
stopping tractor on grass areas.
id^CAUTION: Always stop tractor com­
pletely, as described above, before leaving
the operator's position.
TO USE THROTTLE CONTROL
Always operate engine at full throttle.
• Operating engine at less than full throttle
reduces the battery charging rate.
• Full throttle offers the best mower perfor­
mance.
TO USE CHOKE CONTROL
Use choke control whenever you are start­
ing a cold engine. Do not use to start a
warm engine.
• To engage choke control, pull knob out.
Slowly push knob in to disengage.
TO MOVE FORWARD AND BACKWARD
kCAUTION: Do not attempt to oper­
ate motion control lever when the parking
brake is set or when the brake pedal is
depressed. Doing so may result in misad-
justment to the drive control system.
The direction and speed of movement is
controlled by the motion control lever.
1. Start tractor with motion control lever in
neutral (N) position.
2. Release parking brake.
3. Slowly move motion control lever to
desired position.
TO ADJUST MOWER CUTTING HEIGHT
The cutting height is controlled by turn­
ing the height adjustment knob in desired
direction.
• Turn knob clockwise (r^) to raise cutting
height.
• Turn knob counterclockwise to
lower cutting height.
The cutting height range is approximately
1-1/2" to 4-1/2". The heights are mea­
sured from the ground to the blade tip with
the engine not running. These heights
are approximate and may vary depending
upon soil conditions, height of grass and
^ ^types of grass being mowed.
