Craftsman 917.274810 - Manual (Page 40)

TRACTOR - - MODEL NUMBER 917.274810

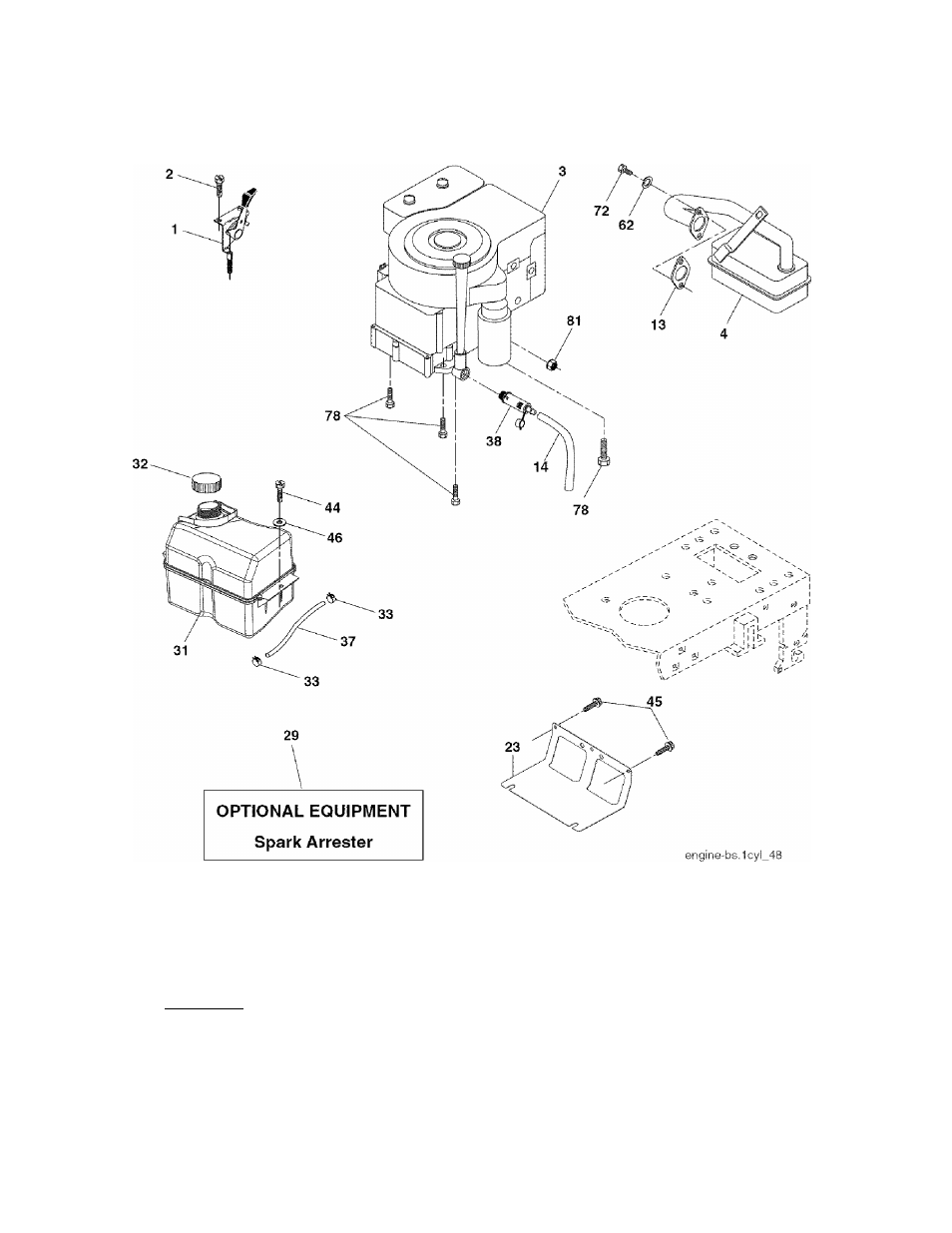

ENGINE
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 170545 Control, Throttle/Choke 37 137040 Line, Fuel
2 17720408 Screw, HexThd Cut 1/4-20 x 1/2 38 181654 Plug, Oil Drain Easy
3 Engine, B&S, No. 31P777-0299-E1 44 17670412 Screw Hexwsh Thdrol 1/4-20 x 3/4
(See Breakdown) 45 17000612 Screw Hex Wsh 3/8-16 x 3/4
4 137352 Muffler Exhaust 46 19091416 WEasher 9/32 x 7/8 x 16 Ga.
13 165291 Gasket, Muffler 62 10010500 Washer Split
14 148456 Tube Drain Oil Easy 72 71070512 Screw Hex Head Cap 5/16-18 x 3/4
23 169837 Shield, Brn/Dbr Guard 78 17060620 Screw 3/8-16 X 1-1/4
29 137180 Arrestor, Spark 81 73510400 Nut Keps Hex 1/4-20 Starter Nut
31 185534 Tank, Fuel
32 140527 Cap Fuel
33 123487X Clamp, Hose NOTE: All oomponent dimensions given in U. S.
inches 1 inch = 25.4 mm
