nOTE: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.

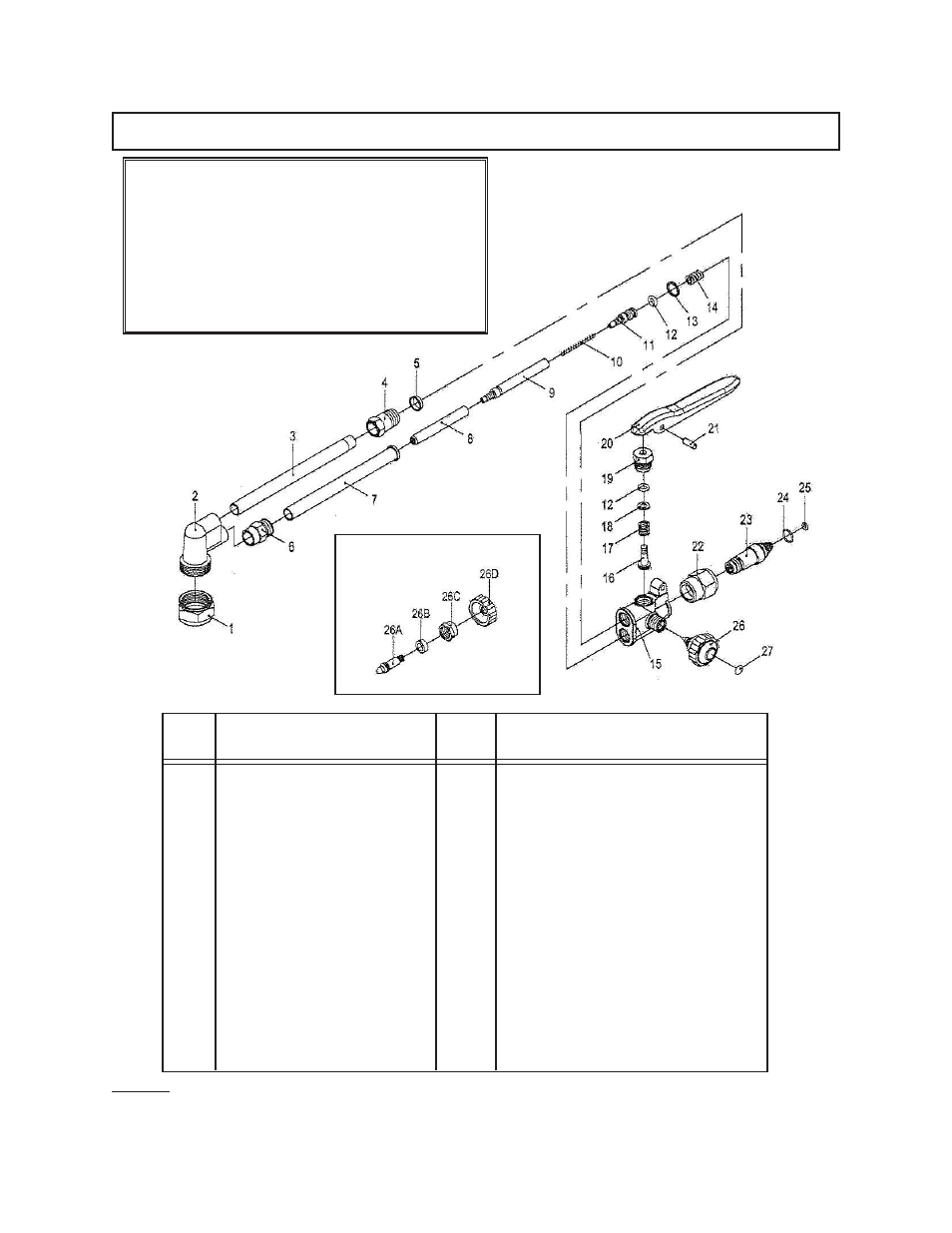

PARTS lIST AnD DIAGRAM 4 - cUTTInG ATTAcHMEnT
note: When ordering parts from this parts list and
diagram always take the number from the no.
column (on the left) and add a suffix of c to
the beginning.
for example: If you wished to order a Head for this
attachment you’d take the part number from the
no. column (2) and add an c to the beginning.
So you’d order part
c2.
Item Item
no Description no Description
1 Tip Nut 17 HP Spring
2 Head 18 Washer
3 Oxygen Tube 19 Valve Cap
4 Nut 20 Lever
5 Ferrule 21 Sprial Pin
6 Nut 22 Coupling Nut
7 Fuel Tube 23 Connector
8 Inner Tube (A) 24 O-Ring (Big)
9 Inner Tube (B) 25 O-Ring (Small)
10 Spiro 26 Valve Stem Assembly
11 Inner Tube (C) 26A Valve
12 O-Ring 26B Washer
13 Washer (Teflon) 26C Nut
14 Spring 26D Adjusting Knob
15 Body 27 Label (OX)
16 Valve
components Of: #26
