nOTE: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.

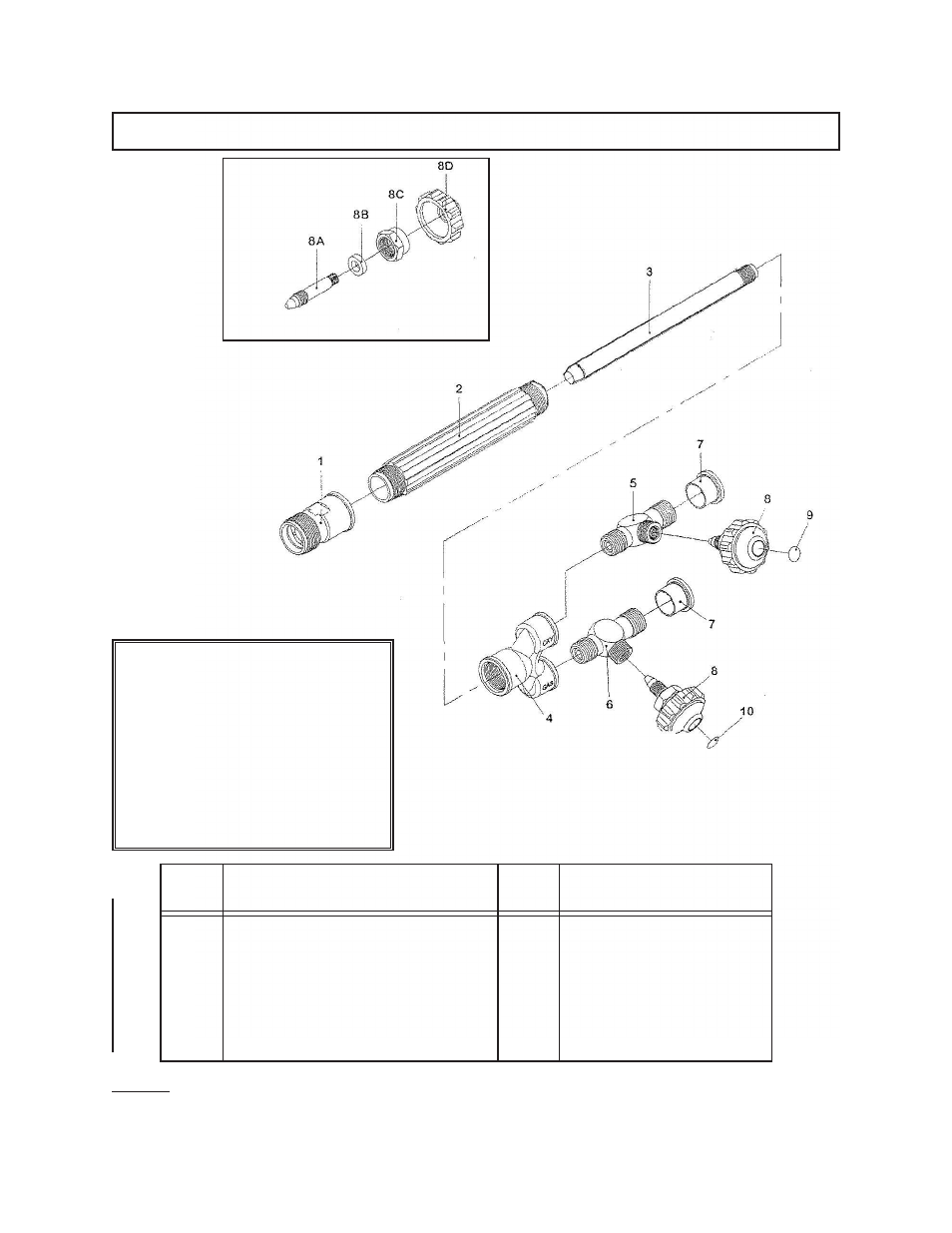

PARTS lIST AnD DIAGRAM 3 - TORcH HAnDlE
note: When ordering parts from this
parts list and diagram always take
the number from the
no. column
(on the left) and add a suffix of B
to the beginning.
for example: If you wished to order a
Tail for this handle you’d take the
part number from the
no. column
( 4) and add an B to the beginning.
So you’d order part B4.
Item Item
no Description no Description
1 Torch Head 8 Valve Stem Assembly
2 Handle 8A Valve
3 Inner Tube 8B Washer
4 Tail 8C Nut
5 Oxygen Valve Body 8D Adjusting Knob
6 Gas Valve Body 9 Label (OX)
7 Cover 10 Label (AC)
components Of: #8
