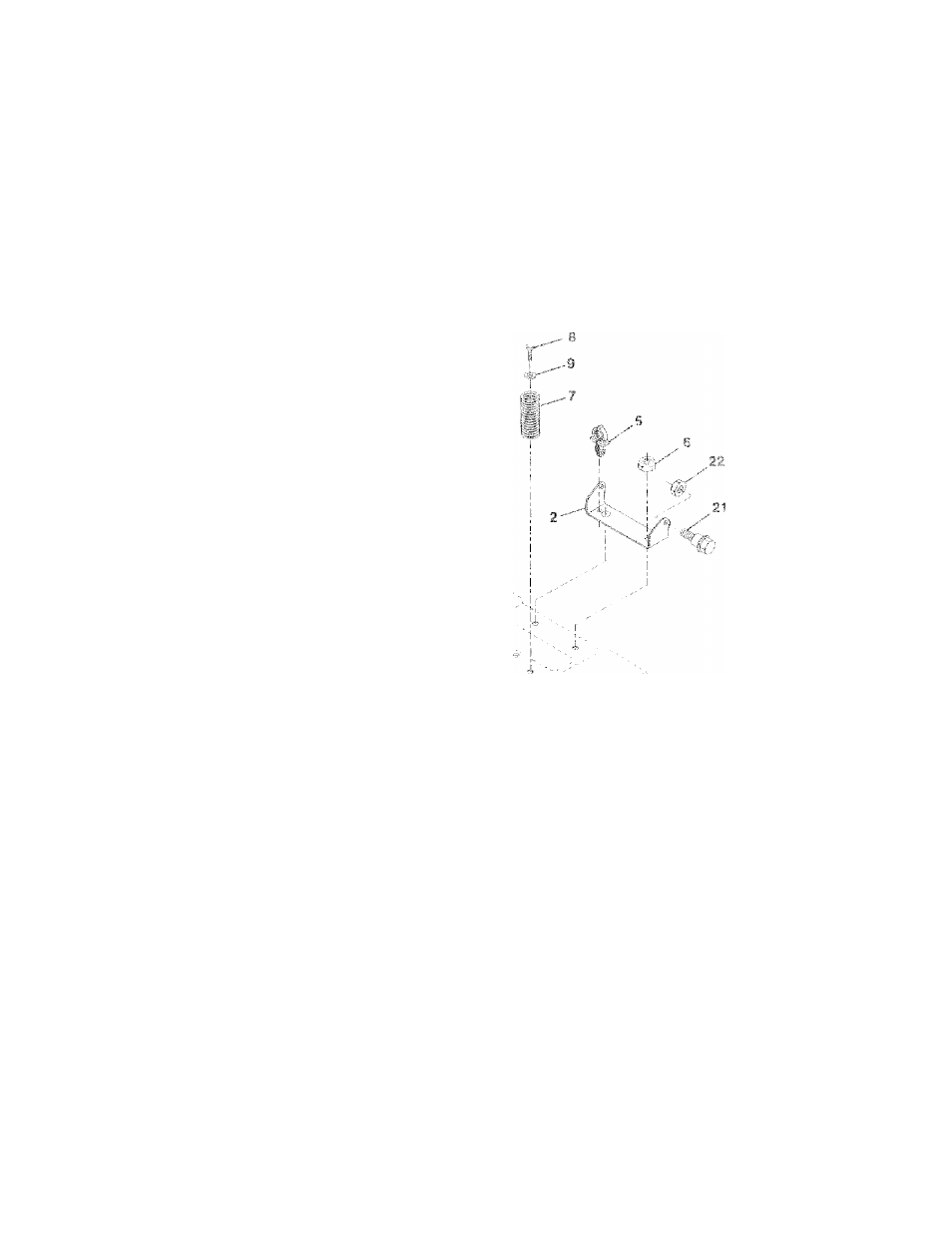

SEAT ASSEMBLY
TRACTOR
MODEL NUMBER 917.256544
14.
-16
24.
As '
26...
' i
i -A- -
i-iy
.g
r-\
m
"25
8
9->.
I
-.T
23
"13
4?
"'12
' A- ‘ SS-
-,4
-3
KEY
PART
KEY
part
NO.
NC5.
DESCRIP'TION
NO.
NO.
DESCRIPTION
1
140123
Seal
15
134300
Spacer, Split .28 x .88
2
140551
Bracket. Pivoi. Seat
16
121250X
Spring
3
STD523710
Bolt
17
123976X
Locknu!, Flange 1/4 Grade 5
4
19131610
Washer J3/32 x 1 x 10 Gauge
21
153236
Bolt, Shoulder 5/16-18 UNC
5
145006
Clip, Pusb-Sn Hinqed
22
STD541431
Nut
6
STD541437
Nut
23
74780814
Boit, Hex Head, Fin.
7
124181.x
Spring, Seat
1/2-13 X7./8
Grade
5
8
17490616
Sc-rew, Thd., Roll. 3/8-16 x 1
24
19171912
Washer
17/32 x 1-3/16
x
12 Gauge
9
19131614
Washer 13/32 x 1 x 14 Gauge
25
127018X
Boll, Shoulder 5/16-18 x .62
10
140552
Pan, Seat '
26
STD551150
Washer, Lock
12
121246X
Bracket, Switch Mounting
13 .
121243X
Bushing, Snap
NOTE:
Ail
componeni dirriensions given in U.S. inches
14
72050411
Bolt, Carnaoe 1/4-20 x 1-3/8
