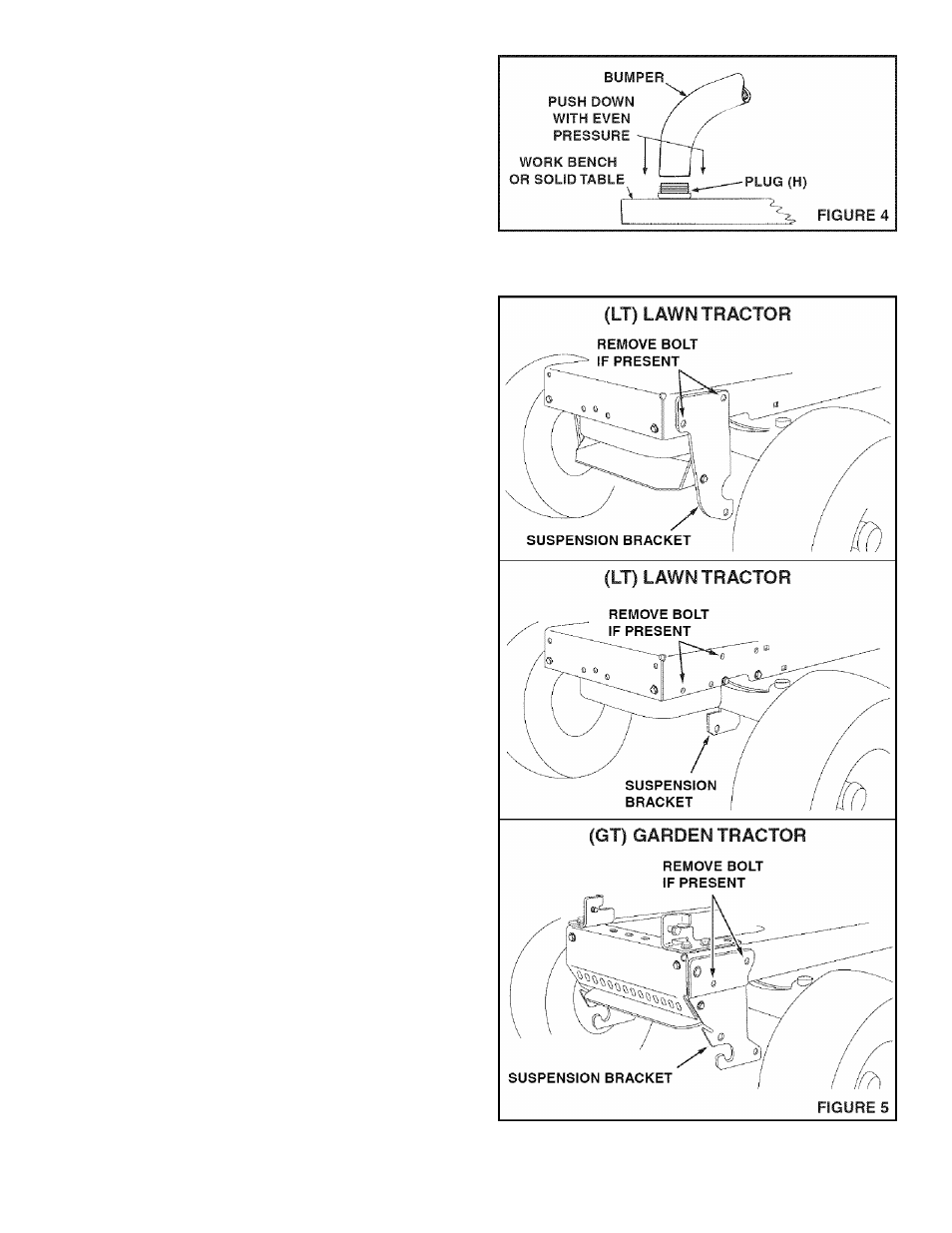

STEPS: (SEE FIGURE 4)
• Place plug (H) on a work bench or solid table and
push end of bumper down onto plug. Repeat for all
four plugs.
STEP 4:
(SEE FIGURE 5)
IMPORTANT: Do not remove any bolts from the tractor
frame while the mower deck is raised. Misalignment of
holes in frame could result.
•
Lower mower deck to rest on ground.
*
Remove bolts from mounting holes on both sides of
tractor frame. Use a mounting bracket to help identify
holes.
Call 1-866-576-8388 for missing parts or assembly help
DO NOT RETURN TO STORE
