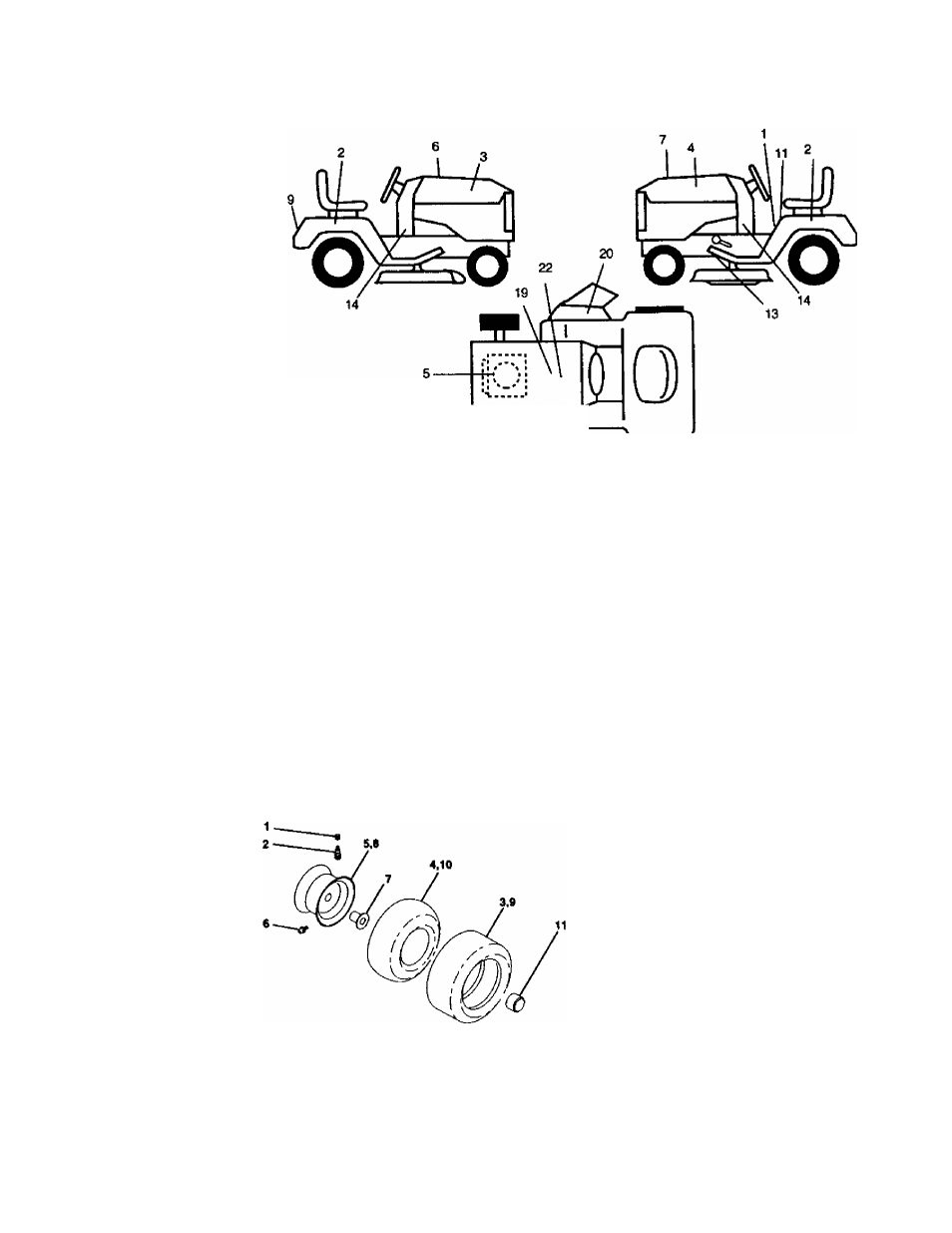

TRACTOR - - MODEL NUMBER 917.271130
DECALS
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
156439
Decal Fender Danger Sears
13
146046
Decal V-belt Dr Sch Tractor E
2
163207
Decat Fend Auto Sears Gold
14
163263
Decal Dash Panel
3
171698
Decal Hood Rh Craftsman
15
160396
Decat Mower Drive Schematic
4
171699
Decal Hood Lh Craftsman
19
138047
Decal, Battery Diehard Sears
5
168920
Decat Engine H/P
20
166887
Decal Deck Mower EZ3
6
133644
Decal Maint Customer
22
149516
Decal Battery
Sears Dorn
. -
138311
Decal Lift Handle
7
171764
Decat Replacement Srs
- -
165800X428
Pad Footrest Lh STLT
9
163204
Decal Fender Craftsman Gold
- -
165799X428
Pad Footrest Rh STLT
11
156368
Decal Fender STLTHOper
- -
172212
Manual, Owner's (English)
Inst E/S
- -
172213
Manual, Owner's (Spanish)
WHEELS & TIRES
KEY
PART
NO. NO.
8
9
10
11
59192
65139
106222X
59904
106732X427
278H
9040H
106108X427
122082X
7152J
104757X
144334
DESCRIPTION
Valve Cap, Tire
Stem, Valve
Tire, Front
Tube, Front Tire
(Not Provided, Service Item
Only)
Rim, Front
Fitting, Grease (Front Wheel
Only)
Bearing, Flange (Front Wheel
Only)
Rim, Rear
Tire, Rear
Tube. BearTire
(Not Provided, Service Item
Only)
Cap, Axle
Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
