Clamp
CLEANING
• Clean engine, battery, seat, finish, etc.
of all foreign matter.
• Keep finished surfaces and wheels
free of alt gasoline, oil, etc.
• Protect painted surfaces with automo­
tive type wax.
We do not recommend using a garden
hose to clean your tractor unless the
electrical system, muffler, air filter and
carburetor are covered to keep water out.
Water in engine can result in a short­
ened engine life.
TRACTOR

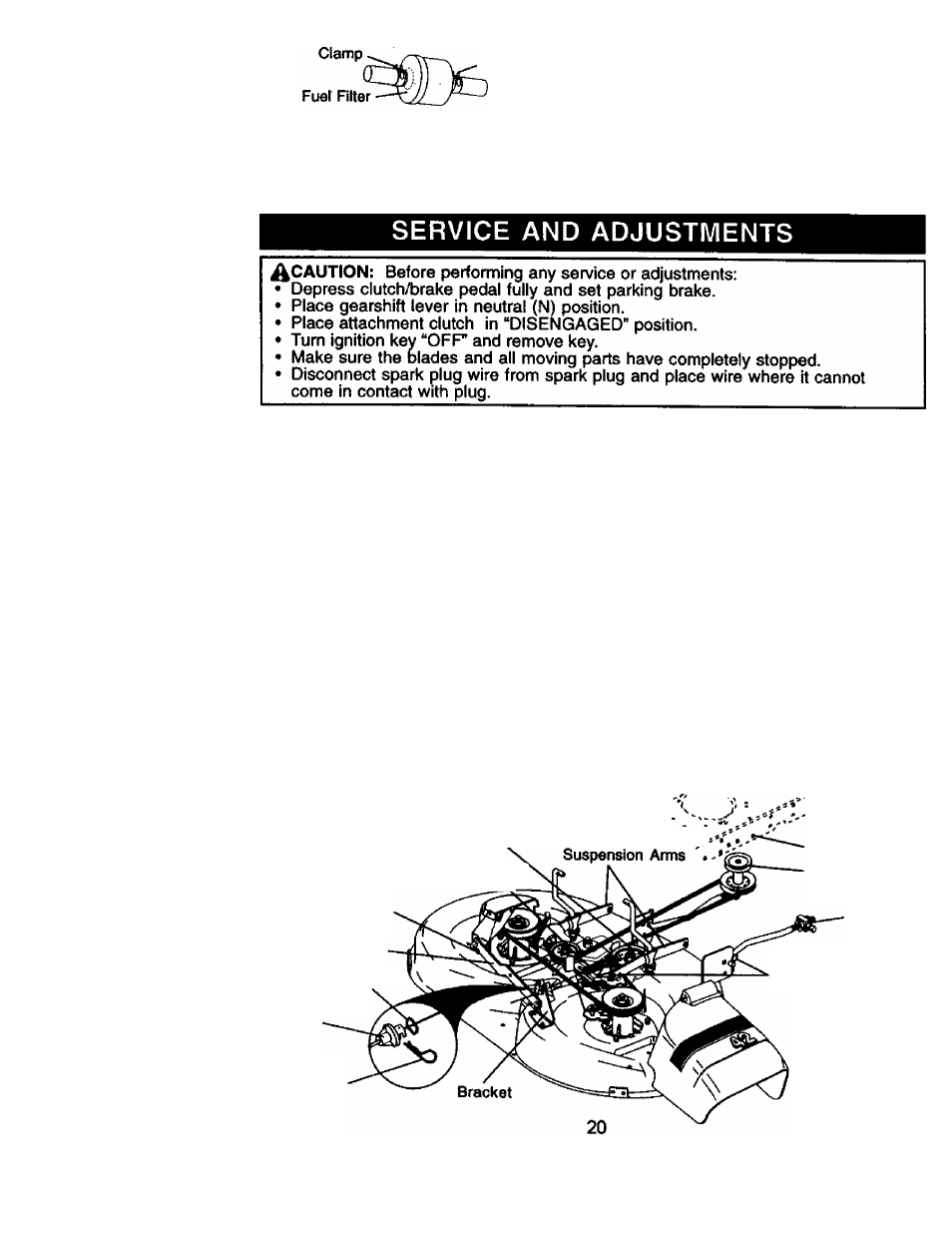

TO REMOVE MOWER
Mower will be easier to remove from the
right side of tractor.
• Place attachment clutch in “DiSEN­
GAGED” position.
• Move attachment lift lever forward to
lower mower to its lowest position.
• Roll belt off engine pulley.
• Remove small retainer spring, and lift
clutch spring off pulley bolt.
• Remove large retainer spring, slide
collar off and push housing guide out
of bracket.
• Disconnect anti-swaybar from chassis
bracket by removing retainer spring.
• Disconnect suspension arms from rear
deck brackets by removing retainer
springs.
• Disconnect front links from deck by
removing retainer springs.
• Raise lift lever to raise suspension
arms. Slide mower out from under
tractor.
IMPORTANT: If an attachment other than
the mower deck is to be mounted on the
tractor, remove the front links and hook
the clutch spring onto square hole in
frame.
TO INSTALL MOWER
• Raise attachment lift lever to its
highest position.
• Slide mower under tractor with
discharge guard to right side of tractor.
• Lower lift lever to its lowest position.
• Install mower in reverse order of
removal instructions.
^ *
te*
N
Small Reteiiner Spring
Clutch Spring
Large
Retainer
Spring
Retainer Spring
Anti-Sway Bar
Collar
Housing
Guide
Square Hole
Engine Pulley
Front Link
Retainer Springs
(Both Sides)
