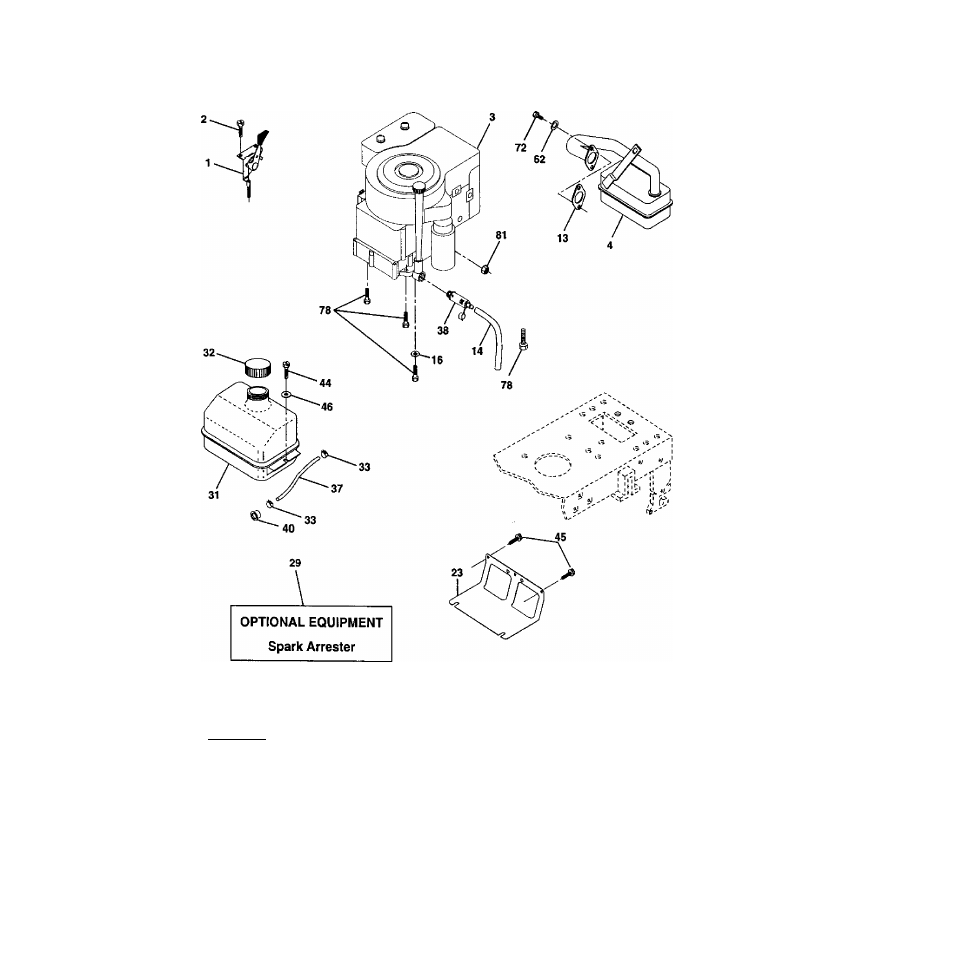

TRACTOR - - MODEL NUMBER 917.271653
ENGINE
KEY
NO.
1
2
3
PART
NO.
170545
17720408
4
137352
13
165291
14
148456
16
STD551237
23
169837
29
137180
31
109202X
32
158990
33
123487X
DESCRIPTION
Control Throttle/Choke
Screw Hex Thd Cut 1/4-20x1/2 T
Engine (See Breakdown) Briggs
Model 310707-0137-El
Muffler Exhaust B&S Lt
Gasket 1 313 Id Tin Plated
Tube Drain Oil
Washer Lock Ext Tooth 3/8
Shield BRN/DBR Guard
Arrestor Spark
Tank Fuel 1 25 Fr
Cap Asm Fuel W/sym Vented
Clamp Hose BIk
KEY PART
NO.
NO.
DESCRIPTION
37
137040
Line Fuel 20"
38
148315
Plug Oil Drain
40
124028X
Bushing Snap Nyl BIk Fuel Line
44
17670412 Screw HexwshThdrol 1/4-20x3/4
45
17000612 Screw Hexwsh Thdr 3/8-16 X 3/4
46
19091416 Washer 9/32 X 7/8 X 16ga
62
STD551131 Washer Lock Hvy Hid Spr 5/16
72
71070512 Screw Hexhd Cap 5/16-18x3/4
78
17060620 Screw3/8-16x1-1/4
81
73510400 NutKeps Hex 1/4-20unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
