TO REPLACE HEADLIGHT BULB
Weak or Dead
Battery

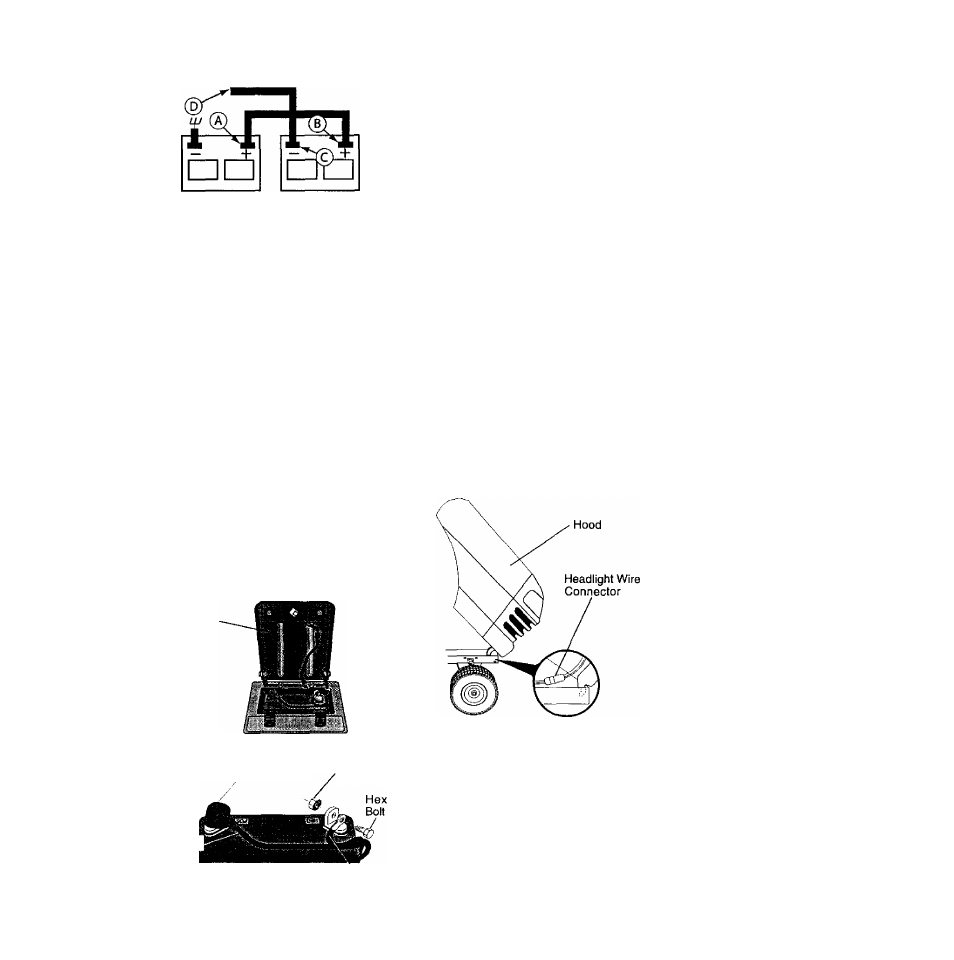

REPLACING BATTERY
Fully Charged
Battery
^WARNING: Do not short battery
terminals by allowing a wrench or any
other object to contact both terminals at
the same time. Before connecting battery,
remove metal bracelets, wristwatch
bands, rings, etc.
Positive terminal must be connected first
to prevent sparking from accidental
grounding.
1. Lift seat pan to raised position.
2. Disconnect BLACK battery cable first
then RED battery cable and carefully
remove battery from tractor.
3. Install new battery with terminals in
same position as old battery.
4. First connect RED battery cable to
positive (+) terminal with hex bolt and
keps nut as shown. Tighten securely.
Slide terminal cover over terminal
5. Connect BLACK grounding cable to
negative (-) terminal with remaining
hex bolt and keps nut. Tighten
securely.
Seat Pan
1.
2
.
3.
Raise hood.
Pull bulb holder out of the hole in the
backside of the grill.
Replace bulb in holder and push bulb
holder securely back into the hole in
the backside of the grill.
4. Close hood.
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your
tractor to run poorly, stop running, or
prevent it from starting.
• Check wiring. See electrical wiring
diagram in the Repair Parts section.
TO REPLACE FUSE
Replace with 20 amp automotive-type
plug-in fuse. The fuse holder is located
behind the dash.
TO REMOVE HOOD AND GRILL
ASSEMBLY
1. Raise hood.
Unsnap headlight wire connector.
Stand in front of tractor. Grasp hood
at sides, tilt toward engine and lift off
of tractor.
W hen replacing hood, be sure to
reconnect the headlight wire connec­
tor.
2
.
3.
4.
Positive^
(Red)
T
Cable
Terminal
Cover
Keps
Nut
Negative
(Black) Cable
