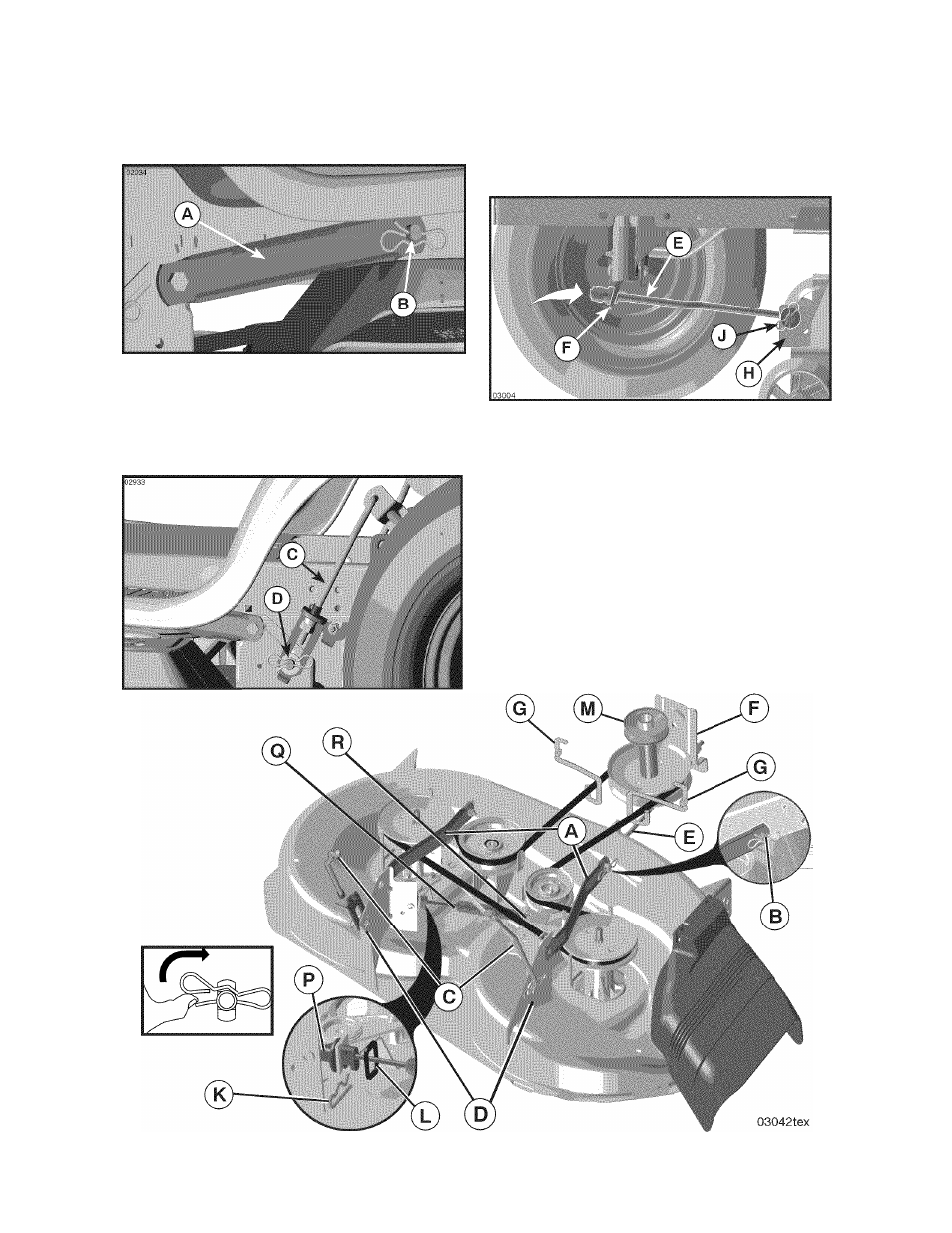

3. ATTACH MOWER SIDE SUSPEN­
SION ARMS (A) TO CHASSIS - Posi­
tion hole in arm over pin (B) on outside
of tractor chassis and secure with
retainer spring.
4. Repeat on opposite side of tractor.
7.
ATTACH FRONT LINK (E) - Work from
left side of tractor. Insert rod end of link
assembly through front hole in tractor
front suspension bracket (F).
Insert end of link (E) into hole in front
mower bracket (H) and secure with
washer and retainer spring (J).
5. ATTACH REAR LIFT LINKS (C) - Lift
rear corner of mower and position slot
in link assembly over pin (D) on rear
mower bracket and secure with washer
and retainer spring.
8. Hook end of clutch cable spring (Q)
into hole in idler arm (R).
9. Push clutch cable housing guide (P)
into bracket, slide collar (L) onto guide
and secure with retainer spring (K).
10. Install belt onto engine pulley (M) and
belt keepers (G).
IMPORTANT: Check belt for proper rout­
ing in all mower pulley grooves.
11. Raise attachment lift lever to highest
position.
12. If necessary, adjust gauge wheels
before operating mower as shown in
the Operation section of this manual.
