AUGER BELT

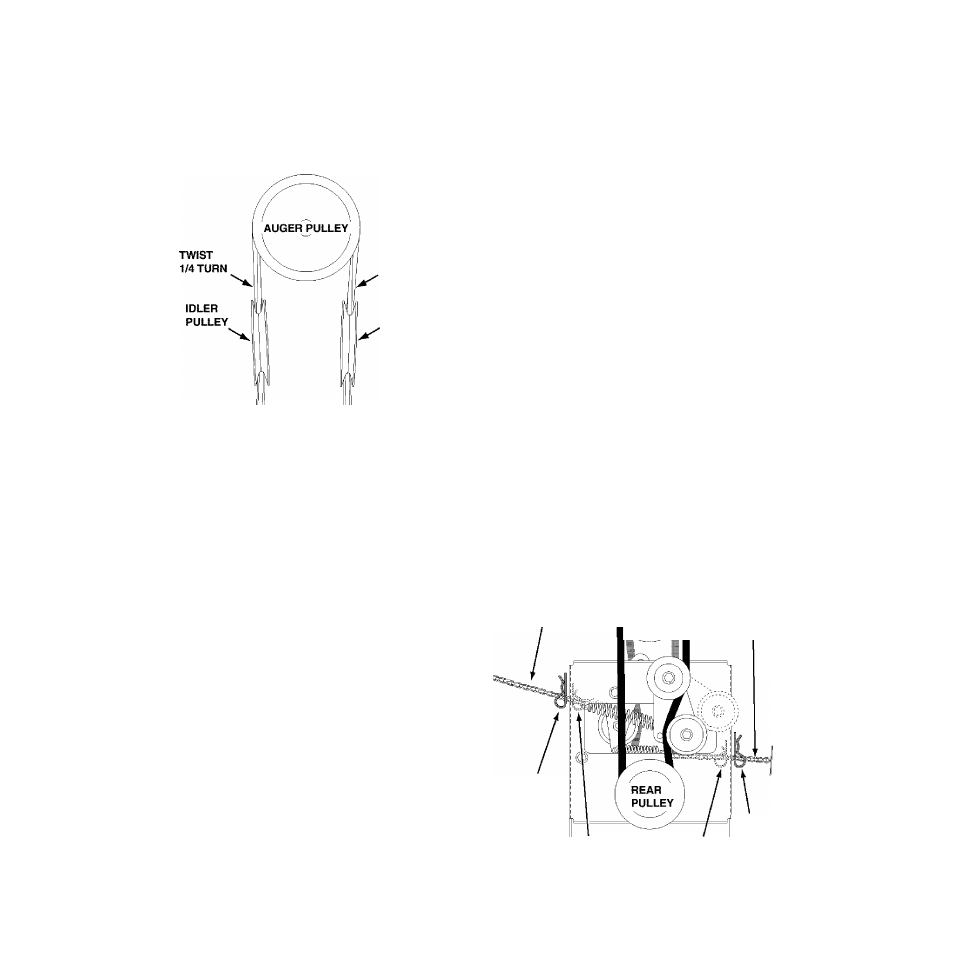

• Make sure the auger belt is correctly assembled to
the snow thrower. The belt must pass over the top
of the auger pulley and then twist 1/4 turn to pass
underneath the two side idler pulleys on the snow
thrower. The "V side of the belt must seat in the
grooves of all three pulleys. See figure 17.
TWIST
1/4 TURN
IDLER
PULLEY
FIGURE 17 VIEWED FROM REAR
• Raise the snow thrower to the transport position.
• Piace the auger belt around the bottom rear pulley
on the clutch/idler assembly and between the two
pulleys on the lower idler arm. Keep the flat idler
pulley to the outside of the belt. See figure 18.
• Pull the flat idler pulley against the auger belt using
the R.H. tension adjusting chain. For correct belt
tension, puli the chain as far as the inside hairpin
clip will allow and then reinstall the outside 1/8"
hairpin clip into the chain. See figure 18.
IMPORTANT: If the R.H. inside hairpin clip is re­
moved, reinstall it in link #2 (counted from the end
of the chain attached to the spring).
• Pull the upper flat idler pulley against the drive belt
using the L.H. tension adjusting chain. For correct
belt tension, pull the chain as far as the inside
hairpin clip will allow and then reinstall the outside
1/8" hairpin clip into the chain. See figure 18.
IMPORTANT: If the L.H. inside hairpin clip is re­
moved, reinstall it in link #8 on tractors with 6"
diameter engine pulleys or in link #5 on tractors
with smaller engine pulleys. (Links are counted
from the end of the chain attached to the spring.)
Hold this diagram above you while viewing the
Clutch/idler Assembly from underneath the
tractor. Right and left in this diagram will be
the reverse of the viewer's right and left.
RIGHT SIDE
OF
TRACTOR
R.H. TENSION
ADJUSTING CHAIN
(AUGER BELT)
t
FRONT
(©
LEFT SIDE
OF
TRACTOR
L.H. TENSION
ADJUSTING CHAIN
(DRIVE BELT)
1 / 8 "
HAIRPIN
CLIP
INSIDE
HAIRPIN
CLIP INSIDE
HAIRPIN
CLIP
1 / 8 "
HAIRPIN
CLIP
FIGURE 18 VIEWED FROM UNDERNEATH
11
