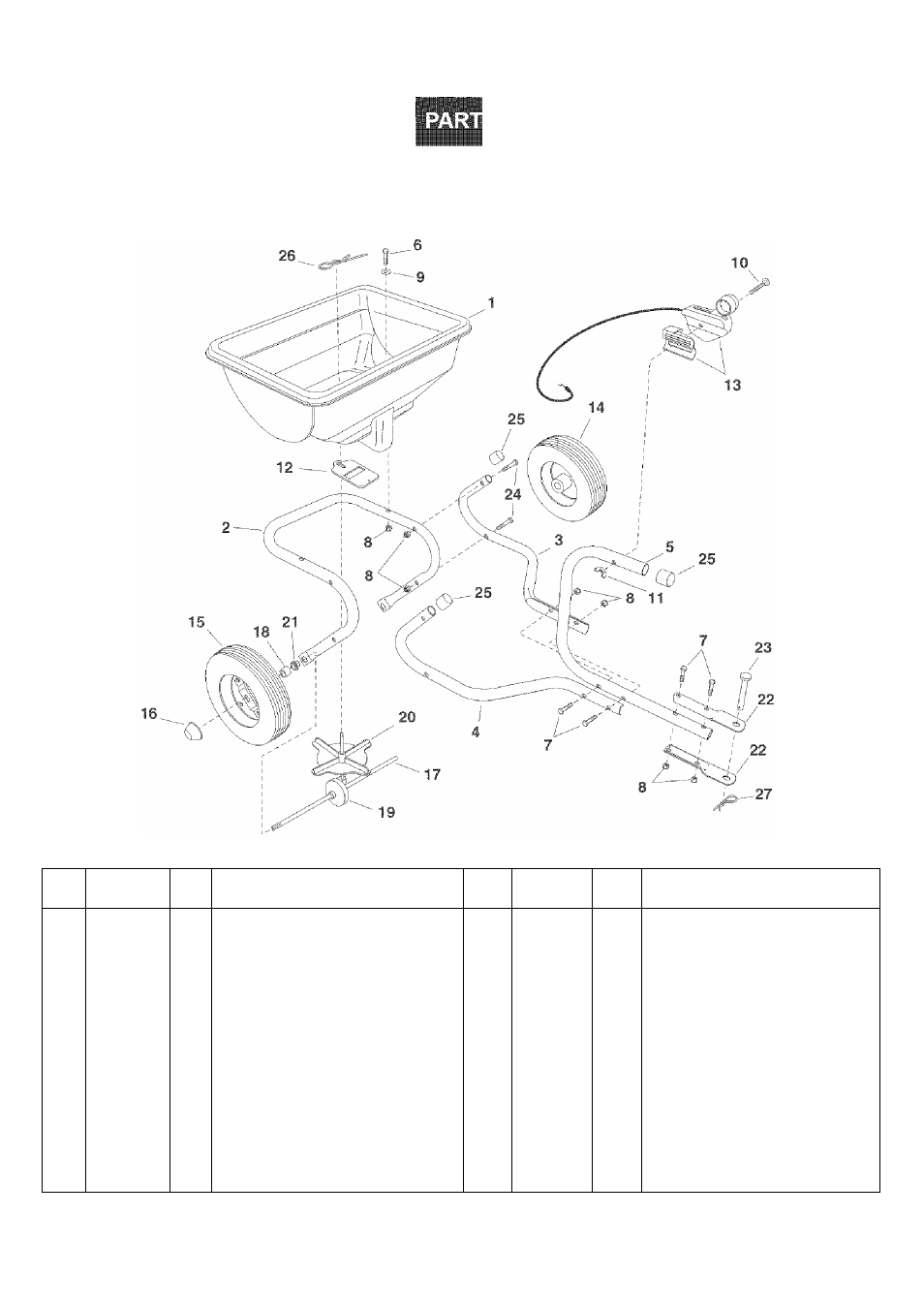

REPAIR PARTS FOR MODEL 486.243222
REF.
NO.
PART
NO.
QTY.
DESCRiPTION
REF.
NO.
PART
NO.
QTY.
DESCRIPTION
1
47994BLK
1
Hopper
15
48865
1
Drive Wheel
2
49085
1
Frame Tube
16
44663
2
Hub Cap (Push Nut)
3
49087
1
Hitch Tube (LH)
17
49082
1
Axle
4
49088
1
Hitch Tube (RH)
18
47851
2
Spacer
5
49091
1
Hitch Control Tube
19
49084
1
Gearbox
6
43648
2
Hex Bolt, 1/4-20 X 1-1/2"
20
47124
1
Impeller
7
1509-69
4
Hex Bolt, 1/4-20 x 1-3/4"
21
47963
2
Hex Flange Bearing
8
47189
10
Nylock Nut, 1/4-20
22
24446
2
Hitch Bracket
9
43088
2
Washer, 1/4 Std
23
47623
1
Hitch Pin
10
45165
1
Carriage Bolt 1/4-20 x 2"
24
46699
4
Hex Bolt, 1/4-20x2"
11
47141
1
Nylon Wing Nut 1/4-20
25
44481
3
Vinyl Cap
12
47983
1
Flow Slide
26
48934
1
Hairpin, Agitator
13
49820
1
Control Cable
27
43343
1
Hairpin, Cotter
14
46503
1
Wheel
49457
1
Owners Manual
