TO ROLL TRACTOR OFF SKID (See
Operation section for location and
function of controls)
• Press lift lever plunger and raise
attachment lift lever to its highest
position.
• Release parking brake by depressing
clutch/brake pedal.
• Place freewheel control in freewheel­
ing position to disengage transmis­
sion (See “TO TRANSPORT” in the
Operation section of this manual).
• Roll tractor forward off skid.
TO DRIVE TRACTOR OFF SKID
(See Operation section for location
and function of controls)
^WARNING: Before starting, read,
understand and follow all instructions in
the Operation section of this manual. Be
sure tractor is in a well-ventilated area.
Be sure the area in front of tractor is
clear of other people and objects.
• Be sure all the above assembly steps
have been completed.
• Check engine oil level and fill fuel
tank with gasoline.
• Place freewheel control in “transmis­
sion engaged" position.
• Sit on seat in operating position,
depress clutch/brake pedal and set
the parking brake.
• Place motion control lever in neutral
(N) position.
• Press lift lever plunger and raise
attachment lift lever to its highest
position.
• Start the engine. After engine has
started, move throttle control to idle
position.
• Release parking brake.
• Slowly move the motion control lever
forward and slowly drive tractor off
skid.
• Apply brake to stop tractor, set parking
brake and place gearshift lever in
neutral position.
• Turn ignition key to “OFF” position.
Continue with the instructions that follow.
ASSEMBLE GAUGE WHEELS AND
BRACKETS TO MOWER DECK
The gauge wheels are designed to keep
the mower deck in proper position when
operating mower. Be sure they are
properly adjusted to ensure optimum
mower performance.
• Attach front gauge wheel brackets
marked front left (FL), front right (FR)
to mower deck using (3) carriage bolts
and (3) locknuts. For ease of installa­
tion do not tighten locknuts until all
carriage bolts have been installed.
• Attach rear gauge wheel brackets
marked rear left (R L), rear right (RR)
to mower deck using (3) carriage bolts
and (3) locknuts. For ease of installa­
tion do not tighten locknuts until all
carriage bolts have been installed.
• Slide gauge wheel bar down into
bracket channel, Be sure that gauge
wheel bar aligning holes are on top.
Assemble gauge wheels as shown
using shoulder bolts, 3/8 washers and
3/8-16 center locknuts and tighten
securely,
• Adjust gauge wheels to highest
position for ease of mower deck
assembly.
• Adjust gauge wheels before operating
mower as shown in the operation
section of this manual.
Retainer
Spring
Pin
iCrowniock Nut
Carriage Bolts
Adjusting
Bar'
Shoulder
Bolt\^
Gauge *
Wheel"^
3/8 Washer-'^ ■ —- 3/8-16 Center Locknut

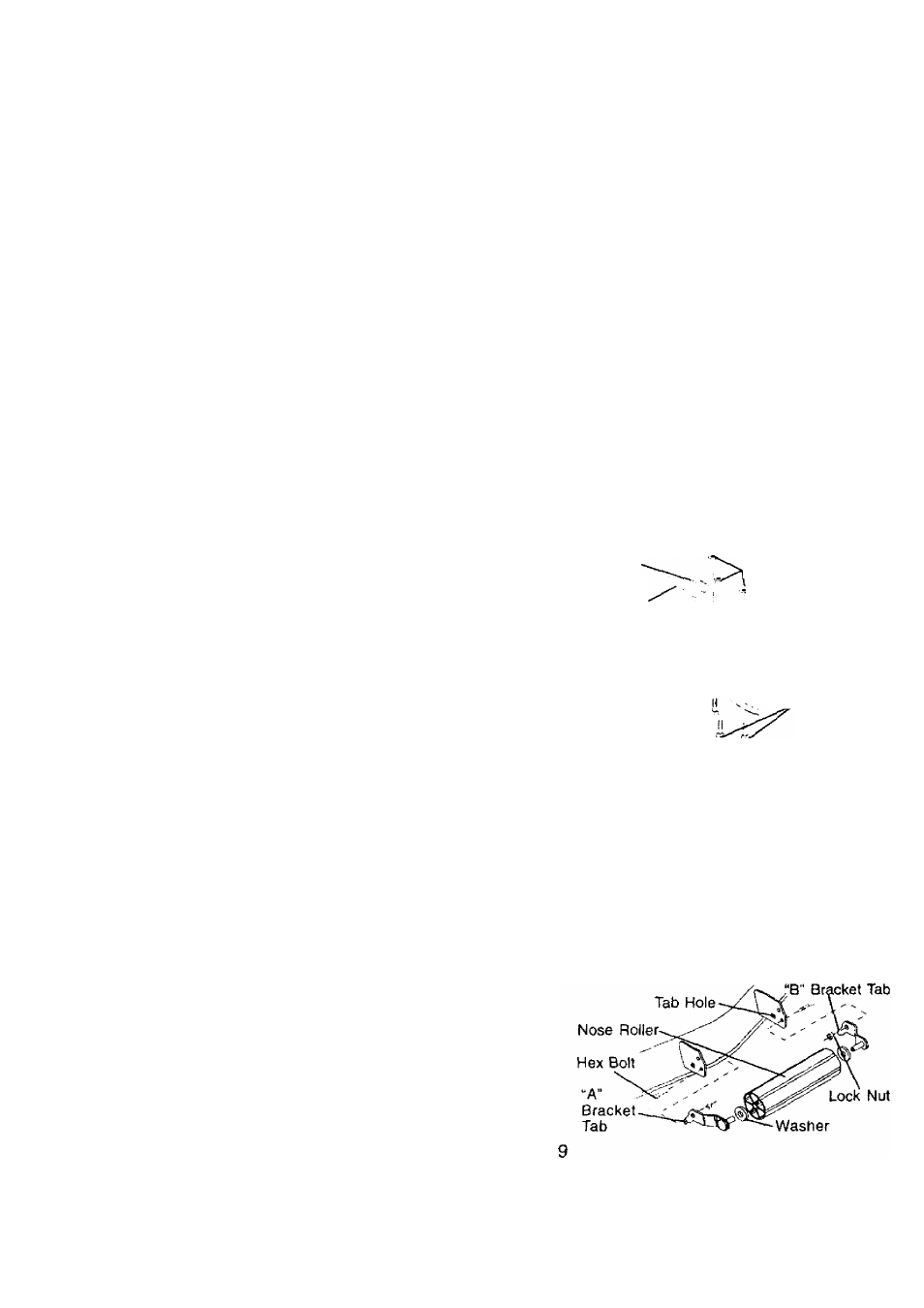

TO ATTACH NOSE ROLLER
* Position brackets, 17/32 x 7/8 x 16
gauge washers, and nose roller
between deck mounting brackets as
shown. Be sure to position brackets
on correct side, as shown,
• install 3/8-16 X 1 hex bolts and 3/8-16
lock nuts as shown. Tighten hardware
securely.
NOTE: Be sure bracket tabs are
positioned in tab holes in deck brackets.
