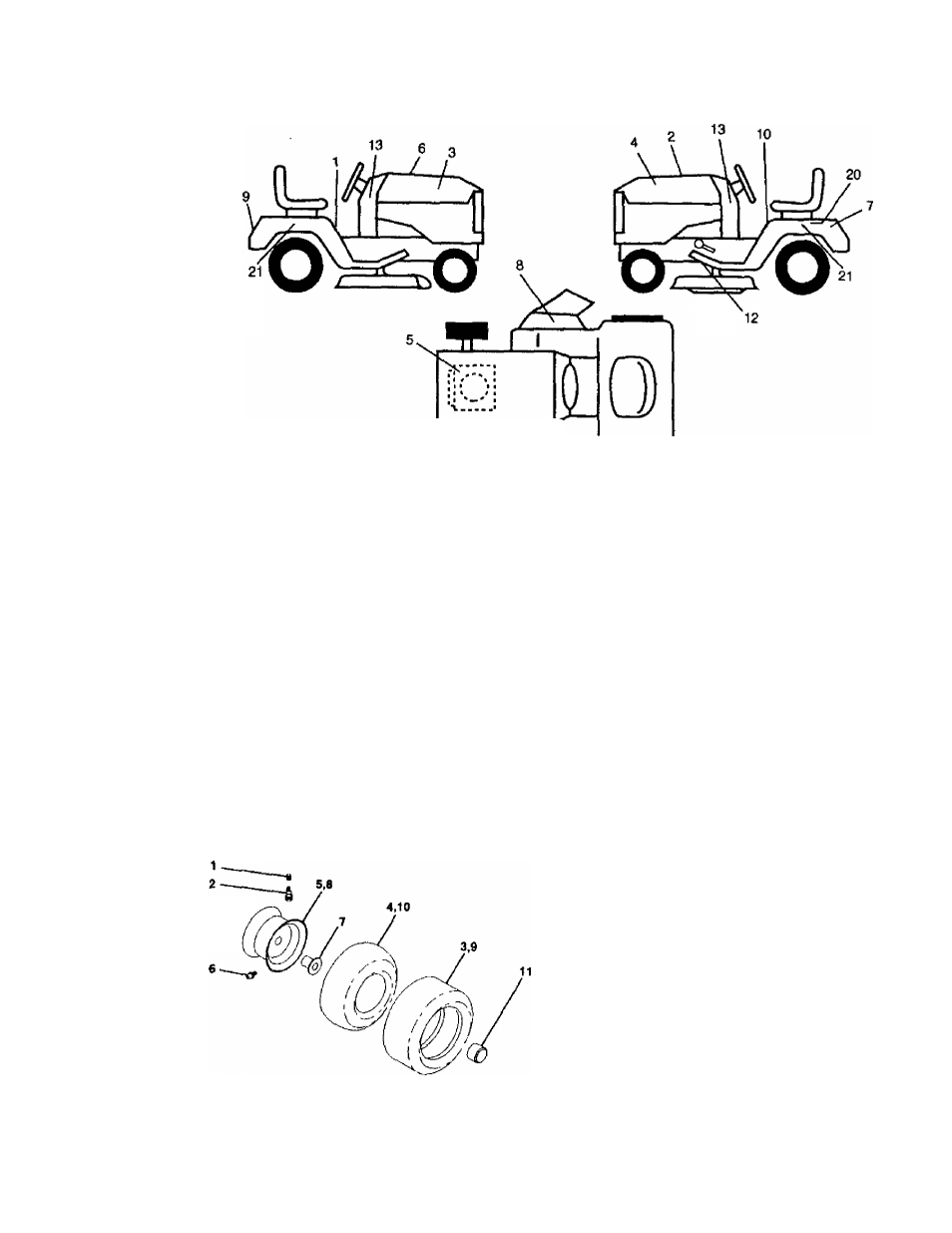

DECALS
TRACTOR - - MODEL NUMBER 917.270750
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
156368
Decal. Oper. Instr.
12
146046
Decal, V-Belt Drive Schematic
2
174321
Decal, Replacement
13
167329
Decal, Dash Panel
3
171696
Decal, Hood, R.H.
14
160396
Decal, V-Belt Schematic
4
171697
Decal, Hood, L.H.
20
149516
Decal Battery Dngr/Psn Eng
5
167049
Decal, HP Engine
21
163207
Decal, Fender Sd. Wht
6
133644
Decal, Customer Maintenance
- -
138311
Decal. Lift Handle
7
138047
Decal, Battery
- -
165800X428
Pad Footrest LH STLT
8
166887
Decal, Deck Mower E2
- -
165799X428
Pad Footrest RH STLT
9
163204
Decal. Fender, Craftsman
- -
174323
Owner's Manual, English
10
156439
Decal. Fender Danger
- '
174324
Owner's Manual, Spanish
WHEELS & TIRES
KEY
PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
59192
65139
106222X
59904
106732X427
278H
Э040Н
106108X427
122082X
7152J
104757X
144334
DESCRIPTION
Cap Value Tire
Stem Value
Tire FTs 1 5 X 6 0 - 6 Service
Tube Inner Front #35060
Rim Asm 6"front White Service
Fitting Grease
Bearing Flange
Rim Asm 8"rear White Service
Tire R Ts 20 X 10-8 Service
Tube Rear 9 5X8 Service
Cap Axle BIk 1 50 X 1 00
Sealant, Tire (10 oz. tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
