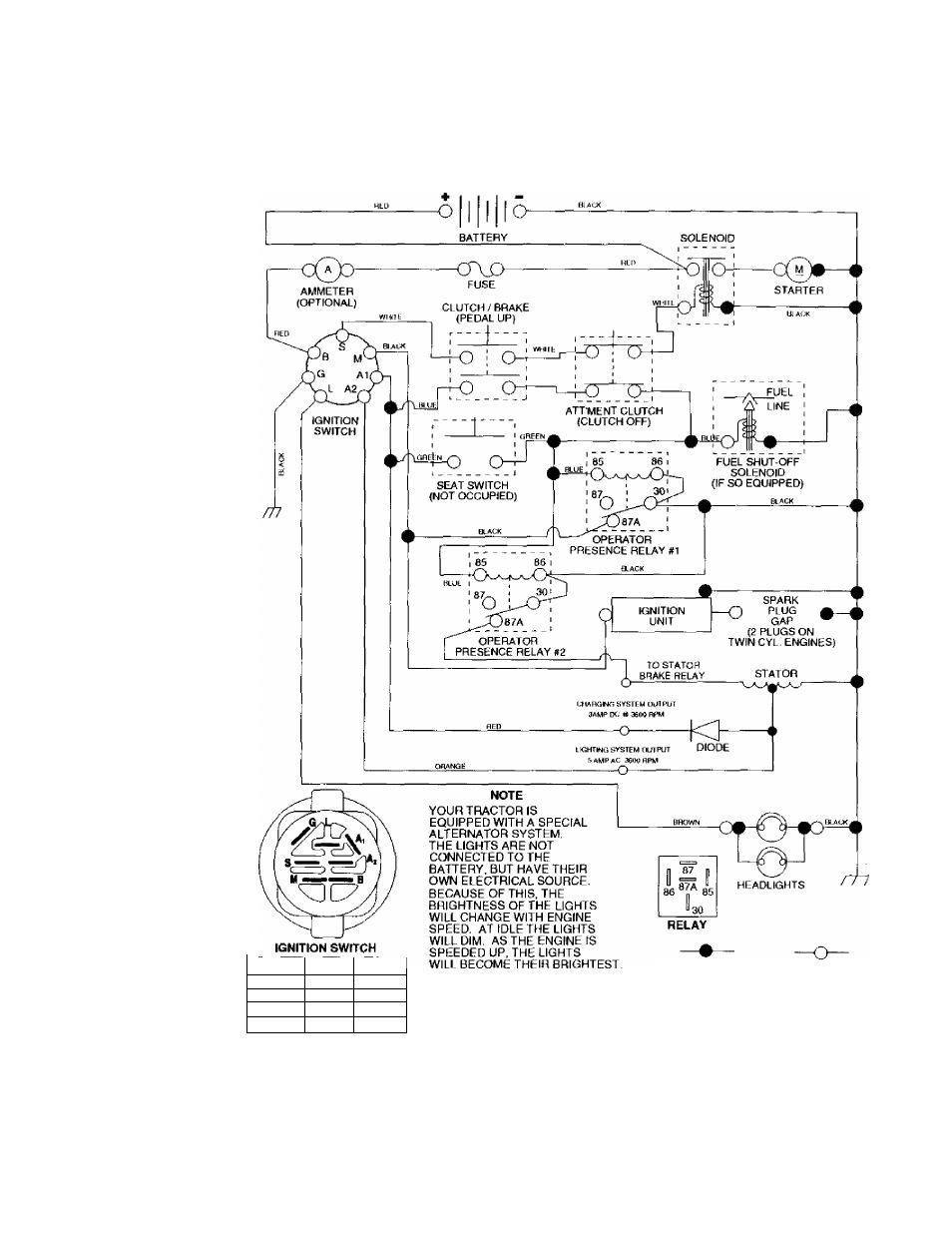

TRACTOR- - MODEL NUMBER 917.272057

SCHEMATIC

POSITION

CIRCUrr

“MAKE”

OFF

M+G+AI

NONE

RUN/LIGFIT

B+A1

A2+L

RUN

B+A1

NONE

START

B + S + Al

NONE

NON-

removable

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE;

IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.
