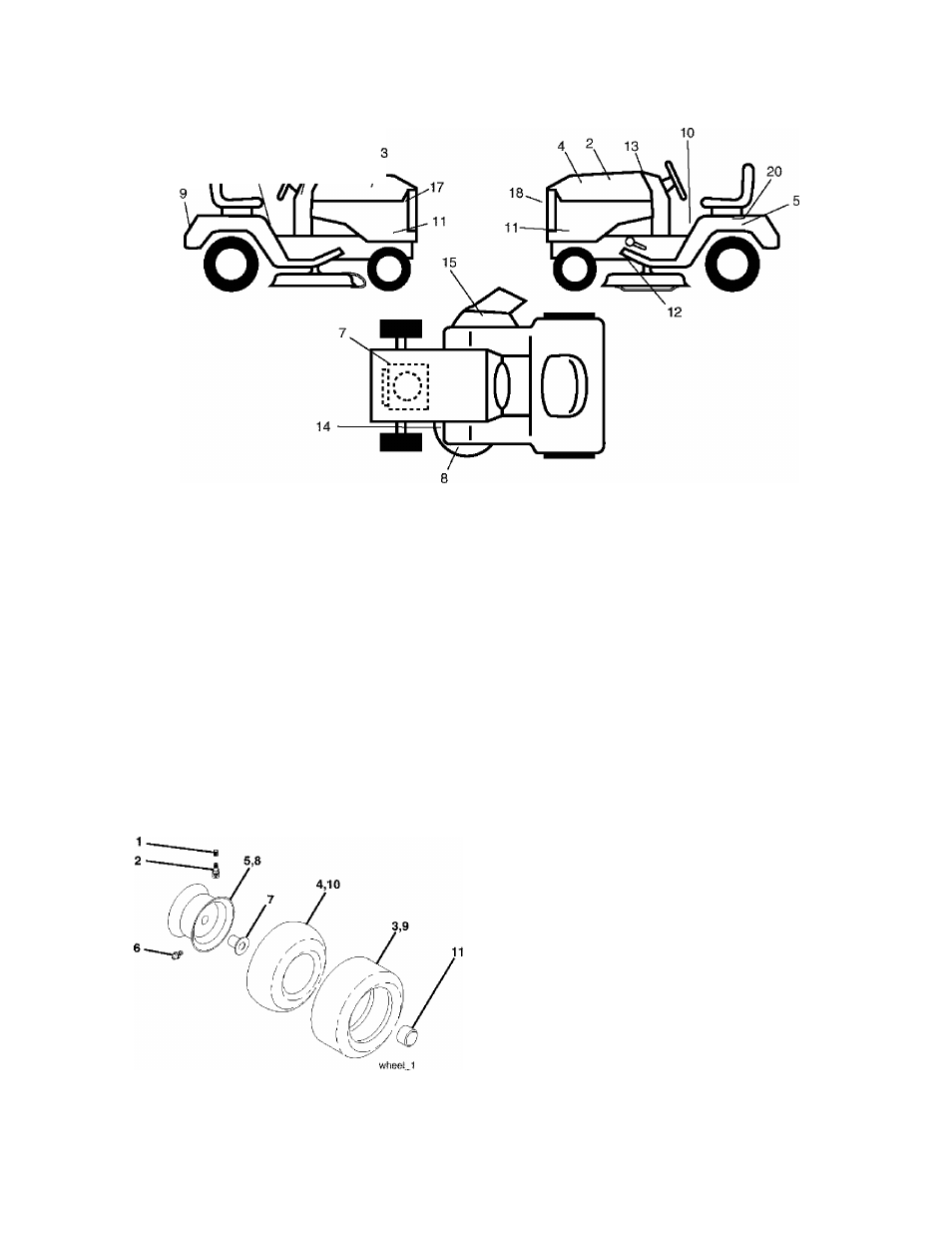

DECALS
TRACTOR - - MODEL NUMBER 917.273763
16 6
KEY PART
KEY PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
156811
Decal, Oper. instr.
14
160396
Decal, V-Belt Schematic
2
188959
Decal, Replacement
15
179128
Decal, Deck B 42”
3
186280
Decal, Hood, R.H.
16
164065
Decal, Strong WhI.
4
186281
Decal, Hood, L.H.
17
184842
Decal, Grille RH
5
138047
Decal, Battery
18
184843
Decal, Grille LH
6
133644
Decal, Customer Maintenance
20
149516
Decal Battery Dngr/Psn Eng
7
183794
Decal, HP Engine
, .
138311
Decal, Lift Handle
8
172331
Decal, Mower Srs
- -
166960
Decal, By pass
9
186282
Decal, Fender, Craftsman
- -
184310X428
Pad, Footrest LH STLT
10
156439
Decal, Fender Danger
- -
184311X428
Pad, Footrest RH STLT
11
186283
Decal, Panel Side
, .
192780
Manual, Owner's, English
12
146046
Decal, V-Belt Drive Schematic
, .
192781
Manual, Owner's, Spanish
13
183827
Decal, Dash Panel
WHEELS & TIRES
KEY PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
59192
65139
106222X
59904
106732X624
278H
9040H
106108X624
122082X
7152J
104757X428
144334
DESCRIPTION
Cap Value Tire
Stem Value
Tire FTs 1 5 x 6 0 - 6 Service
Tube inner Front #35060
Rim Asm 6” front White Service
Fitting Grease
Bearing Flange
Rim Asm 8” rear White Service
Tire R Ts 20 X 10-8 Service
Tube Rear 9 5x8 Service
Cap Axle BIk 1 50 X 1 00
Sealant, Tire (10 oz. tube)
NOTE:
Al! component dimensions given in U.S. inches
1 inch = 25.4 mm
