TRACTOR - - MODEL NUMBER 917.273763

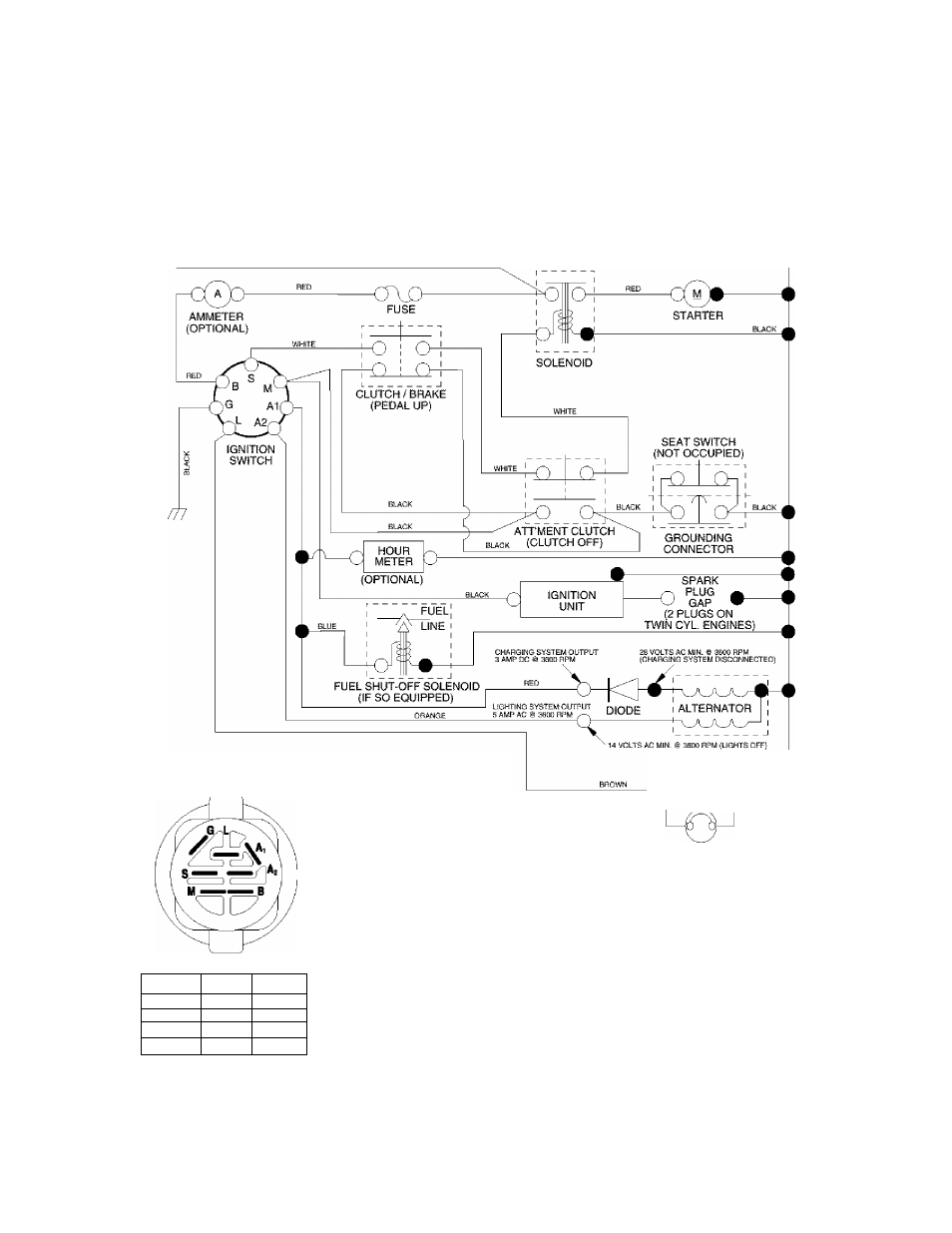

SCHEMATIC
+
-O
o
8
ATTERY
IGNITION SWITCH
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
HEADLIGHTS
NON-REMOVABLE
CONNECTIONS
POSITION CiRCUiT “MAKE”
OFF M'fG'i^AI NONE
RUN/LiGHT B^■A1 A2+L
RUN B+A1 NONE
START B + S + A1 NONE
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
02363
REMOVABLE
CONNECTIONS
