PRODUCT SPECIFICATIONS

HORSE POWER:

3.8

DISPLACEMENT:

10 cu. in. (163cc)

GASOLINE CAPACITY: 1.25 qt.

(unleaded regular)

LUBRICATION:

20 oz. SAE-30W

SPARK PLUG:

Champion RJ19LM

(Gap .030)

or Equivalent

GENERAL RECOMMENDATIONS

The warranty on this Edger does not cover

items that have been subjected to operator
abuse or negligence. To receive full value

from the warranty, the operator must main
tain the Edger as instructed in this manual.
The above chart is provided to assist the

operator in properly maintaining the Edger.

LUBRICATION

• After each 25 hours of use of your Edger,

apply light machine oil to all moving
parts.

• We recommend that the oil in the engine

crankcase be changed after each 25

hours of use thereafter.

NOTE:

If the Edger is being used in sandy

or dusty areas, change the oil more fre
quently to prevent premature engine wear.

TO CHANGE ENGINE OIL

• Disconnect the spark plug wire from the

spark plug.

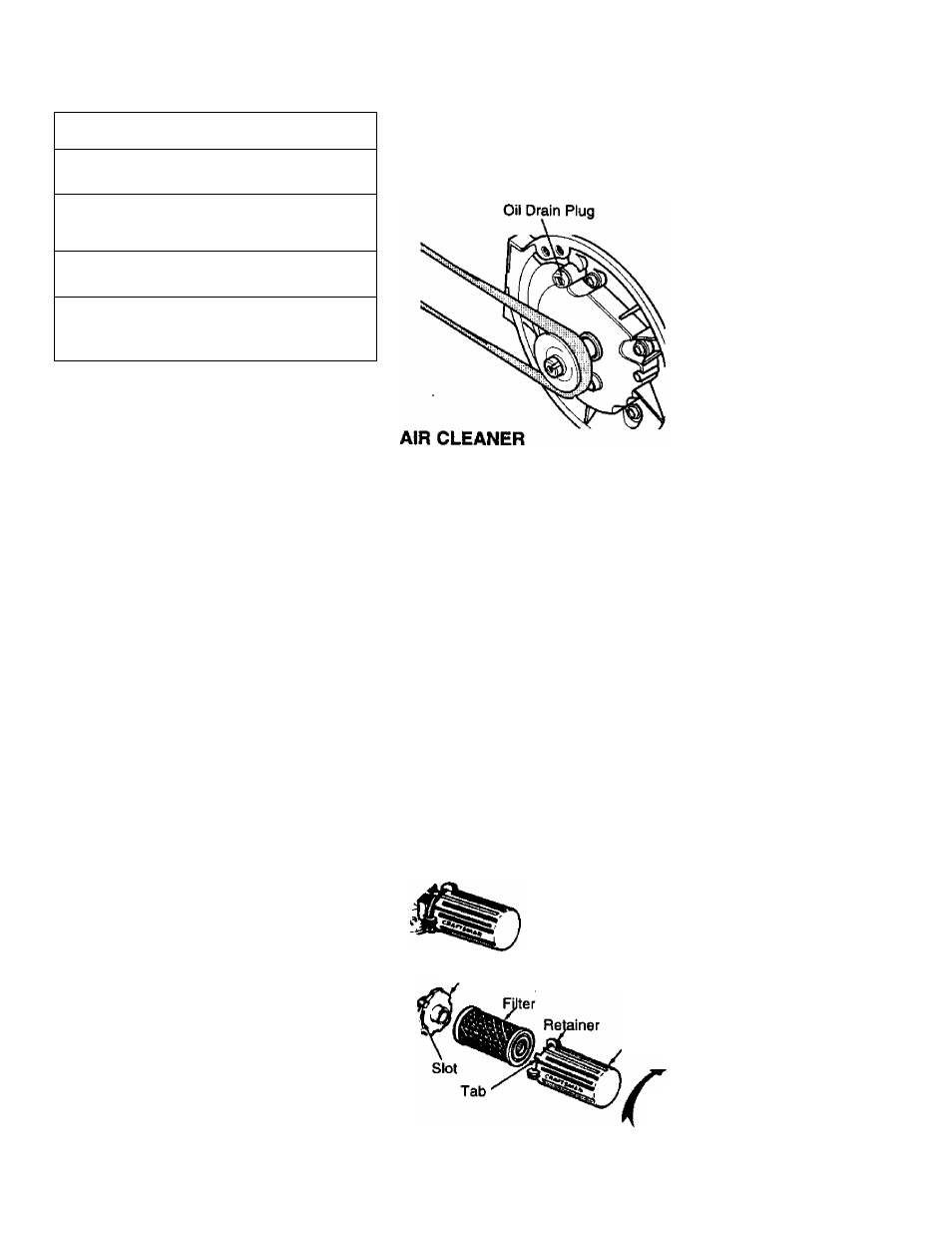

• Remove the oil drain plug as shown in

first figure on this page and drain the oil

into a flat pan.

• After draining all the oil, reinstall the oil

drain plug securely.

NOTE:

The oil will drain more freely when

the engine is warm.

• Remove the oil fill cap/dipstick. See first

figure on page 9.

• Fill the engine crankcase, pouring slowly.

DO NOT OVERFILL.

For approximate ca

pacity see

PRODUCT SPECIFICA

TIONS

on this page.

NOTE:

The quill assembly bearings are

factory sealed and wilt require no lubrica
tion.

• Reconnect the spark plug wire on the

spark plug.

Replace the filter once a year; more often
under dusty or dirty conditions.

DO NOT

attempt to clean or oil the air filter.

To install a new air filter, do the following:

• Disconnect the spark plug wire from the

spark plug.

• Turn the cover as shown below to the left

(counterclockwise) and remove the cover
and the air filter from the flange.

• Discard the air fitter.

• Clean the cover and the flange thor

oughly.

• Insert the new air fitter into the cover.

• Push the cover firmly against the flange

and turn it to the right (clockwise) as far
as it will go as shown in figure below. Be

sure the retainers are locked around the

flange.

• Reconnect the spark plug wire.

ATum cover to the left

(counterclockwise)

T to remove

Cover

Flange*

Turn cover
to the right

(clockwise)

to install
