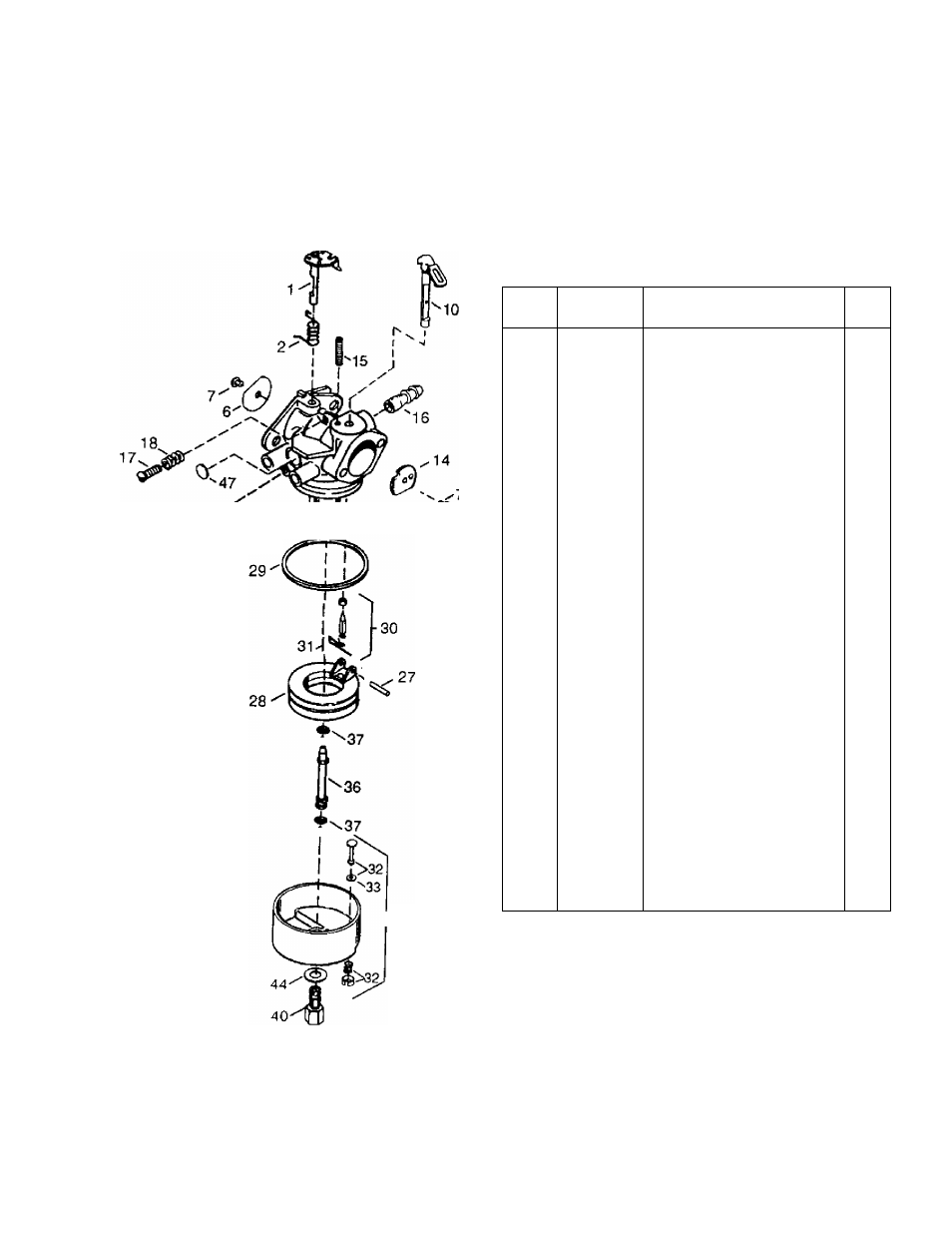

CARBURETOR
Craftsman Engine Model No. 143.999005 for Craftsman
Snow Thrower Model 247.888510
48-'*^ I *
'20A
- 25
Key
No.
Part
No.
Description
Qty.
0
640052
Carburetor (Incl. 184 of
Engine Parts List)
1
1
631776A Throttle Shaft & Lever Ass’y
1
2
631970
Throttle Return Spring
1
6
631778
Throttle Shutter
1
7
650506
Shutter Screw
2
10
632112
Choke Shaft & Lever Ass’y.
1
14
632174
Choke Shutter
1
15
630735
Choke Positioning Spring
1
16
632164
Fuel Fitting
1
17
650417
Throttie Crack Screw/ldle
Speed Screw
1
18
630766
Tension Spring
1
20
640016
Idle Restrictor Screw
1
20A
640053
Idle Restrictor Screw Cap
25
631951
Float Bowl Ass’y. {Incl. 32 &
33)
1
27
631024
Float Shaft
1
28
632019
Float
1
29
631028
Float Bow! “0” Ring
1
30
631021
Inlet Needle, Seat & Clip
(Incl. 31)
1
31
631022
Spring Clip
1
32
27136A
Bowl Drain Ass’y.
1
33
27554
Drain Plunger Gasket
1
36
640005
Main Nozzle Tube
1
37
632547
0 Ring
2
40
640055
High Speed Bowl Nut
1
44
27110
Bowl Nut Washer
1
47
630748
Welch Plug, Idle
Mixture Well
1
48
631027
Welch Plug, Atmospheric
Vent
1
35
