7. Place assembled gun and wand on pressure
washer holder.
8. Place pull cord into the wire bracket holder.
Pull the cord under the wire bracket to the right
of the wire loop.
Pull the cord under the wire bracket to the
right of the wire loop.
Lift the pull cord handle up and slide the cord
to the left sliding the cord into the wire loop.
Next slide handle behind the wire bracket to
the left of the wire loop.
Engine recoil will pull the cord into its final
position.
Checklist
Before going any further please review the following:
• Be sure you have completed assembly instructions.
• Double check all fittings to be sure they are tight.
IMPORTANT: Before any attempt to start your pres­
sure washer be sure to check engine oil (See Opera­
tion under Adding Engine Oil.)
OPERATION
Know Your High Pressure Washer
SPRAY GUN
ASSEMBLY
Read this Owner’s Manual and Safety Rules before
operation of your High Pressure Washer Compare
this illustration with our pressure washer to familiarize
yourself with the location of various controls and
adjustments. Save this manual for future reference.
PUMP- Develops high pressure.
PRESSURE REGULATOR- Allows you to adjust the
pressure of the outlet stream.
ENGINE RUN/STOP SWITCH- Sets engine in starting
mode for recoil starter — Stops running engine.
RECOIL STARTER- Used for starting the engine
manually.
SPRAY GUN ASSEMBLY (Contains Gun and Wand)-
Controls the application of water onto cleaning surface
with trigger device.
OIL FILL- Port where engine oil is poured.
GASTANK/CAP- Cap is removed and unleaded
gasoline is poured.
CHEMICAL INJECTION TUBE AND FILTER- Mixes
water and detergent in outlet water flow.
HIGH PRESSURE OUTLET- Connection for high pres-
jre hose.

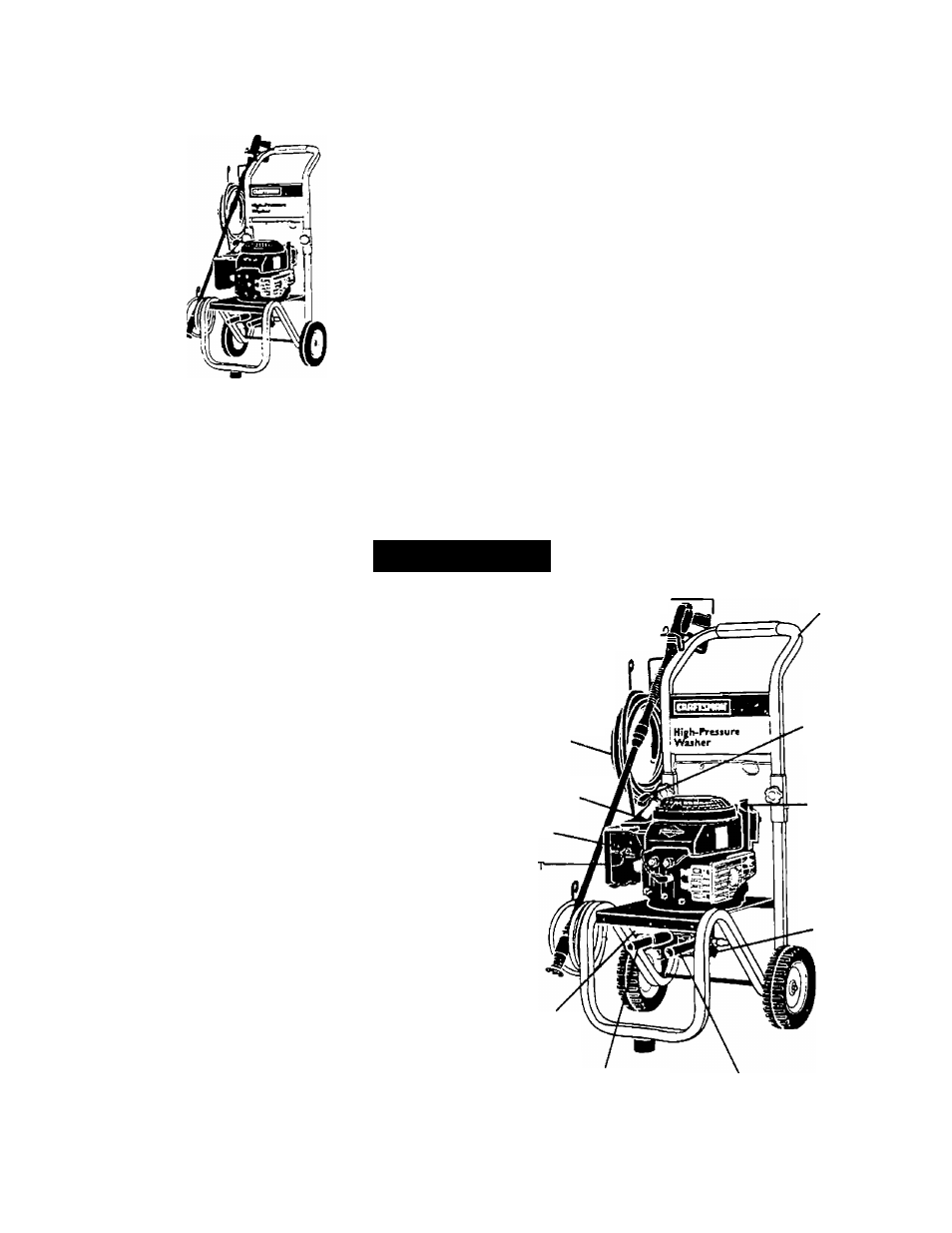

HIGH PRESSURE
HOSE
GAS TANK/CAP
CHOKE
ENGINE
STOP/STAR
CHEMICAL
INJECTOR
TUBE & FILTER
HANDLE
RECOIL
STARTER
OIL FILL
PUMP
HIGH
PRESSURE
OUTLET
WATER INLET
CONNECTION
CHOKE- Lever used for starting unit.
