ASSEMBLY INSTRUCTIONS

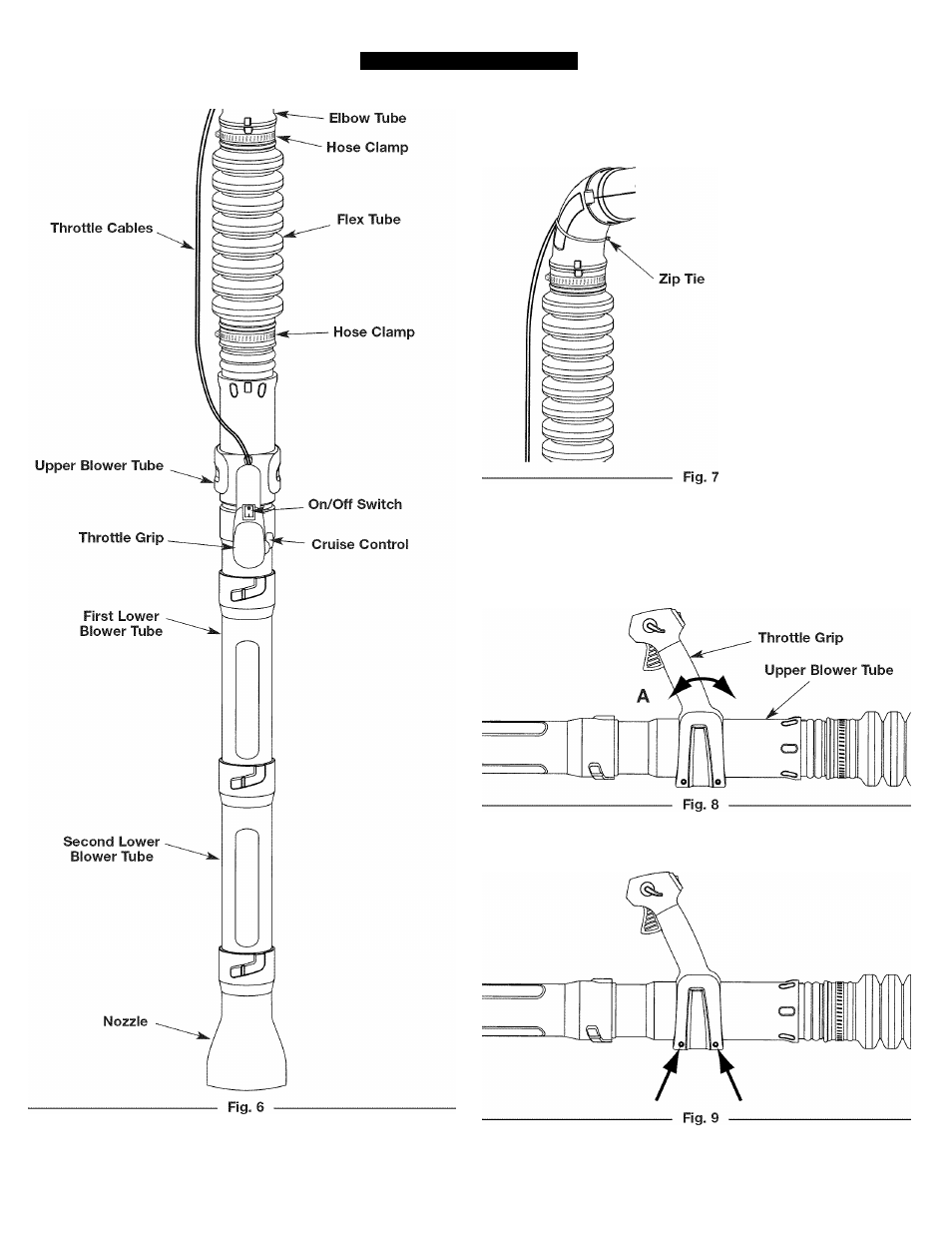

The completed blower tube should look like Figure 6.
A
WARNING:
To avoid serious personal Injury, make
sure that the blower tubes are locked In place or firmly
Installed.
Secure the Throttle Cables
Place a zip tie around the elbow tube and the throttle cables (Fig.
7) as shown, making sure not to crimp the cables.
□
Zip Tie
Adjusting the Throttle Grip
1.
Move the throttle grip to a location on the upper blower tube
that Is comfortable for you (Fig. 8).
2.
Using a Torx T-20 Torx screwdriver, tighten the two screws at
the bottom of the throttle grip (Fig. 9).
