Craftsman 917.275370 - Manual (Page 40)

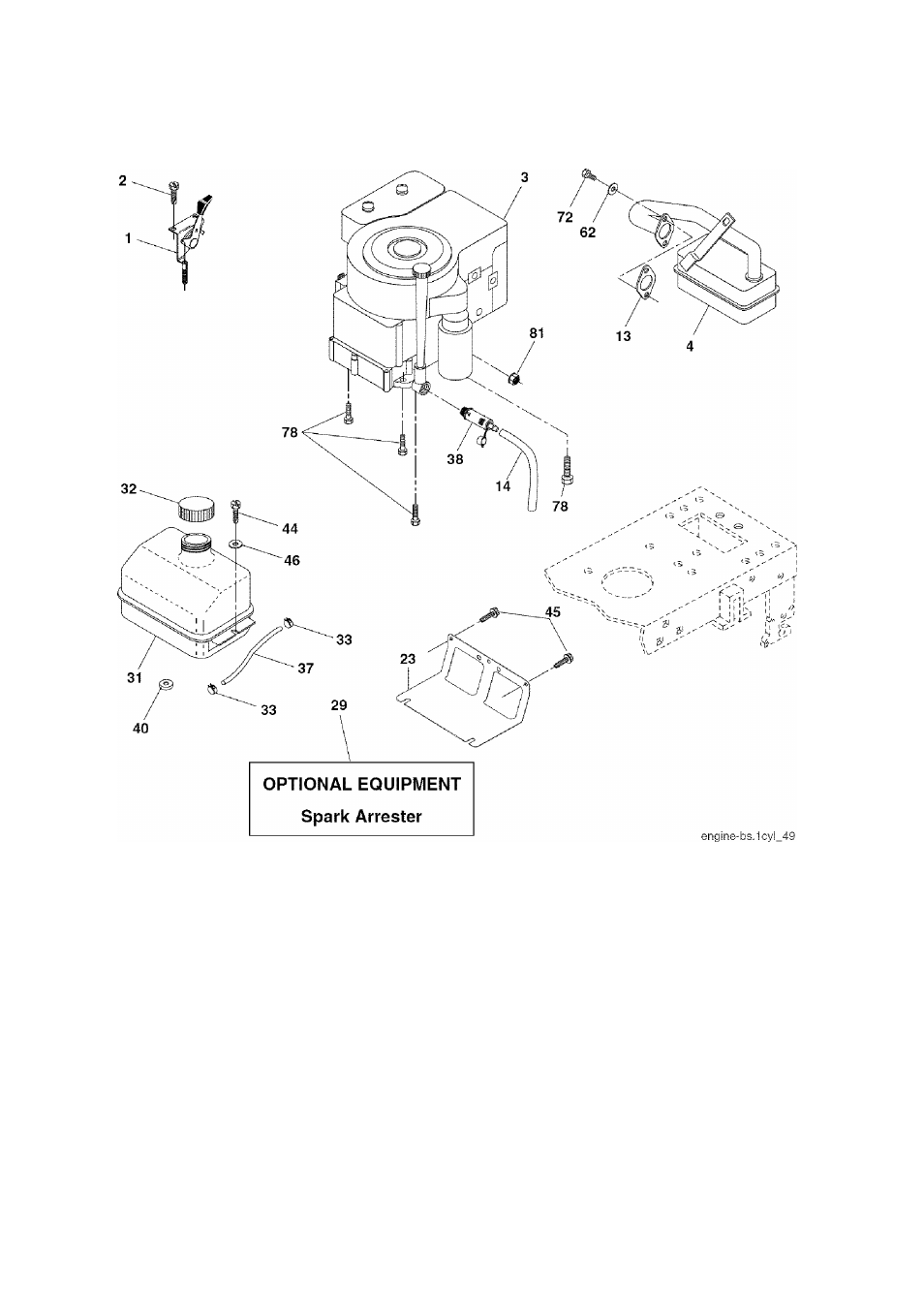

TRACTOR--MODEL NUMBER 917.275370
ENGINE
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 170545 Control, Throttle/Choke 37 137040 Line, Fuel
2 17720408 Screw, Hex Head, Thread Cutting 38 181654 Plug, Drain Oil Easy
1/4-20x5/8 40 124028X Bushing Snap
3 ...................... Engine, Briggs Model No. 44 17670412 Screw, Hex Washer Head, Thd.,
31C707-0230-E1 Roll. 1/4-20
X
3/4
(See Breakdown) 45 17000612 Screw Hex Wsh Thdr 3/8-16 x 3/4
4 137352 Muffler 46 19091416 Washer 9/32 x 7/8 x 16 Ga.
13 165291 Gasket 62 10010500 Washer Split
14 148456 Tube Drain Oil Easy 72 71070512 Screw Hex Hd Cap 54/16-18 x 3/4
23 169837 Shield Brn/Dbr Guard 78 17060620 Screw 3/8-16 X 1-1/4
29 137180 Arrestor, Spark 81 73510400 Nut Keps Hex 1/4-20 unc
31 187750 Tank, Fuel
NOTE: All component dimensions given in U.S. inches
32 140527 Cap Assembly Fuel
i inr'h _
0 ^ Á mtn
33 123487X Clamp, Hose 1 II lOi i — ¿.O.H 1 1 I I 1 1
