TRACTOR--MODEL NUMBER 917.275370

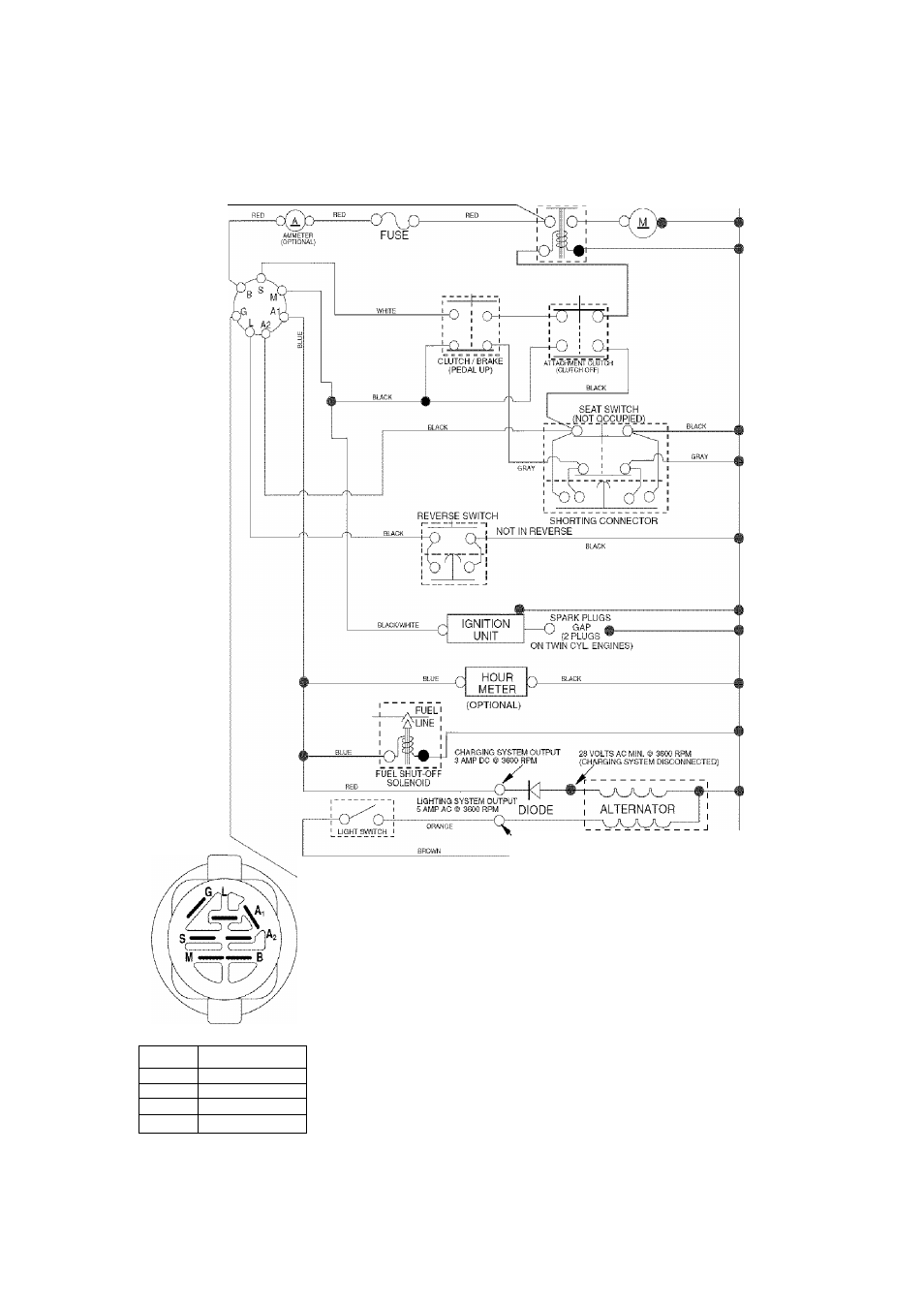

SCHEMATIC

BATTERY

I I _

) I I l o

SOLENOID

STARTER

•14 VOLTS A^IN. @ 3600 RPM (LIGHTS OFF)

BLACK

IGNITION SWITCH

POSITiON

CIRCUIT “MAKE”

OFF

M+G+A1

RUN/OVERRiDE

B+A1

RUN

B+A1 L+A2

START

B + S + A1

NOTE

YOUR TRACTOR IS

EOUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.

02836

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE:

IF WIRING INSULATED CLIPS

WERE REMOVED FOR SERVICING OF

UNIT, THEY SHOULD BE REPLACED

TO PROPERLY SECURE YOUR WIRING.
