TRACTOR - - MODEL NUMBER 917.272230

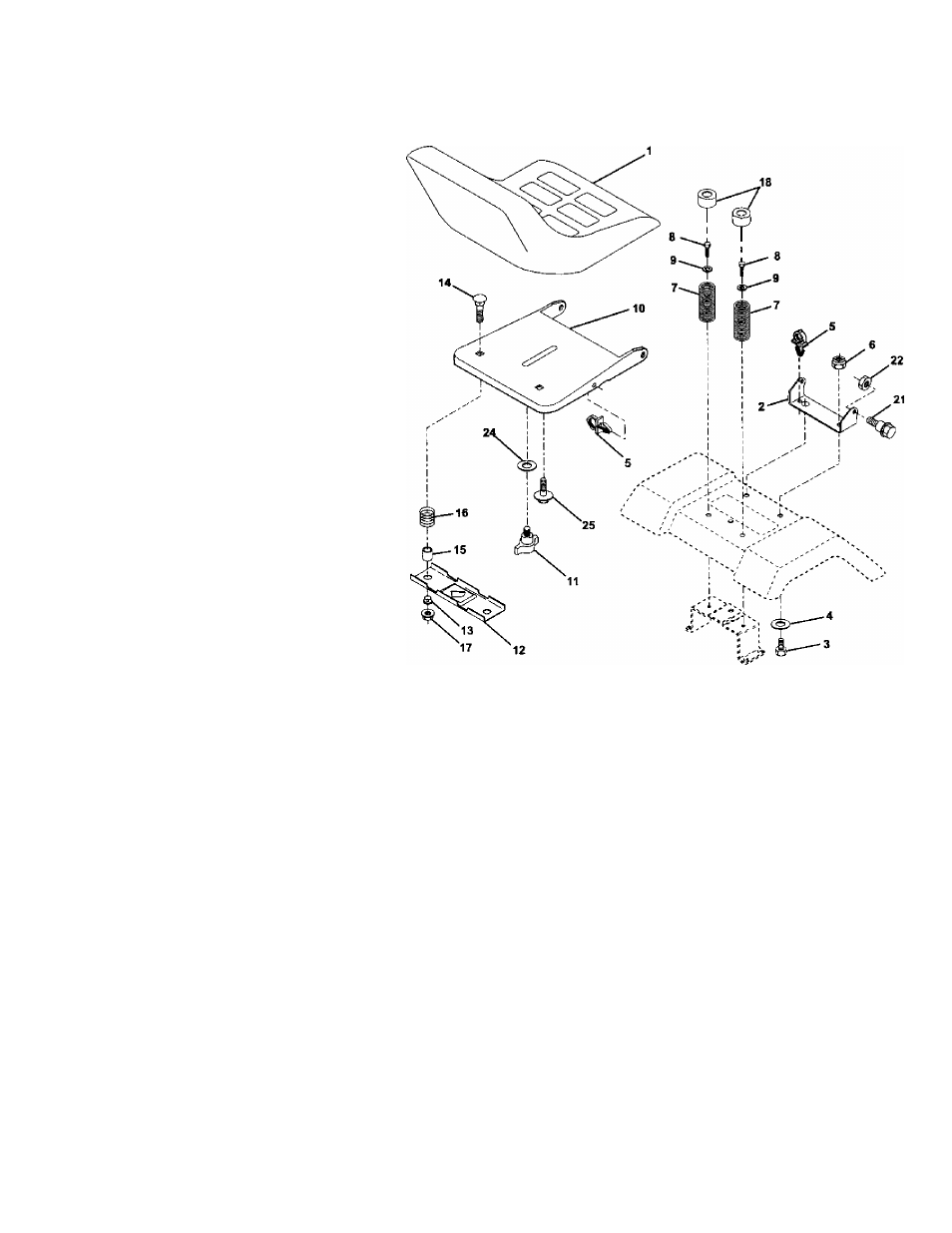

SEAT ASSEMBLY
KEY PART KEY PART
MO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 175134 Seat 14 72050412 Boit, Carriage 1/4-20x1-1/2
2 140551 Bracket, Pivot. Seat 15 121249X Spacer, Split
3 71110616 Bott 16 123740X Spring
4 19131610 Washer 13/32 x 1 x 10 Gauge 17 123976X Locknut, Flange 1/4 Grade 5
5 145006 Clip, Push-In Hinged 18 124238X Cap Spring Seat
6 STO541437 Nut 21 171852 Bolt. Shoulder 5/16-18 UNC
7 12418IX Spring, Seat 22 STD541431 Nut
8
9 17000616
19131614 Screw 3/8-16x1-1/2
Washer 13/32 x 1 x 14 Gauge 24 19171912 Washer 17/32x1-3/16x12
Gauge
10
11 174894
177957 Pan. Seat Emboss QCK Conn.
Knob Seat 25 127018X Bolt, Shoulder 5/16-18 x .62
12
13 121246X
121248X Bracket, Switch Mounting
Bushing, Snap
NOTE: Ah component dimensions given In U.S. Inches
1 incii = 25.4 mm
