9
WIRING: 5-PIN Connector
Pink: (+12V) +/- Diesel Glow Plug Input or Car Jack Input (Programmable Input Wire)
+/- Glow Plug Input (Diesel Vehicles Only)
Connect Pink wire to indicator circuit that shows a (- or +) Signal while the “WAIT TO START LAMP” is on.
When this wire is used, the system will wait until light turns off before attempting a remote start. Note: This
input is jumper selectable for Positive or Negative type signals. See Jumper Pin diagram (Pg. 26) for jumper
configuration.
Carjack Trigger
When using Carjack protection, connect this Pink wire to a toggle switch, or positive door trigger or ignition
depending on your level of Carjack protection. When +12V is applied to this wire, with the IGN on, then
Carjack is armed. If a door is opened then closed, a Carjack countdown will begin. See Diagram Below for
wiring configurations. DO NOT connect the Pink Carjack wire to Ignition unless there is extreme danger of a
Carjack. When using the Ignition, Carjack is armed all the time and must be reset each time a door is opened
and closed.
+
12 V
PINK

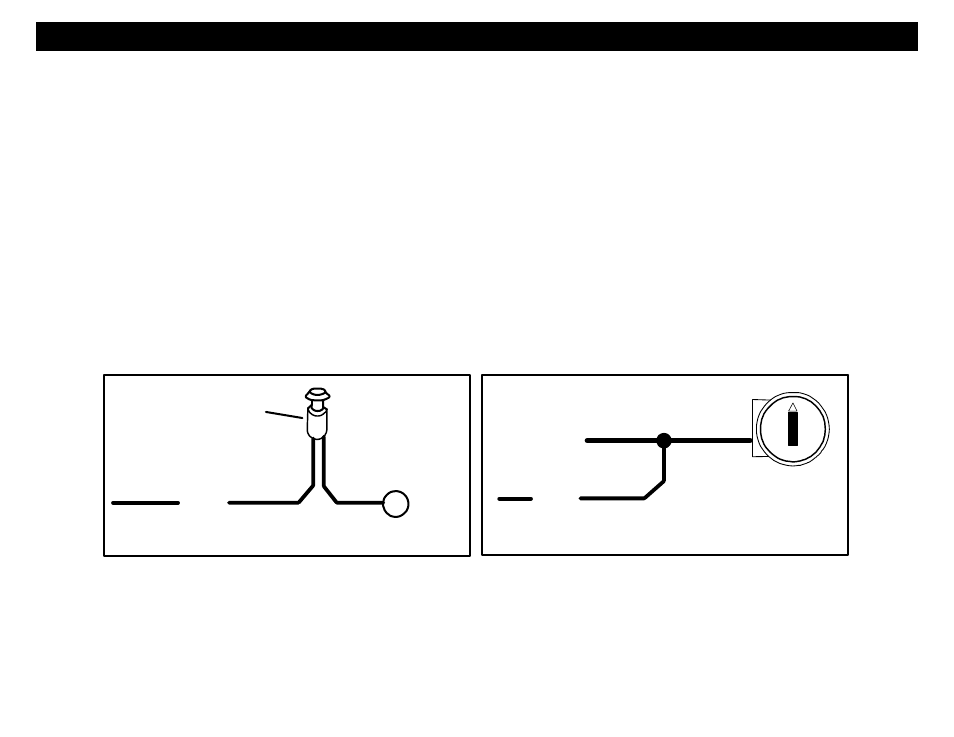

OPTIONAL CAR JACK WIRING:
HIDDEN BUTTON or
TOGGLE SWITCH
(Not Included)
IGN SW
+ IGN
CONTROLLED W/SWITCH
PINK
FULL-TIME CARJACK
White: (+12V) Brake Reset
Connect the White wire to the side of brake pedal switch that shows +12 volts ONLY when pedal is depressed. This
will turn off the remote start if someone attempts to drive the car without the keys or if the Ignition key is not turned
on all the way.
