Page 4

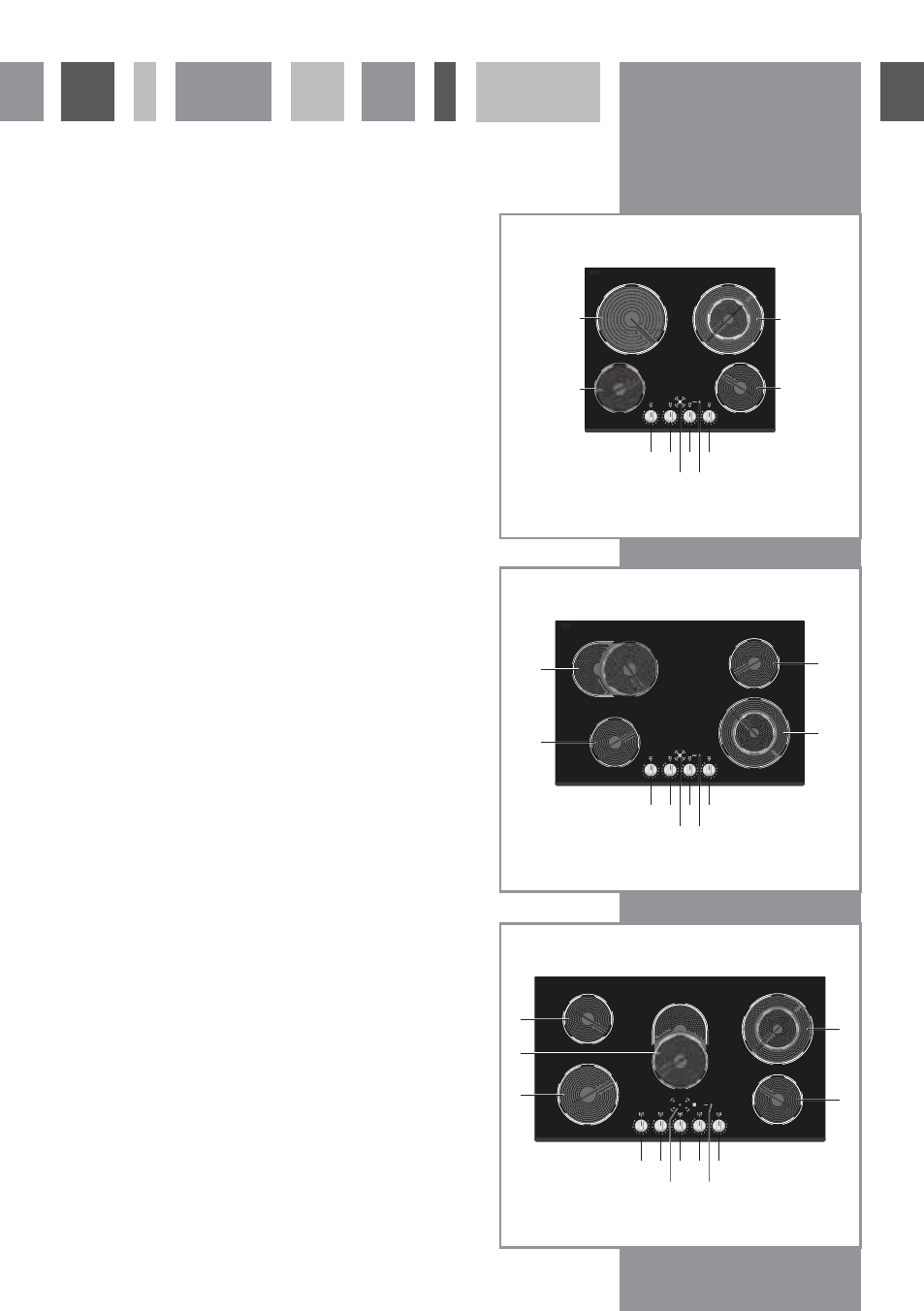

Using your hob
HVC60
Zones:
1. Front left 1.2 kW 140 mm
2. Rear left 2.3 kW 210 mm
3. Rear right 0.75/2.2 kW 120/210 mm dual
4. Front right 1.2 kW 140 mm
Control panel:
5. Front left zone control
6. Rear left zone control
7. Rear right zone control
8. Front right zone control
9. Residual heat indicators
10. Power indicator light
HVC70
Zones:
1. Front left 1.2 kW 140 mm
2. Rear left 0.8/2.2 kW 180x260 mm oval dual
3. Rear right 1.2 kW 140 mm
4. Front right 0.75/2.2 kW 120/210 mm dual
Control panel:
5. Front left zone control
6. Rear left zone control
7. Rear right zone control
8. Front right zone control
9. Residual heat indicators
10. Power indicator light
HVC90
Zones:
1.
Front left 1.8 kW 180 mm
2.
Rear left 1.2 kW 140 mm
3. Centre 0.8/2.2 kW 180x260 mm oval dual
4. Rear right 0.75/2.2 kW 120/210 mm dual
5. Front right 1.2 kW 140 mm
Control panel:
6. Front left zone control
7. Rear left zone control
8. Centre zone control
9. Rear right zone control
10. Front right zone control
11. Residual heat indicators
12. Power indicator light
3
Fig.1
Fig.2
Fig.3
2
3
4
1
5
6
7
9 10
8
2
3
4
1
5
6
7
9 10
8
2
4
5
1
6
7
8
9
11
12
10
3
