How to Install the Hob
How to install the hob:
Overall dimensions of the hob: HVC60 Width 590mm Depth 510mm
HVC70 Width 770mm Depth 510mm
HVC90 Width 900mm Depth 510mm
Worktop cut-out dimensions: HVC60 Width 560mm Depth 490mm
HVC70 Width 740mm Depth 490mm
HVC90 Width 870mm Depth 490mm

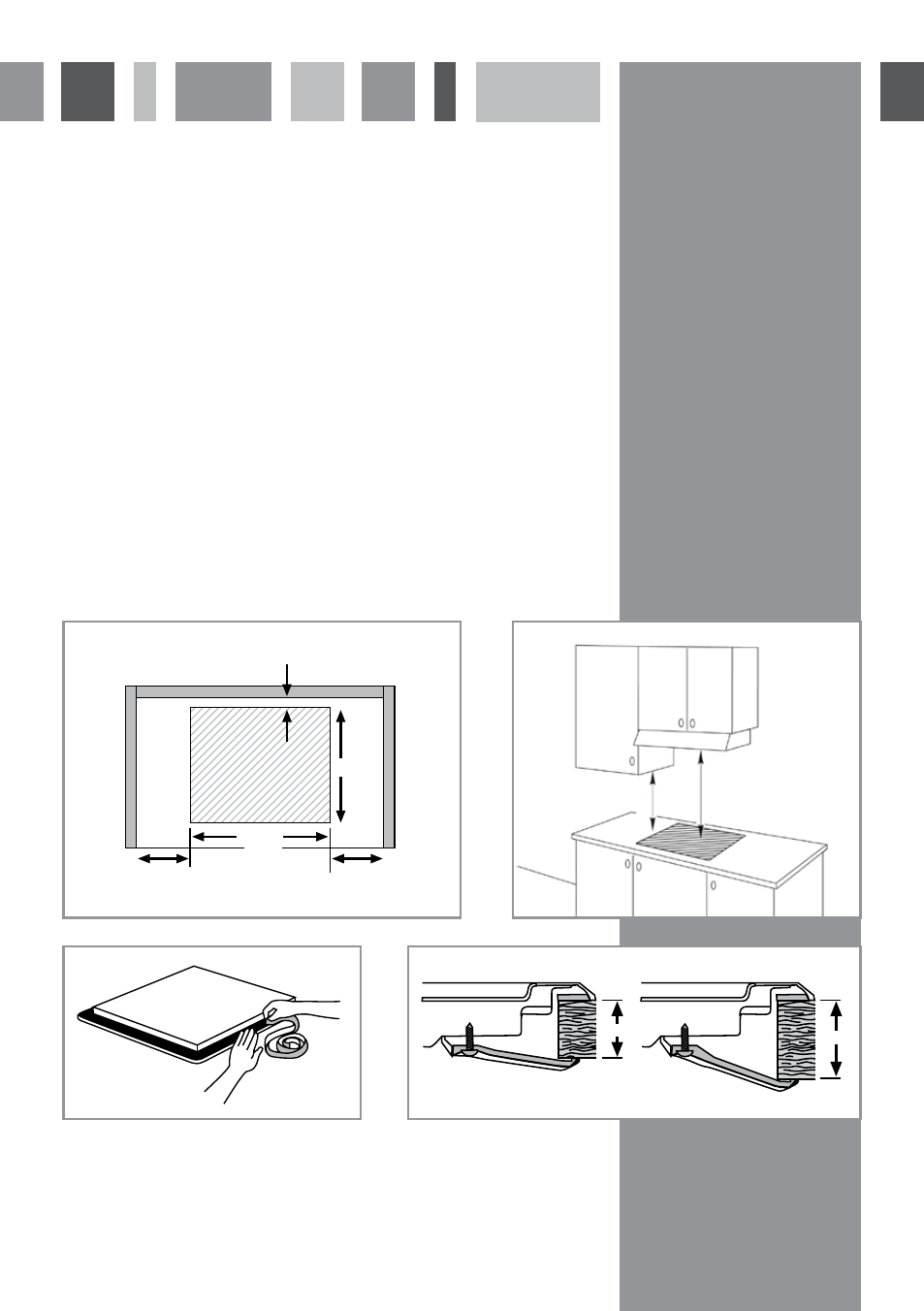

1. Make the required hole in the worktop. Before doing this, you must check the instructions supplied with any cooker hood
to ensure that you will have the required clearance. The cut-out (Fig.12) shows a 60mm gap from the wall to the cut-out
edge. The distance from the hob, when fitted, to the back wall is 50mm. If a splashback/worktop upstand is to be fitted,
take this into account when cutting the hole. The minimum distance that the hob should be positioned away from the rear
wall or splashback is 50mm.
2. Position the hob seal, as shown in (Fig.14), ensuring that the ends meet without overlapping. Do not use silicone type sealant.
3. Secure the hob to the worktop using the fixing brackets and screws supplied, as shown in (Fig.15). Remove any excess
sealant after tightening the brackets. Do not over-tighten the fixing brackets.
Fig.13
400mm
650mm
65mm
470mm
550mm
150mm 150mm
Fig.12
185mm 185mm
60mm
490mm
560mm
740mm
870mm
190mm 190mm
Fig.14
3cm
4cm
Fig.15
