I

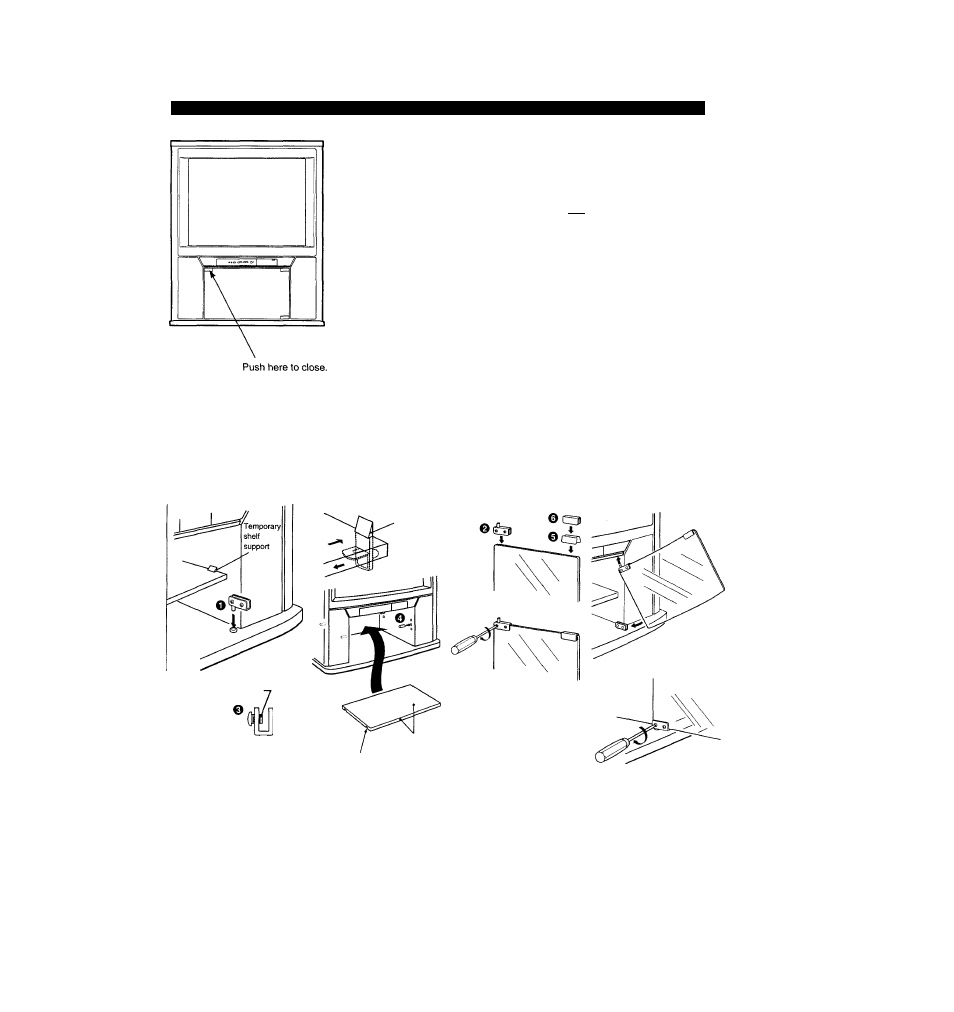

Installing the Glass Door and VCR Shelf (KV-27TW77/27TW78/32TW67/32TW68/32TW77/32TW78 only)
e
o
o
Bottom Hinge
Top Hinge
Screw 4x4
Metal pin
Plate pad
Push plate
o ol
Ö®
QZZD
□
To open, push again.
Check that the projection of
the screw through the hinge
allows for proper installation
of the hinge to the glass,
then insert the bottom hinge
O
into the bushing located
on the cabinet bottom.
Check projection of this
area of screw
Push
Press the upper part of the
temporary shelf supports
and detach the shelf. Insert
the metal pin shelf supports
O
and, aligning the
grooves with the supports,
insert the shelf.
Temporary
shelf
support
Coated side
Align the grooves with
O
Attach the top hinge © to
one end of the glass door,
and tighten the screws.
Attach plate pad © to the
other end then push plate ©
over the plate pad.
Pushing the glass door
hinge up into the hole
located on the cabinet
ceiling, slide the door into
the bottom hinge, then
tighten the screws.
