7 3311857

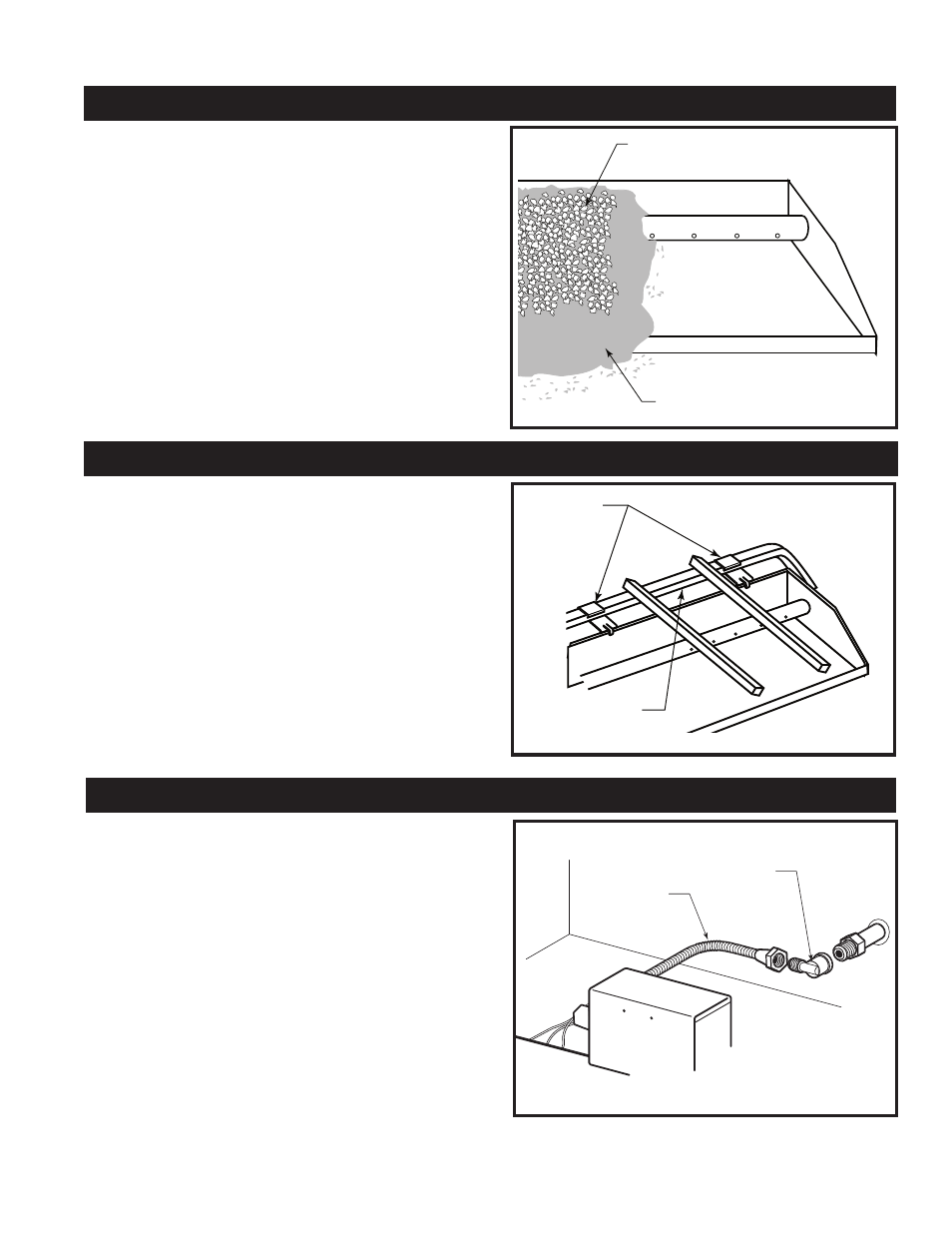

Adding Pan Material
1. Open the bag of Vermiculite and spread it
evenly across the Burner Pan, to the top, as
shown in Figure 5. You may overflow the front
and sides of the pan to cover the entire pan
and connecting hardware.
2. Next, open the bag of Glowing Embers and
place them on top of the Vermiculite, evenly
across the Burner Pan. Be sure to separate
the Glowing Embers into very small pieces
before placing them.
Connection To Gas Supply
1. Hook the U-Shaped part of the Grate Clips over
the back horizontal bar of the Grate, as shown
in Figure 6. Repeat with the other Clip.
2. Slide the rear edge of the burner pan into the
three-pronged slot in the front edge of the grate
clip, as shown in Figure 6.
1. Center the burner pan from left to right in the
fireplace and with the back of the grate against
the back wall of the fireplace.
2. Attach the Gas Supply Fitting onto your fire-
place’s gas supply pipe. Remember to use pipe
thread sealant or teflon tape on this connection.
3. Attach one end of the Flexible Gas
4. Connector to the brass fitting on the back of
the control valve, as shown in Figure 7.
5. Attach the other end of the Gas Connector to
the flared side of the Gas Supply Fitting.
Grate Clip Installation
LG216
ASHK
pan material
11/29/01 djt
Figure 5
Vermiculite
Glowing Embers
LG216
LG216
grate clip
11/29/01 djt
Figure 6
Grate Clip
Back Bar Of Grate
LG217
Flexible Gas
Connector
Figure 7
Gas Supply Fitting
LG218
