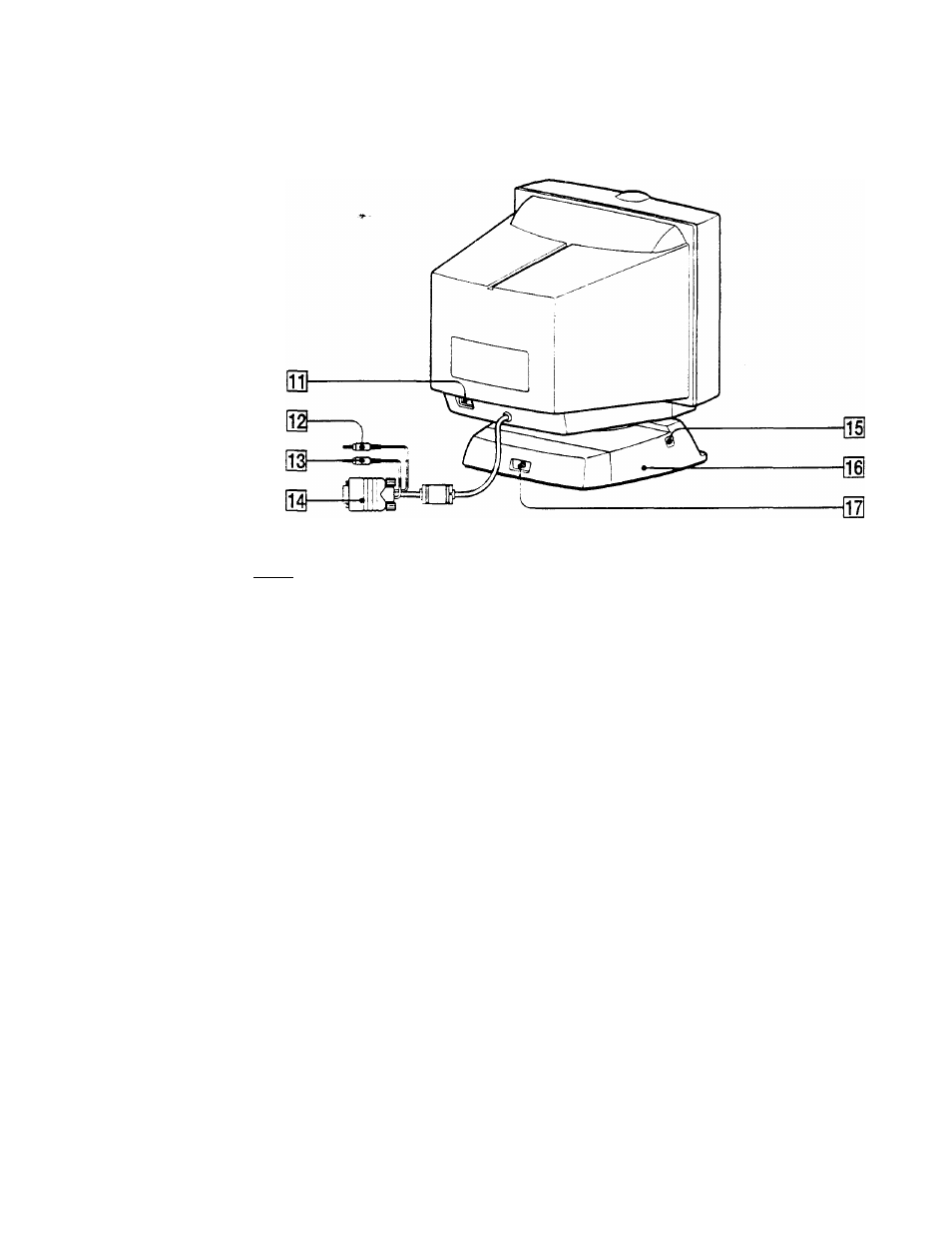

Rear
(TT|
AC IN connector
01
a
Audio plug (green)
01
\ M IC plug (red)
□ Video
signal cable
(blue)
01
0 Headphones jack
Tilt-Swivel
Subwoofer
output
jack
Connect the supplied power cord (page 13).
Connect to the computer's audio output
(page 12).
Connect to the computer's microphone input
(page 12).
Connect to the computer's video output
(page 12).
Connect standard mini-plug headphones (not
supplied). The speakers are turned off when
headphones are connected.
-Adjusts the angle of the display (page 15).
Connect to a subwoofer's input inot supplied).
