2 Channel Professional Audio Amplifier Crestron CNAMPX-2X60
CAUTION: Due to the heat dissipation of the CNAMPX- 2X60 (and all audio
amplifiers in general), allow at least one free rack space above and below the
CNAMPX-
2X60 for proper circulation.
NOTE: Reliable grounding of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct
connections to the branch circuit. (e.g., use of power strips).
Hookup
Refer to the hookup diagrams after this paragraph, and make the connections
appropriate for the intended operating mode of the unit (stereo/mono or bridged).
Other than making the power connection last, complete the connections in any order.
The power cord is supplied, but RCA audio cables, speaker wire, or Cresnet cables
are not provided.
NOTE: Refer to “Network Wiring” on page 6 when making connections to the
ports labeled NET.

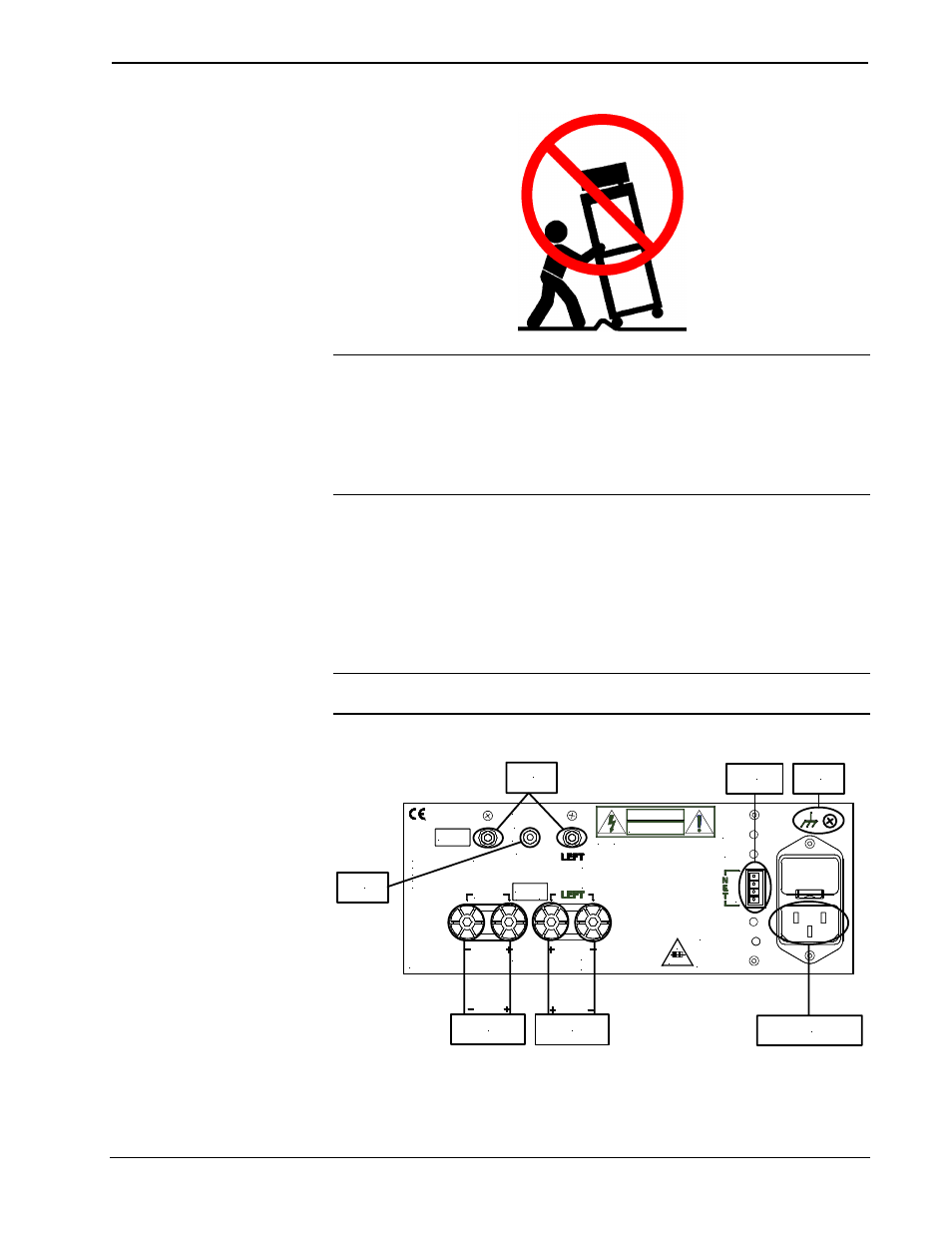

Hookup Connections for the CNAMPX-2X60 in Stereo or Mono (Summed) Modes
INPUTS
SUMMING
S T
BRIDGED RIGHT
BRIDGED
ATTENTION:
POUR LA PROTECTION CONTRE LES RISQUES
BRIDGED
+ –
D'INCENDIES N'UTILISEZ SEULEMENT LE MÊMES TYPE DE
FUSIBLE. DÉBRANCHEZ LE CÂBLE D'ALIMENTATION
AVANT DE CHANGER LE FUSIBLE.
RISQUE DE CHOC ELECTRIQUE NEPAS OUVRIR AVIS:
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
PWR
NET
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE
HAZARD USE ONLY SAME TYPE AND RATING FUSE.
DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE. 24
Y
Z
G
OVERRIDE/
SETUP
F
8A 125V
120V~60Hz
960 WATTS MAX MADE IN THE USA
DATE: 4 - 8 OHM
OUTPUTS
CRESTRON
RIGHT
FROM AC OUTLET
OR POWER STRIP
AUDIO
SOURCE
MODE
SWITCH
AUDIO
SOURCE
GND(S)
CONTROL
SYSTEM
RIGHT
SPEAKER(S)
LEFT
SPEAKER(S)
8 • 2 Channel Professional Audio Amplifier: CNAMPX-2X60 Operations Guide – DOC. 8178
