Getting Started
Unpacking
Check that you received the following items:
• Audio connecting cords (2)
Hooking Up the System
This section describes how to hook up the tape deck to
an amplifier. Be sure to turn off the power of each
component before making the connections.
To purchasers of the TC-WR681
For information on connecting your tape deck to the
TA-AV581 Amplifier, refer to the Operating Instructions
included with the TA-AV581.
To purchasers of the TC-WE525/WE425
Follow the instructions below to connect your tape deck to
an amplifier.
TC-WE525/WE425
Hookups
• Connecting the tape deck to an amplifier
Connect the amplifier to the LINE IN/OUT connectors
using the supplied audio connecting cords.
When connecting an audio connecting cord, be sure to
match the color-coded cord to the appropriate jacks on the
components: Red (right) to Red and White (left) to White.
Be sure to make connections firmly to avoid hum and
noise.

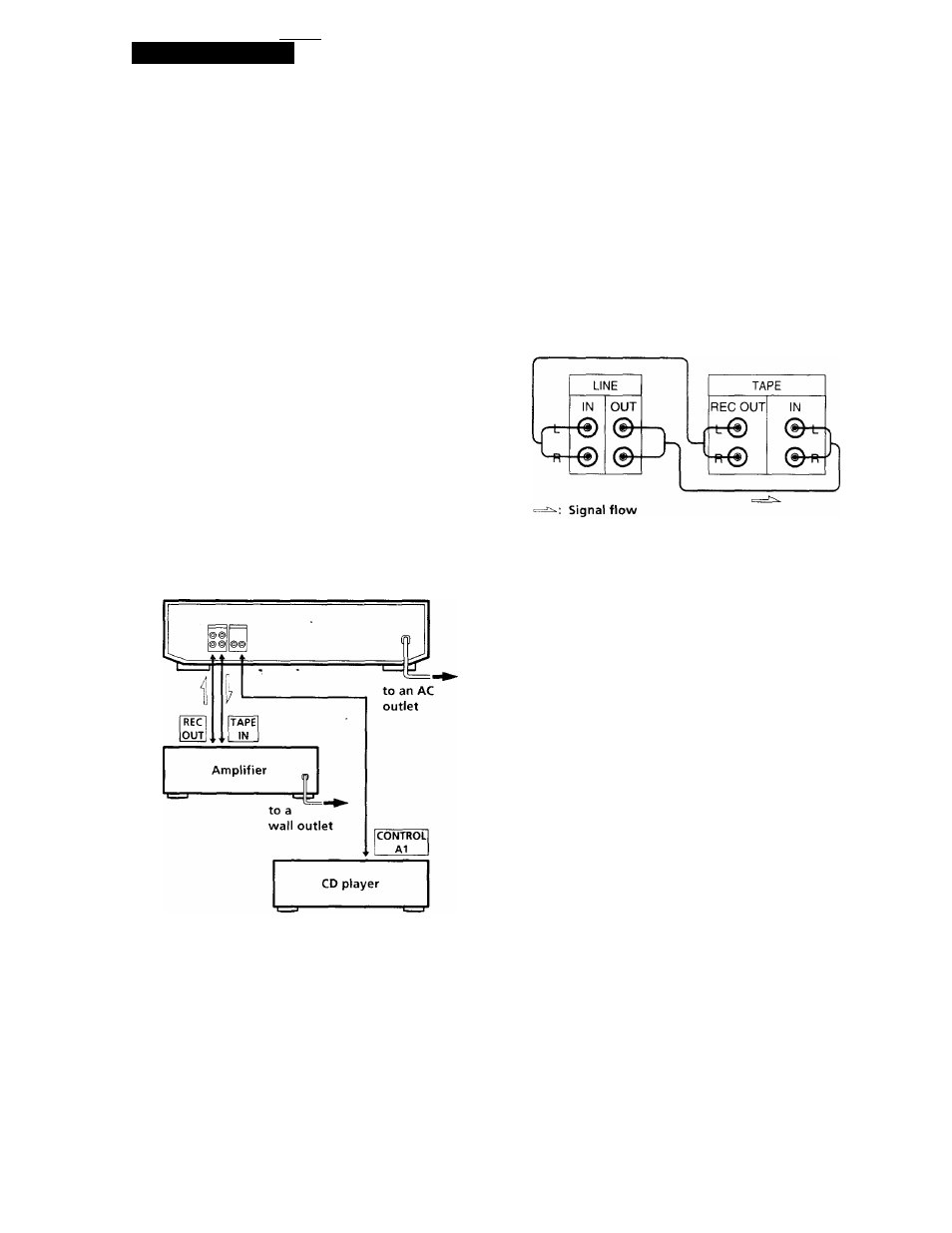

Connect the tape deck to the amplifier as shown below.
Tape deck Amplifier
Connecting the tape deck to a CD player equipped
with CONTROLAI connectors (TC-WE525/WE425 only)
For information on connections through the CONTROL
At connectors, refer to the pamphlet included with this
manual.
Connecting the AC power cord
Connect the AC power cord to an AC outlet.
Where do / go next?
Now you're ready to use your tape deck.
For basic operations, go to pages 5 to 7; for advanced
operations, go to the sections starting from page 8.
-: Signal flow
