Digital Television Receiver

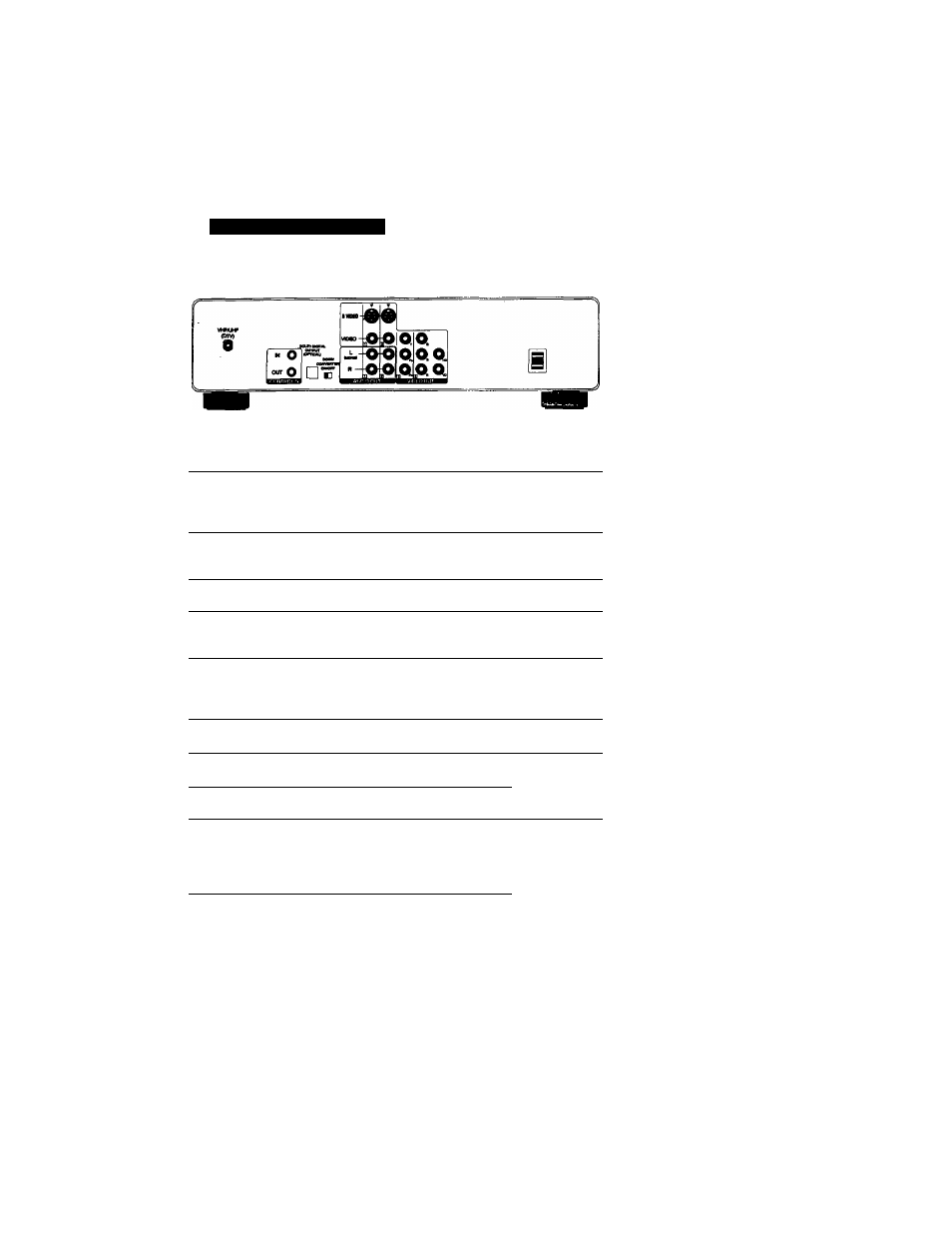

Rear Panel Controls
Connections
and
Control Function
Description
Cable Type
CONTROL'S IN/OUT
Allows the DTV Receiver to receive (IN)
and send (OUT) remote control signals to
other Sony infrared-controlled audio or
video components.
Audio mono
or stereo
miniplug
S-VIDEO (2)
Coimects to the S VIDEO jack of your
VCR or other Sony S VIDEO equipped
video component.
S-Video
(4-pin mmi
DIN)
VIDEO OUT (2)
Cormects your DTV Receiver to your TV
or VCR's video input.
Video
(RCA-type)
GBR and H
d
/V
d
Connects your DTV Receiver to your
High Definition television.
Video
(Component
RGB Cable)
Y, PBi P
r
'
■Cormects your DTV Receiver's
component video (Y, P
b
, PR) to a standard
television or to a DVD player for quality
picture viewing.
Component
video cable
AUDIO (R) (L)
OUT (2)
Cormects your DTV Receiver to the right
and left audio inputs of your TV or VCR.
Audio
(RCA-type)
Dolby Digital
OUTPUT(Optical)
Connects your DTV Receiver to an A/V
receiver that has Digital AUDIO IN.
Optical cable
AC OUT
Connects your DTV Receiver to 120V AC
outlet.
AC
Down Converter
ON/OFF
ON: Converts high definition programs
for display on a standard TV.
OFF: Allows the DTV Receiver to display
high definition programs (as broadcast)
on an HD monitor.
N/A
18
