INSTALLATION INSTRUCTIONS Please follow these instructions to ensure the proper
operation of your T & D MACHINE PRODUCTS Viper V-10 Rocker Arm Assembly.

1. DETERMINE CORRECT STAND HEIGHT

Install the rocker stands on the cylinder head using the 3/8-16, attaching bolts. The
stands should be placed on the head so that the stamped letters face the valve stem.
Remove a rocker arm from one of the shafts and place that shaft on a stand. Take the

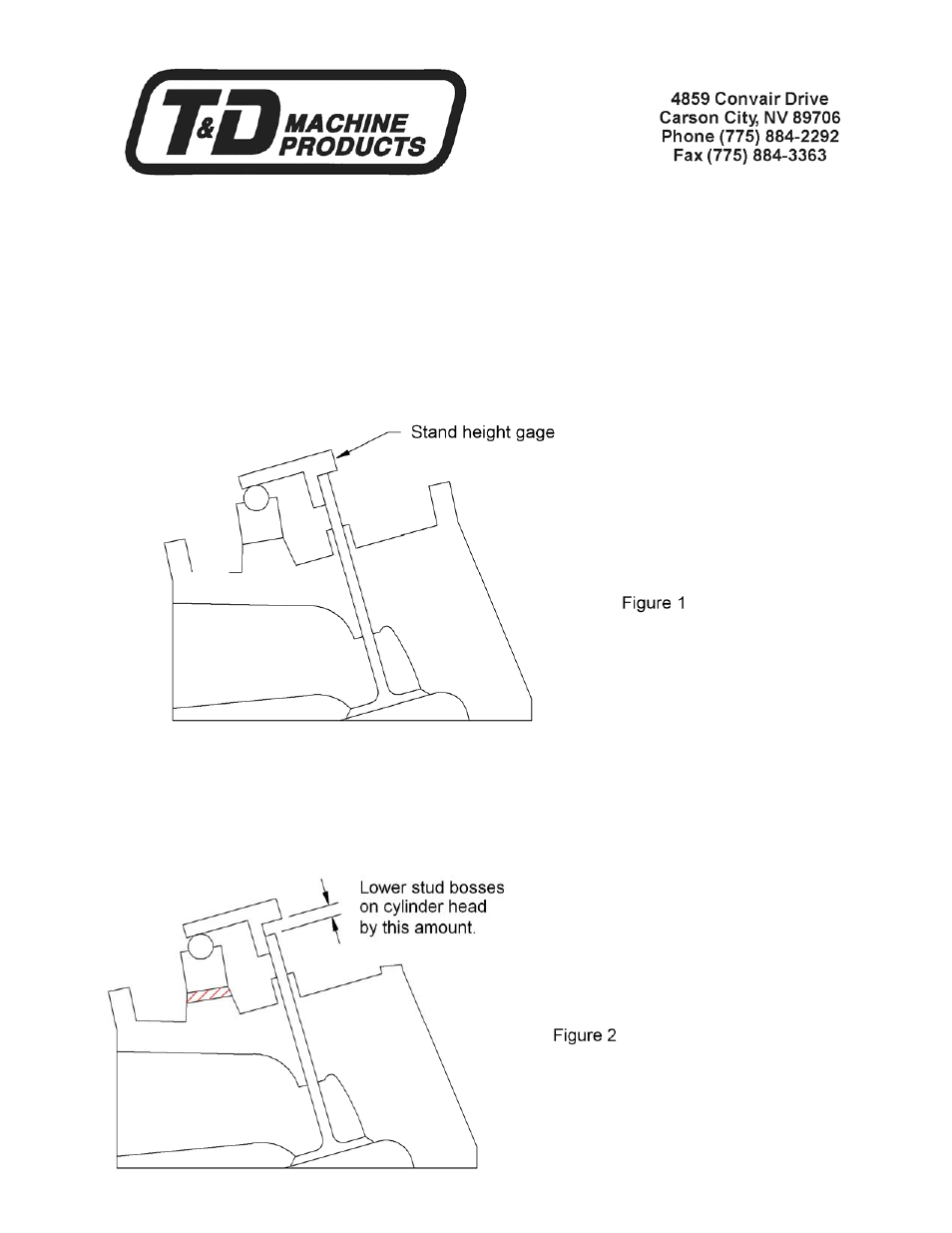

shaft height gage supplied with the kit and place it on the valve stem as shown in Figure1.


The gage should contact the top of the valve and the rocker shaft as shown in Figure 1.

If the gage contacts the shaft before touching the top of the valve stem, as shown in
Figure 2, remove a corresponding amount of material from the stud bosses on the cylinder
head. This will lower the rocker stand on the cylinder head.

P/N 05976
