Securing the MM27 to the stand Horizontal.
CAUTION: Some MM27s came with M8 mounting inserts. Sound Anchors supplies both
5/16-18 and M8 bolts. Test fit to see which inserts your speaker has by inserting a 5/16 bolt
with only your fingers (no tools). When screwed all the way in there needs to be less than
1/2” between the bolt head and the back of the speaker. If the 5/16 bolt does not thread in
easily try an M8 bolt. If there is not less than 1/2” between the bolt head and the back of
the speaker you will need shorter bolts. Shorter bolts can be purchased from a good hard-
ware store or you can contact Sound Anchors. In any case if the bolts do not thread in eas-
ily without tools do not force them. Your speakers may be damaged.

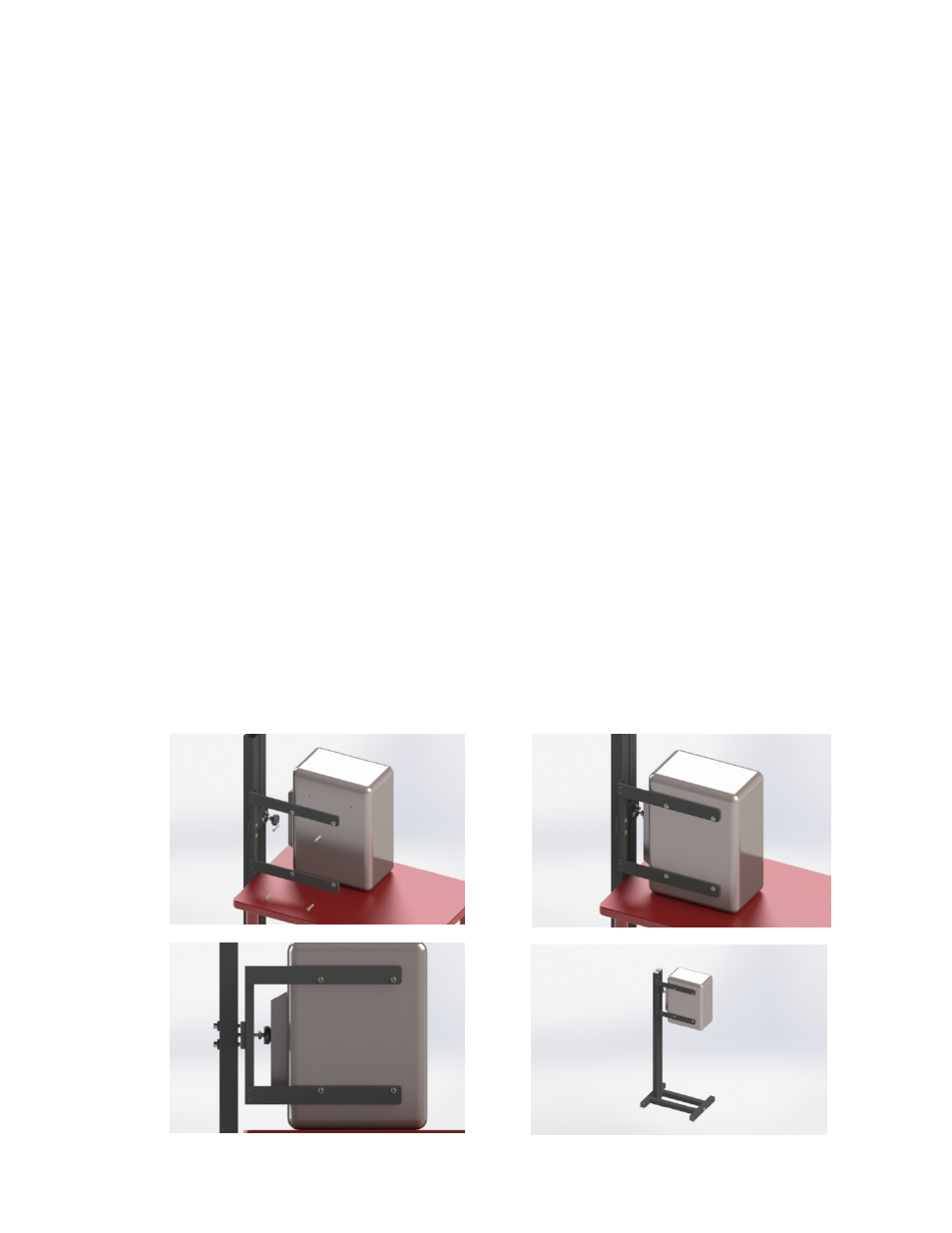

VERTICAL SET-UP
1. Remove the handles from the speaker. It is actually only necessary to remove the han-
dles from one side but we like the looks better when all handles removed.
2. Our preferred method requires a small table we have found this to be she easiest and
safest method for setting up vertical assembly.
3. Line up your speaker and mount assembly so that the inserts that were previously
used to fasten handles to the speaker line up with the holes in the speaker mount.
4. See the above caution.
5. Fasten the speaker to the stand using 4 ea. of the appropriate 5/16-18 or M8 bolts with
flat washers. Finger tighten only.
6. Tighten the flathead screws that fasten the mounting bars to the mounting tubes.
7. Tighten the speaker mounting screws. Do not over tighten them as this could damage
the speaker.
8. Adjust the leveling pad so that it just touches the speaker then tighten 1/4-1/2 turn by
hand an lock down the jam nut.
9. Remove the table.
