6 Azur FM/AM tuner
AC Power Socket
Once all connections have been made, plug the AC power cable into an
appropriate mains socket. Your 340T is now ready for use.
Audio Output
Connect to your amplifier using RCA /phono cables.
Control Bus
The Control Bus carries control information, in the form of demodulated
remote control signals, between the tuner and other Cambridge Audio
devices connected to it. The 340T will respond to appropriate commands,
as well as generating specific amplifier On/Off commands according to
the tuner’s Alarm and Sleep functions.
Audio
Output
Manufactured in an ISO9002 approved facility
This device complies with part 15 of FCC rules
FM 75 Ω
FM 75 Ω
AM 300 Ω
AM 300 Ω
Control Bus
Control Bus
Audio
Output
L
R
L
R
In
Out
In
Out
Power Rating: 230V AC 50Hz
Risk of electric shock
Do not open Caution
Risque de choc electrique
Ne pas ouvrir Avis
Vorm offnen des gerates
Netzstecker ziehen Achtung
azur 340T FM/AM Tuner
Max Power Consumption : 7W
Designed in London, England
www.cambridge-audio.com

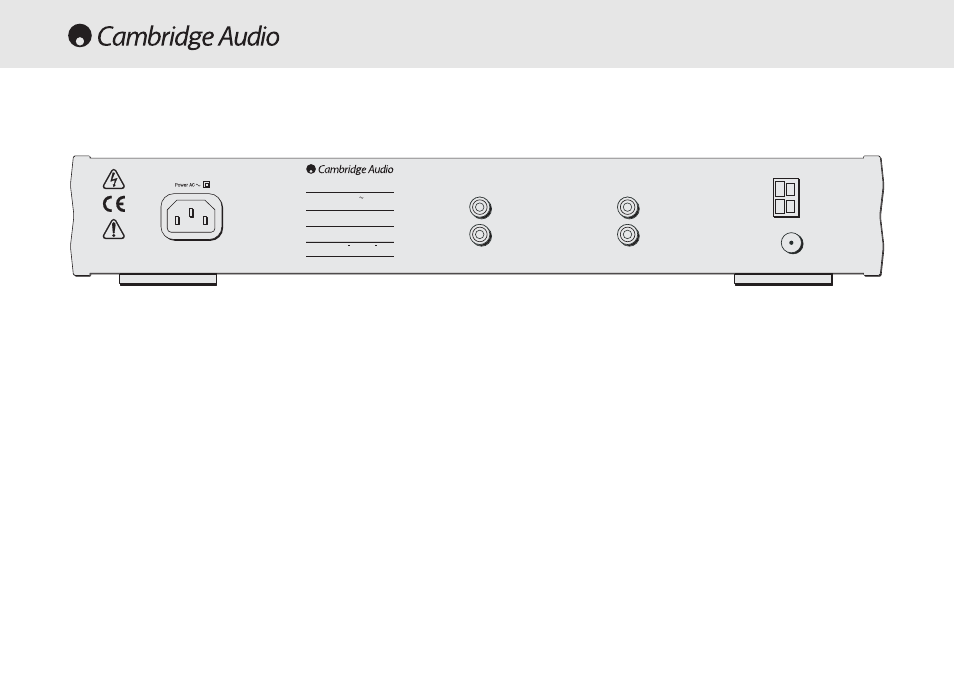

REAR PANEL CONNECTIONS
FM Aerial
Connect an aerial to the FM 75 ohm socket (a simple wire aerial is
supplied for temporary use). Extend the lead and move the aerial around
until you get the best reception.
For continued use, we strongly recommened using a 75 ohm outdoor
FM aerial.
AM Loop Aerial
Please note the supplied antenna wire is supplied for temporary indoor
use only. Connect each end of the single length antenna to the antenna
terminals. Place the antenna as far from the main system as possible to
prevent unwanted noise and to obtain optimum reception.
If the AM loop aerial provided does not receive sufficient reception, it
may be necessary to use an outdoor AM aerial.
