CAMERA PRORITY: User can choose “NO PRIORITY” ( 4 trigger wires have same priority;or
“CAM1” ( trigger wire for CAM1 has highest priority , when it is using , the other 3 trigger wire
don’t function )
VCR OUT (assistant video output connector to connect DVR or other monitor )：User
can choose QUAD/CAM1/CAM2/CAM3/CAM4/None
POWER ON OUTPUT : user can choose no output
/quad/CAM1/CAM2/CAM3/CAM4/Splite1-2/Splite 3-4
If choose “no output” , means the quad box will on stand by mode ( power indicate
light show red) after get power supply , user must press “POWER” key to turn on the
monitor .

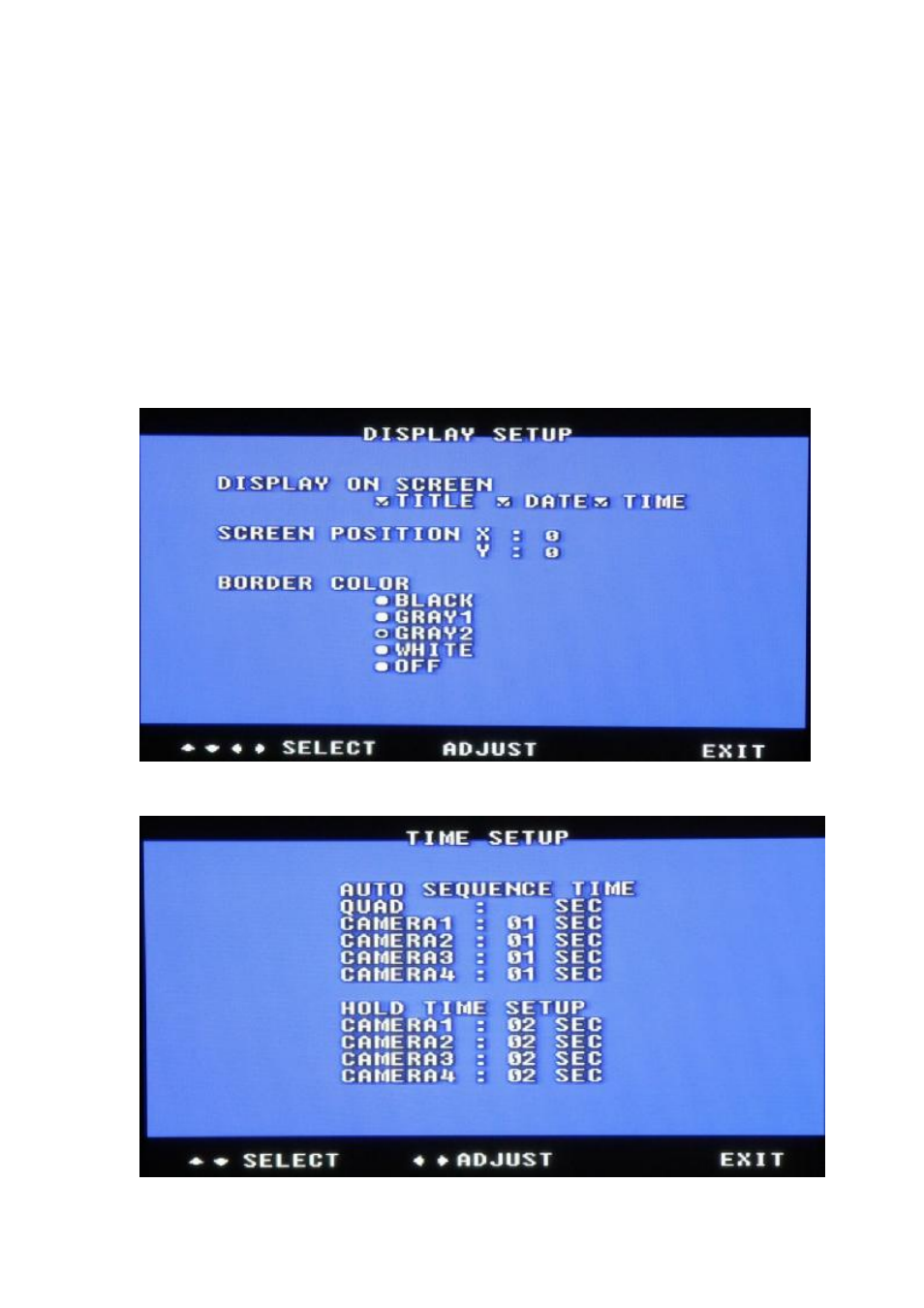

3\Enter the “DISPLAY SETUP” , the screen will show following picture
4\Enter the “TIME SETUP” , the screen will show following picture
