Rear View Safety
14

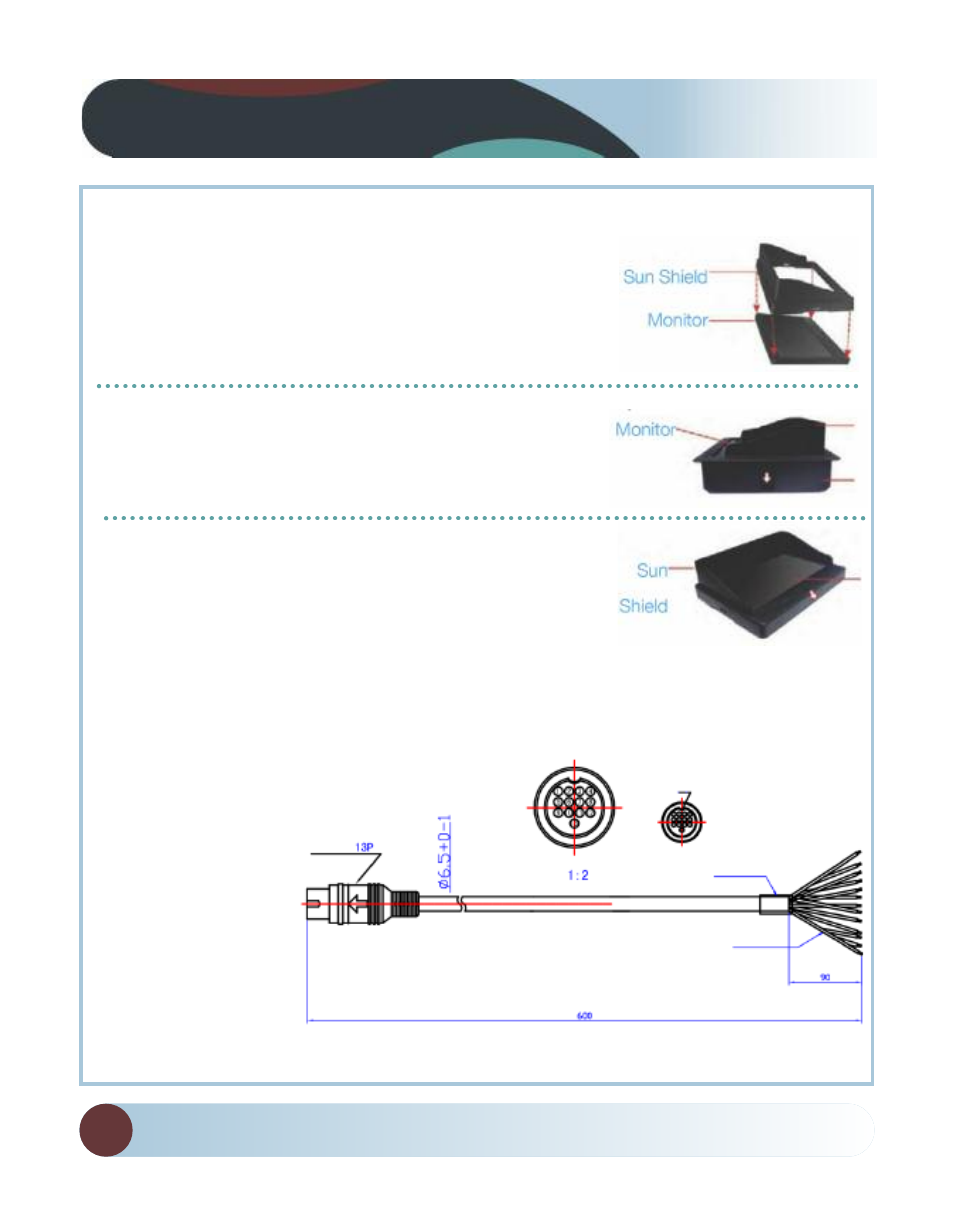

Splitting & Splicing
Installing sun shield: Put shade cover on
the display. Installing back cover: Put the
monitor with shade cover in the back cover
(only for embedded monitor)
Splitting back cover: Hold monitor with 2
hands and detach with fingers, as indicated
by arrows. (only for embedded monitor)
Splitting sun shield: Take the monitor with
the left hand and detach with right hand as
indicated by the white arrow. (see below)
1. Red (-12-24V)
2. Green (video back)
3. Blue (trigger back)
4. Brown (trigger right)
5. Yellow (trigger left)
6. White (audio)
7. Light blue (video front)
8. Gray (video right)
9. Pink (12V)
10. Purple (Audio out)
11. Black (GND)
12. Green (Video out)
13. Orange (left)
