3. Make sure the battery terminals are clean. Wire brush
them if necessary. Clamp the black load lead to the vehicle
negative battery terminal. Clamp the red load lead to the
vehicle positive battery terminal. Place the clamp on the
terminal.
4. Paper load: Open the clear cover. Insert paper to the
paper feeding for auto running the paper into printer.

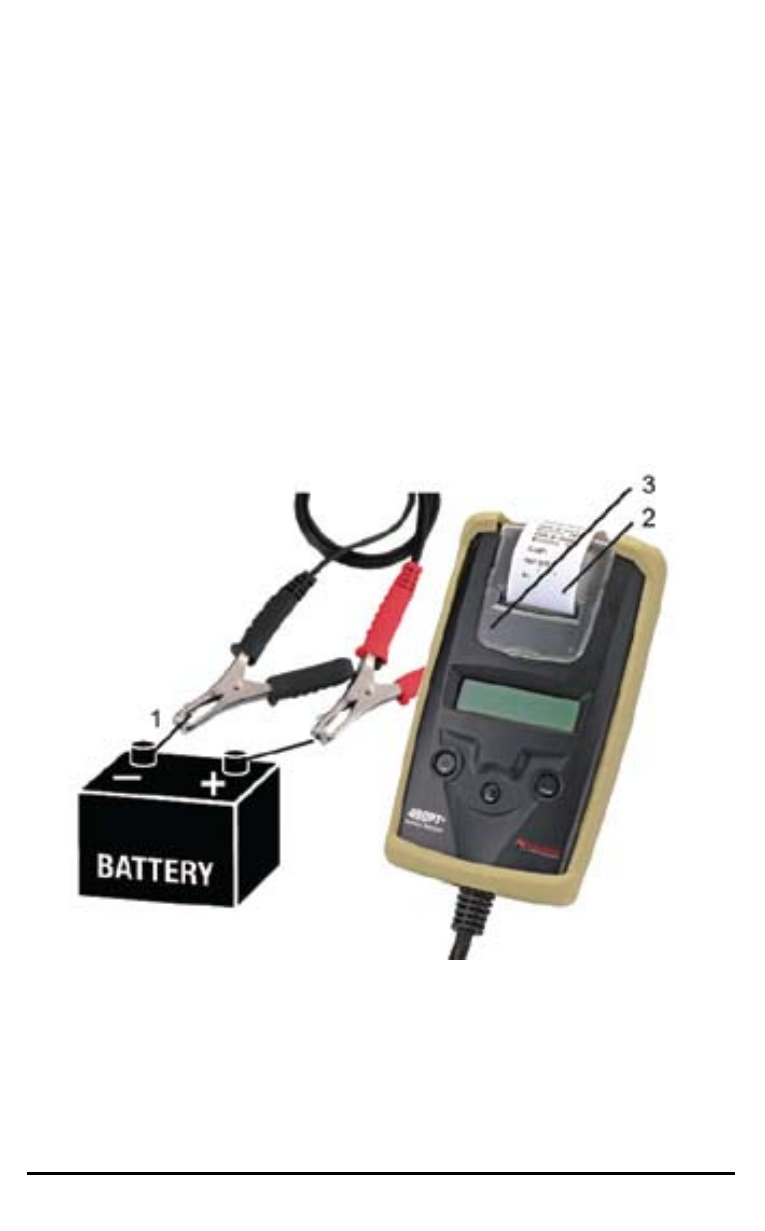

STEP 1: Connect the clamps to the tested battery.
STEP 2: Open the clear cover
STEP 3: Insert the paper roll 57MM(W)X30M(L) Part
No. 350B701000 into the paper feeding.
HOW TO REPLACE A PAPER JAM
STEP 1: Open the clear cover
STEP 2: Pull the paper slowly and straightly from the paper
roll in the chamber
