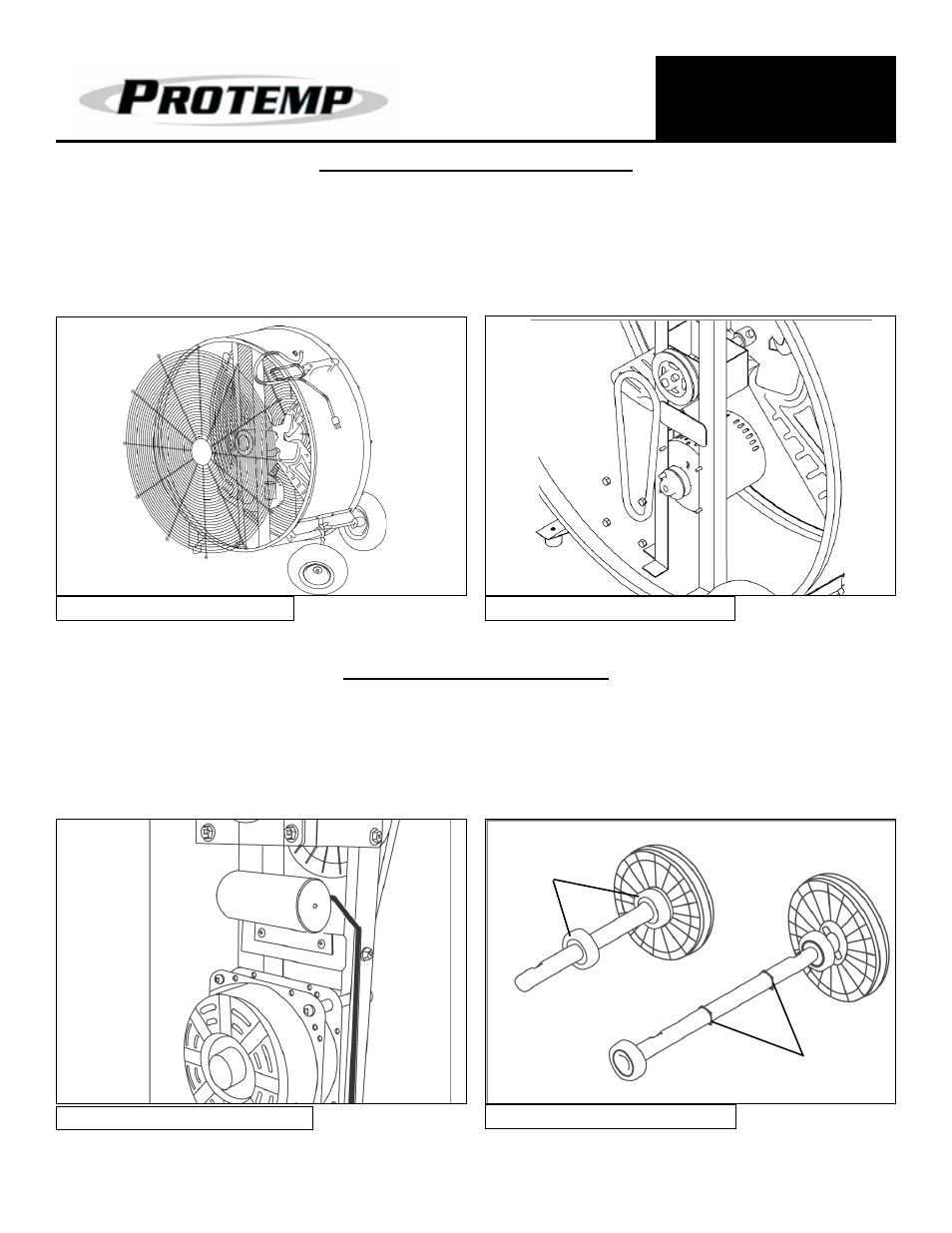

figure 4: Capacitor Assembly figure 5: Fan Shaft Assembly
Bearing E-clips
Bearings
© 2013, Pinnacle Products International, Inc. 4 Portable Air Circulator User’s Manual
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
1. Inspect your fan before each use. Check all wires and
extension cords, following the procedure outlined on
Page 2 (Safety Information).
2. After use, always be sure fan’s Power Switch is in the
OFF position before unplugging. Use cord wrap (see
page 6 Item #7) to keep cord off the ground when
transporting fan.
Maintenance and Storage
1. Remove screws from Rear Guard and tilt wheel
(figure 2).
2. Loosen motor nuts, and motor safeguards (located
above and below motor).
3. Remove belt to replace, or adjust motor to tighten belt
(figure 3).
figure 2: Removing Guard figure 3: Adjusting Fan Belt
Belt Tightening / Replacement
