NEVER LEAVE HEATER UNATTENDED WHILE
CONNECTED TO A POWER SOURCE
© 2014, Pinnacle Products International, Inc. Turbo Electric Fan Heater User’s Manual
®

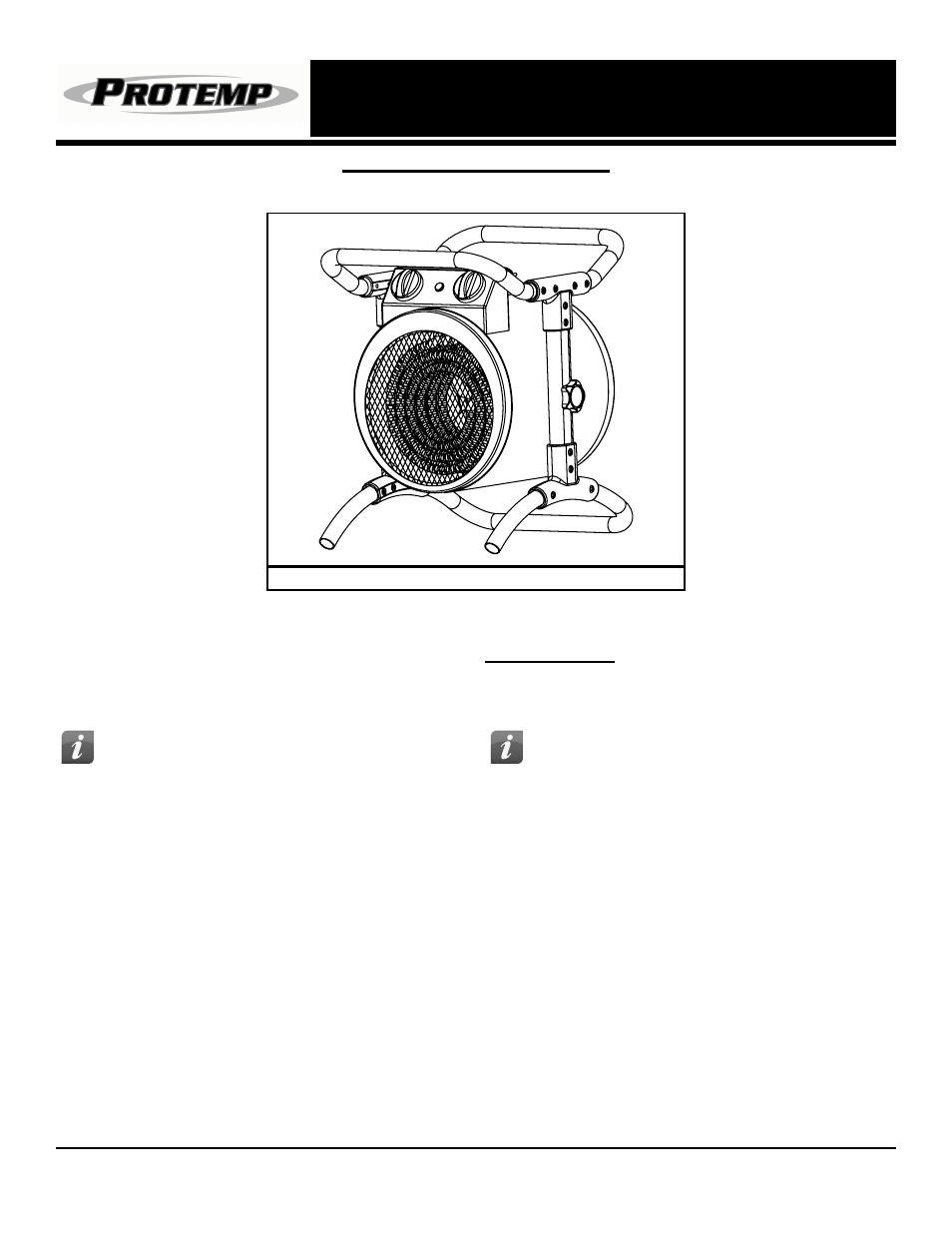

Assembly Instructions
1. Align holes in heater leg frame with lower
inner bracket.
2. Attach lower outer bracket to lower inner
bracket using screws.
3. Align lower inner bracket with side support.
4. Attach side supports to heater using tilt
adjustment knob.
5. Slide side supports into upper brackets, align
holes and insert screws to tighten.
6. Slide upper handle brackets onto front
handle, align holes and insert screws to
tighten.
7. Slide rear handle into upper handle brackets,
align holes and insert screws to tighten.
– Remove heater and all packaging materials
from the shipping carton.
Tools Needed:
– Phillips Head screw driver.
– 7 mm open end wrench.
Tip: Be sure to remove the handles and side
supports from the Styrofoam packaging
Tip: Use a power screwdriver and
locking wrench for easier assembly.
6
