Connecting amplifier and speakers
The output terminals accept loudspeaker cables terminated with 4mm  Banana plugs, spades connectors
or naked wire.
Connect the cable terminals on the amplifier to the terminals on the speakers.
!
The red speaker terminals carry the positive signal (+), the black speaker terminals the negative
signal (–). Make sure the polarity of the connection is correct at each end of the cables.
Only connect one loudspeaker with an impedance not less than 4 ohms per channel.
Record output, connecting a headphone amplifier - Stereo Box S
Record Out connects an analogue record device ore a Pro-Ject Head Box headphone amplifier.
Record Out provides a fixed output level.

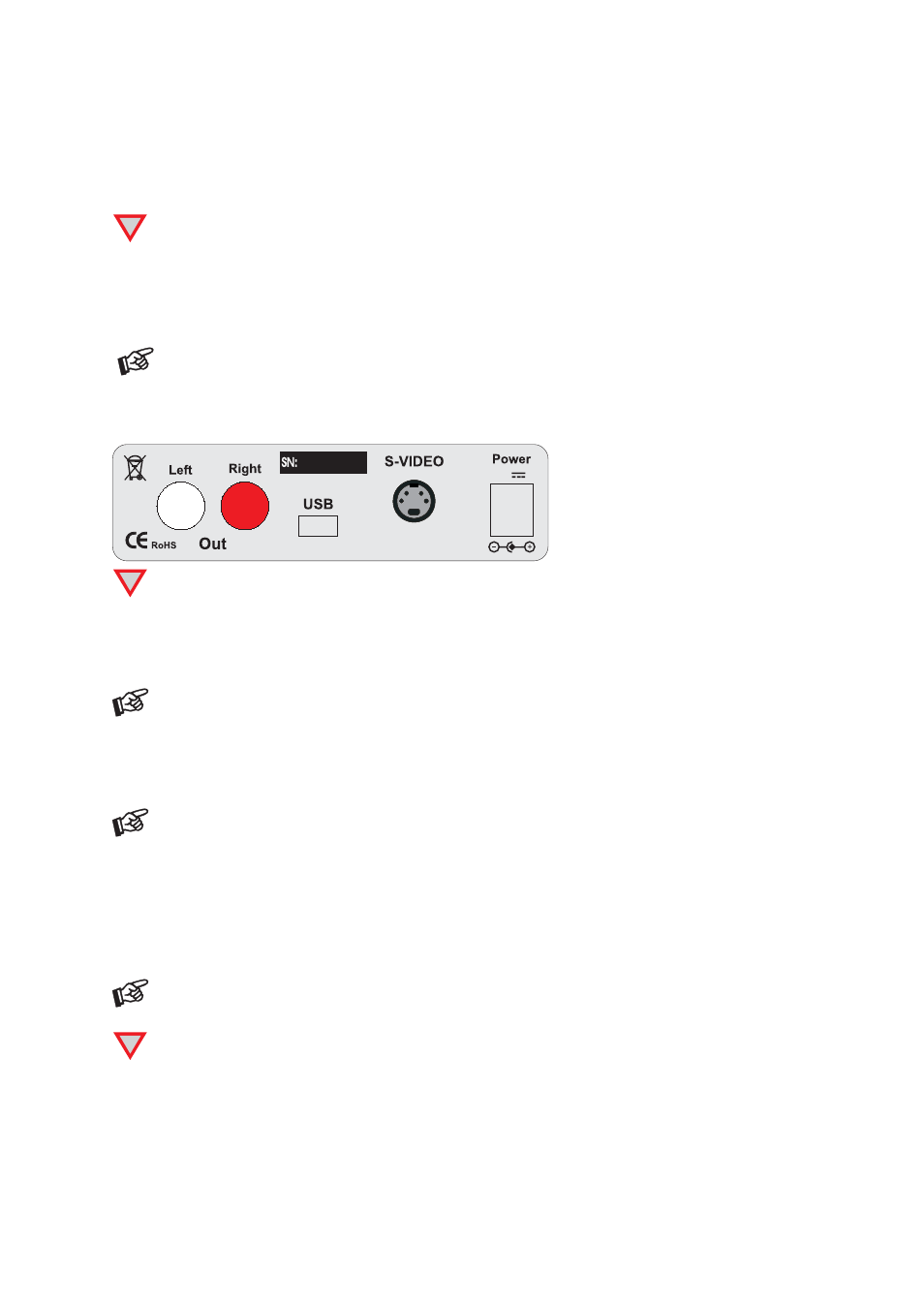

Connectors - Dock Box S Fi
Pro-Ject Audio Systems, Vienna, Austria
18V
!
Make all connections whilst the Dock Box is disconnected from the power supply.
Connecting to a computer, iPod ® operating system
Connect the USB-output of the Dock Box to a free USB-socket on your computer and switch it on.
When the Dock Box is connected to a computer, all functions of the Dock Box are blocked.
Connection to a TV-set or a beamer
Connect the S-VIDEO socket to a s-video input of your TV-set or beamer.
„All digital“ units do not support the s-video output.
Fitting and adjustment of the iPod ® cradle
Use the knurled screw supplied to fix the cradle to the Dock Box chassis. Do not fully tighten the screw yet.
Now place your iPod
® on the Dock Box contacts. Move the cradle so that it supports the iPod ® and tighten
the screw.
This device is suitable for iPods ® /iPhones ® with 30-pole connector only.
To connect units with a lightning-connector, such as iPod ® Nano 7. generation or iPod ® Touch 5,
a lightning-adapter (lightning connector  30-pole connector) is needed.
!
Use without the cradle will eventually break the 30-pole connector of the Dock Box and the socket of
the iPod ® . Before connecting the iPod ® , any sort of cover has to be removed.
