5. Installation and Preparation
5.1 Wheel Installation
1. Insert wheel bracket into fork lift channels.
2. Align holes and attach 1/4" bolt.
3. Repeat for all four wheels.
Warning!
PolarCool Appliance Is Heavy!
When Installing Wheels, Provide Adequate Support To Maintain Balance Of Appliance!
Bolt Access Holes
Nylon-Insert Nuts
Swivel Wheels
w/Lock
Carriage Bolts
Rigid Wheels
w/o Lock

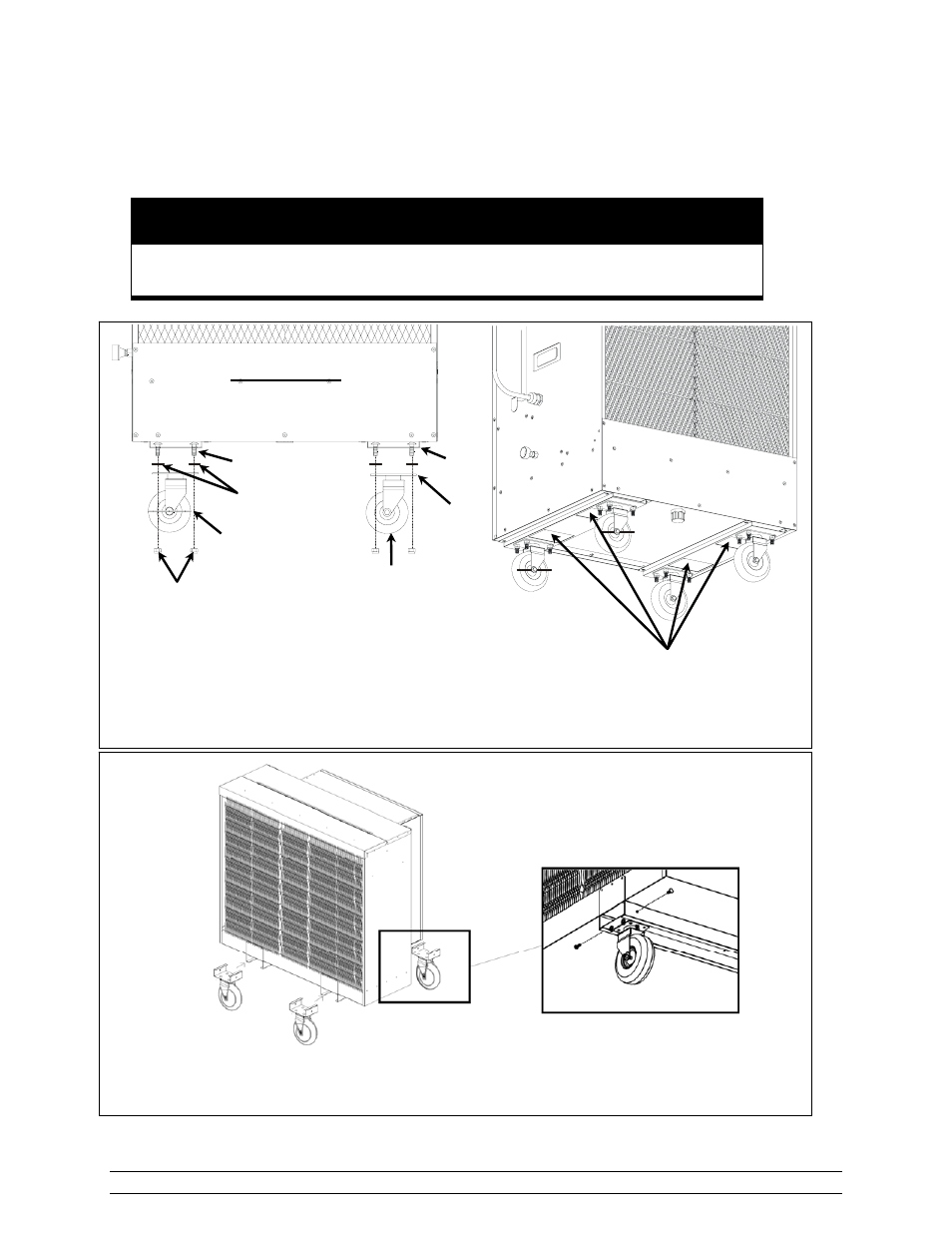

18 inch PolarCool Caster Installation
1. Place wheel bracket against the caster support channel
with the 5/16 washers in between as shown above.
2. Align holes and attach 5/16-18 x 3/4” carriage bolts,
5/16 washers, and 5/16-18 nylon-insert nuts as shown
above.
3. Repeat for all four casters.
Washers
24, 36, & 48 inch PolarCool
Caster Installation
IMPORTANT!
Ensure the washers are placed between
the wheel bracket and the wheel channel.
Caster
Support
Channel
Caster
Bracket
